Digital Temperature Controllers E5AZ/E5EZ/E5CZ 21
Specification Setting after Turning ON Power

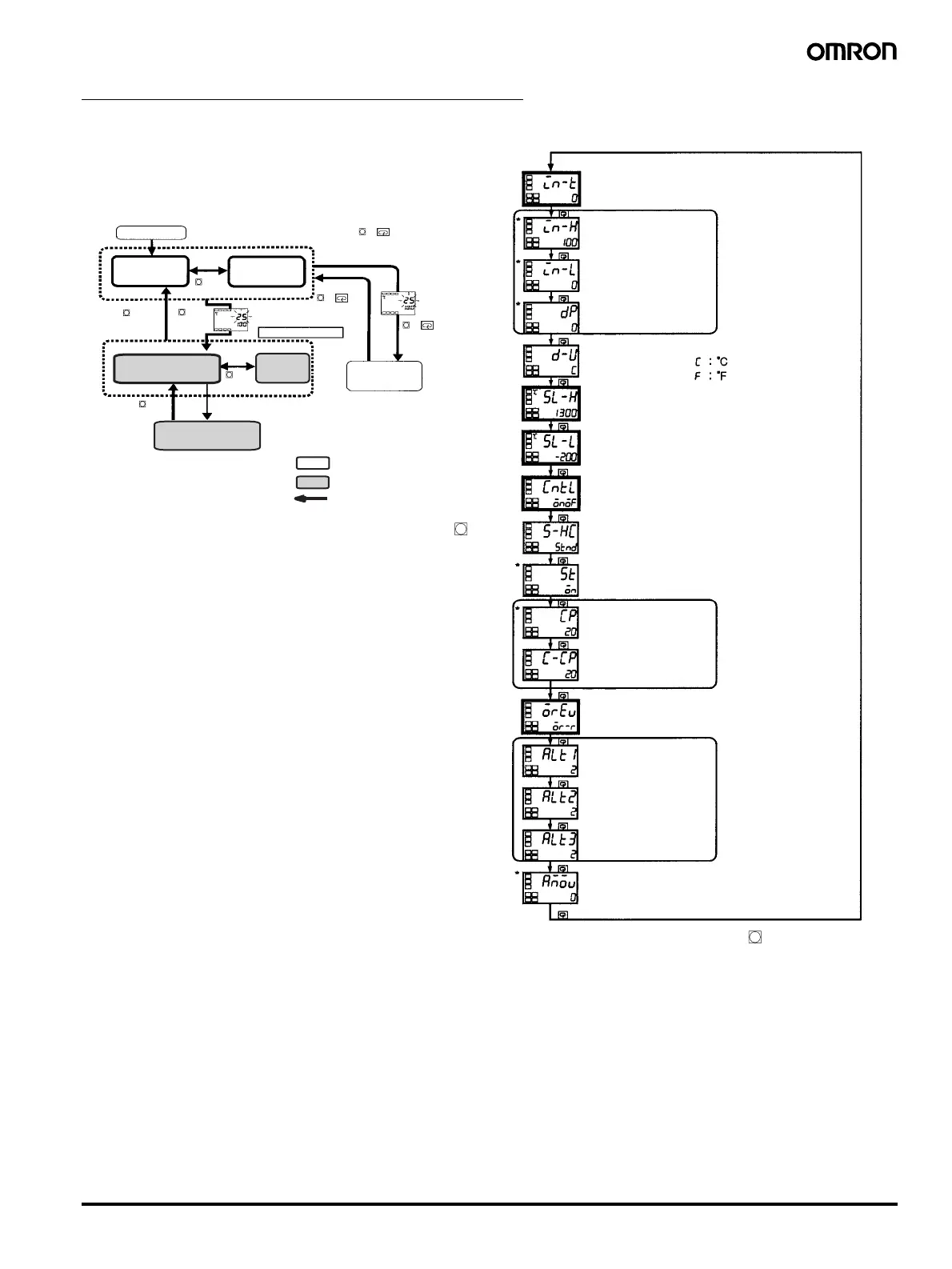

Initial Setting Level
This level is used for setting basic specifications of the Temperature
Controller. Using this level, set the input type for selecting the input to
be connected such as the thermocouple or platinum resistance ther-
mometer and set the range of set point and the alarm mode.
The move from the operation level to the initial setting level, press
key for three seconds or more.
The initial setting level is not displayed when “initial/communications
protection” is set to “2.” This initial setting level can be used when
“initial setting/communications protection” is set to “0” or “1.”
The “scaling upper limit,” “scaling lower limit,” and “decimal point”
parameters are displayed when an analog voltage input is selected
as the input type.
To return to the operation level, press the key for longer than one
second.
*
Not displayed as default setting.
Power ON
Operation level
Adjustment level
Less than 1 second
1 second min.
Less than 1 second
Control stops.
1 second min.
Protect level
key
+
1 second min.
key
key
key
key
key
key
+
key
+
Control in progress
Control stopped
Level change
3 seconds
min.
Initial setting
level
Communica-
tions setting
level
Password input
set value "−169"
Advanced function
setting level
Display flashes
when key pressed.
3 seconds
min.
The time taken to move
to the protect level can
be adjusted by changing
the "Move to protect lev-
el time" setting.
Initial setting level
Input type
Scaling upper limit
Scaling lower limit
Decimal point
SP upper limit
SP lower limit
PID ON/OFF
ST
Control period (heating)
Control period (cooling)
Direct/reverse operation
Alarm 1 type
Alarm 2 type
(PID control)
Set the pulse output
cycle.
(Displayed when initial setting/communications protection
is set to 0.)
For analog input
Temperature
unit
Standard or heating/
cooling
Alarm output type
(PID control)
(Heating/cooling setting)
Alarm 3 type
Select the alarm mode.
(Models with alarm
function)
Move to advanced
function setting level
