Omron E5EN User Manual

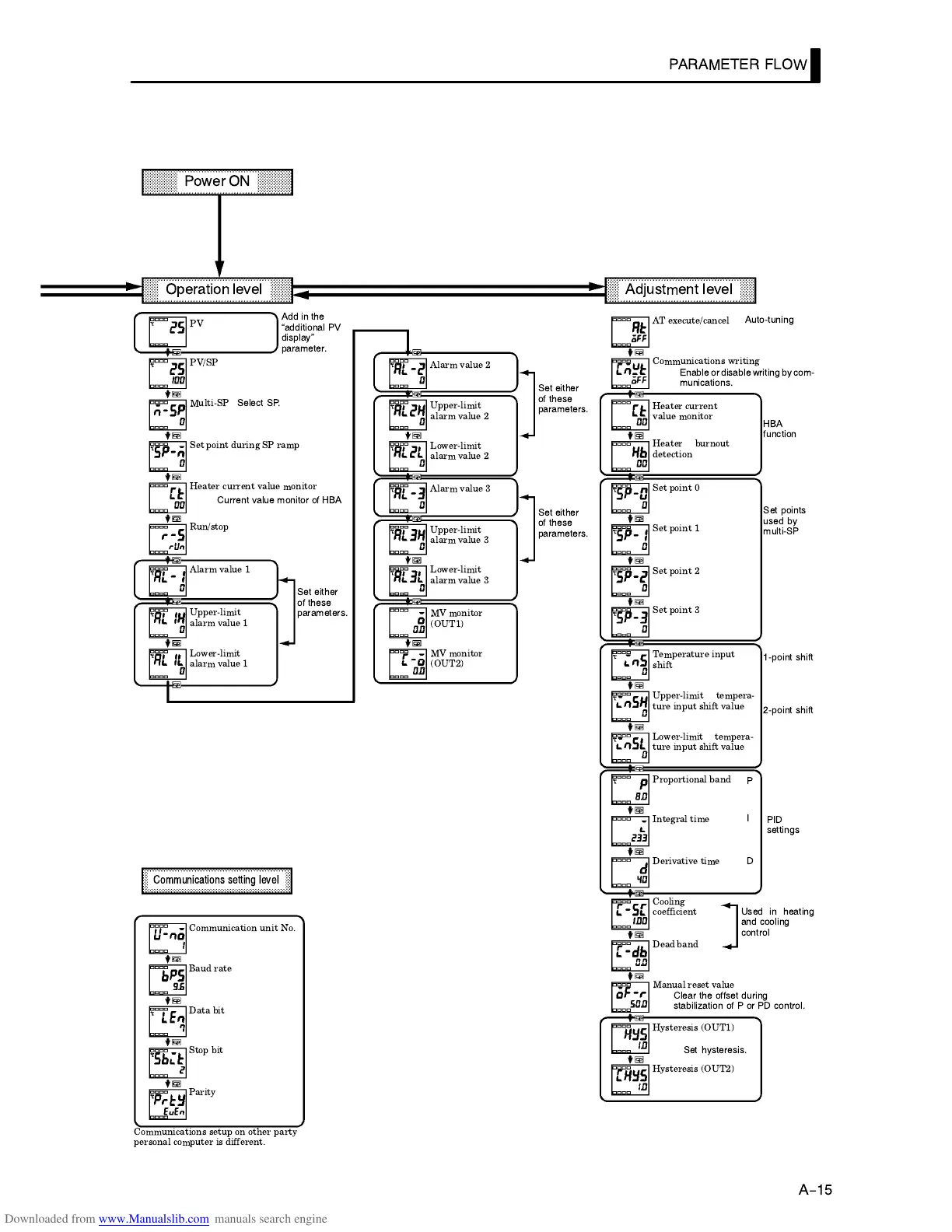

PARAMETER FLOW
A-15
Operation level
PV
PV/SP
Add in the
additional PV
display"
parameter.
MultiĆSP
Set point during SP ramp
Heater current value monitor
Run/stop
Alarm value 1
UpperĆlimit
alarm value 1
LowerĆlimit
alarm value 1
Set either
of these
parameters.
Alarm value 2
UpperĆlimit
alarm value 2
LowerĆlimit
alarm value 2
Set either
of these
parameters.
MV monitor
(OUT1)
MV monitor
(OUT2)
Current value monitor of HBA
Select SP.
Set either
of these
parameters.
Alarm value 3
UpperĆlimit
alarm value 3
LowerĆlimit
alarm value 3
Communications setting level
Communication unit No.
Communications setup on other party
personal computer is different.
Parity
Baud rate
Data bit
Stop bit
Hysteresis (OUT1)
Adjustment level
AT execute/cancel
Communications writing
Heater current
value monitor
HBA
function
Set point 1
Set points
used by
multiĆSP
Temperature input
shift
1Ćpoint shift
2Ćpoint shift
Proportional band
PID
settings
Cooling
coefficient
Dead band
Used in heating
and cooling
control
Manual reset value
AutoĆtuning
Enable or disable writing by comĆ
munications.
Heater burnout
detection
LowerĆlimit temperaĆ
ture input shift value
UpperĆlimit temperaĆ
ture input shift value
Derivative time
Integral time
Clear the offset during
stabilization of P or PD control.
Set hysteresis.
P
I
D
Hysteresis (OUT2)
Set point 0
Set point 3
Set point 2
Power ON
