Overview of System Startup Procedure Section 2-1
The Edit Connection Dialog Box will not be closed. If no further connec-
tions are to be set, click the Close Button.
The connection will appear in the list of registered devices.

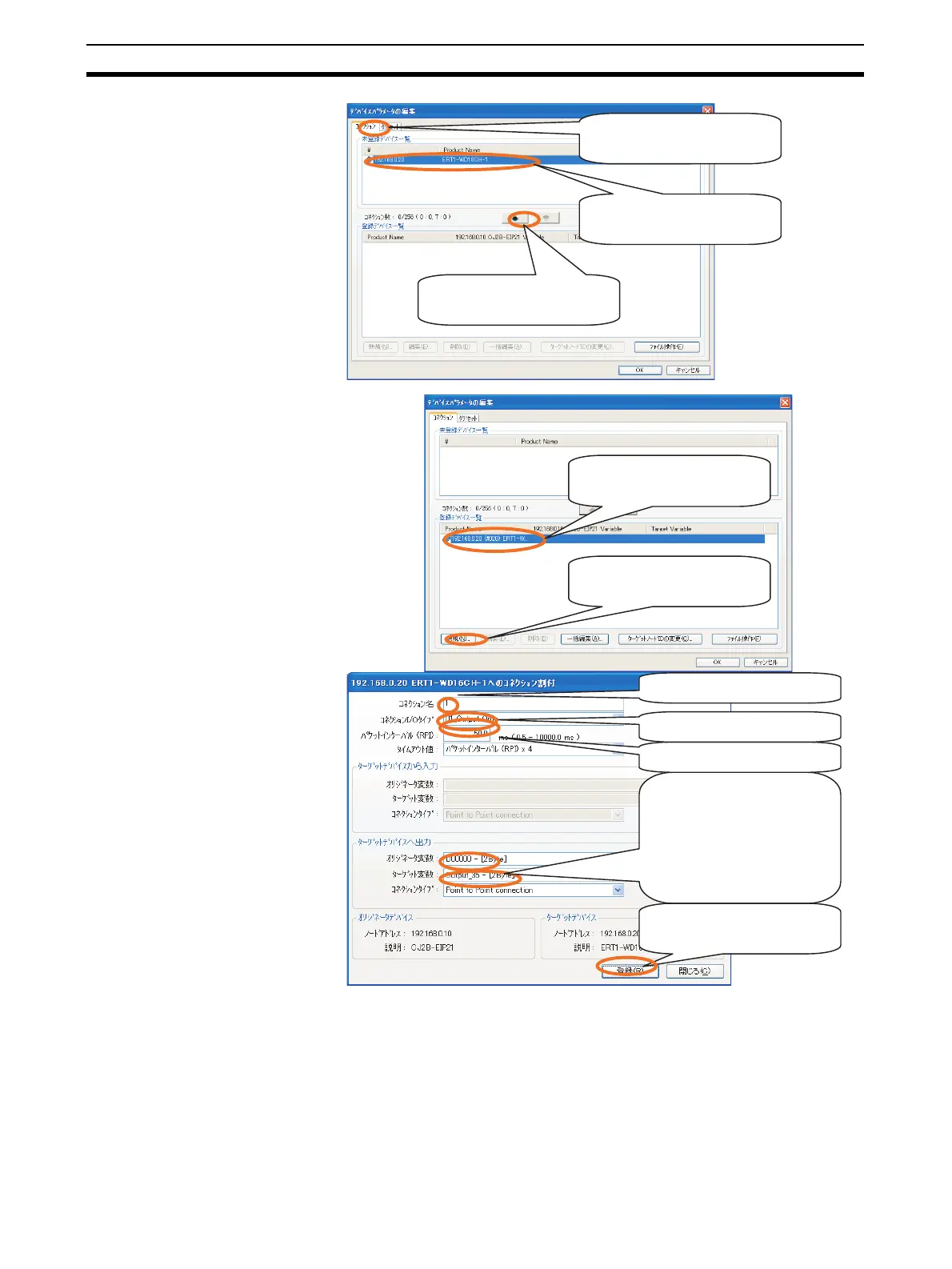

1. Click the Connections Tab.
2. Select the device to which a link
is to be established.
3. Click this button to register the
device to which a link is to be
established.
1. The ERT1-WD16CH-1 has been
registered as the device to which
a link is established.
2. Click the New Button to create
the connection.
1. Input a name for the connection.
2. Select 01_Output Only.
3. Input the RPI.
4. Select the consume and
produce variables. Select
Output_35 as the produce
variable. Make sure that the
sizes of the variables are the
same.
5. Click the Register Button to
register the connection.
