Omron ERT1 Series User Manual

46
Screw-less Clamp Terminals Section 4-2

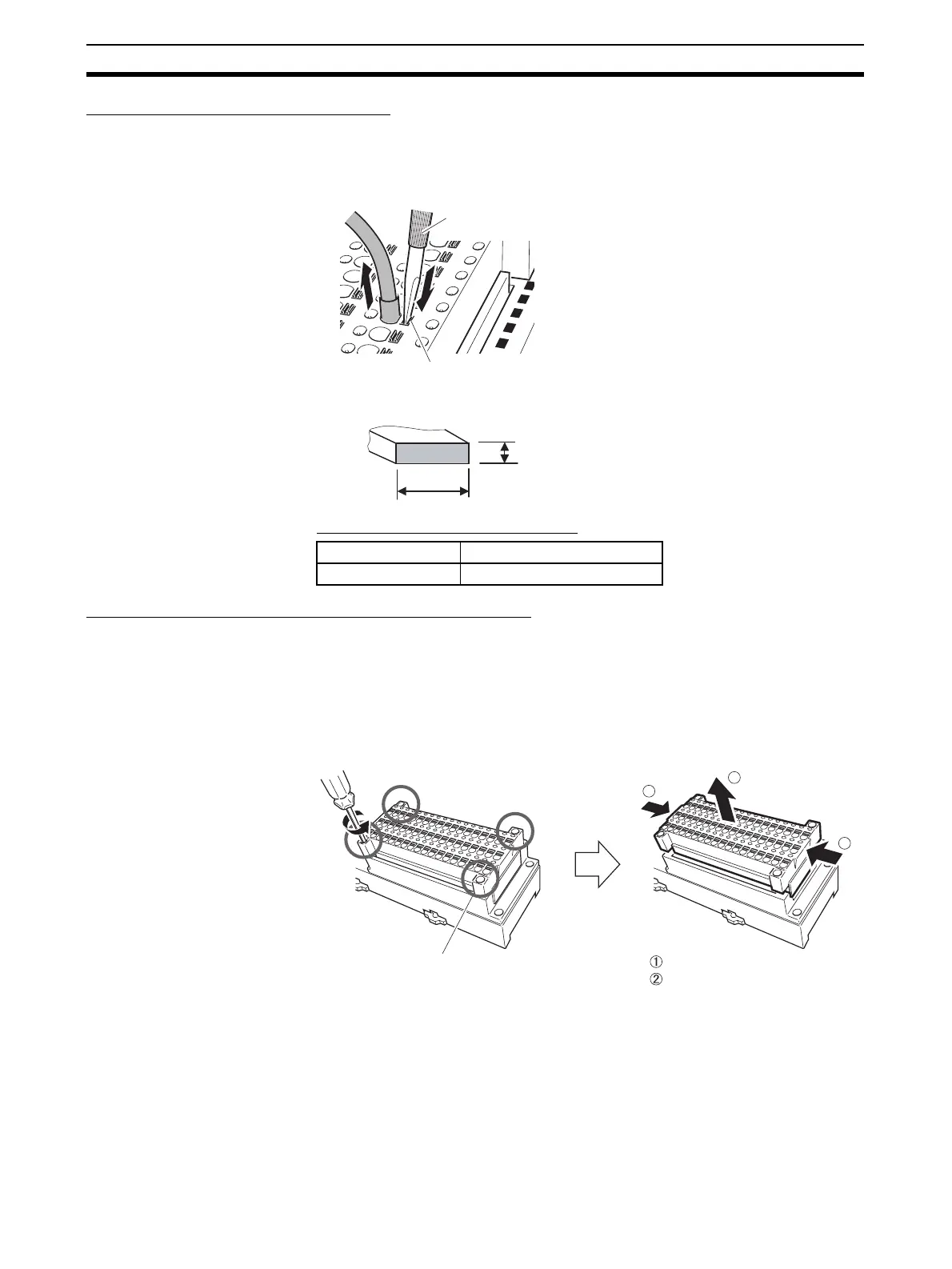

Wiring to a Clamp Terminal Block
Insertion Insert the ferrule all the way to the end in any terminal hole.
Removal Pull out the power line while pressing down with a small flat-blade screwdriver
on the release button above the terminal hole.
Screwdriver Used to
Remove Ferrules
You will need a screwdriver that is consistently thin for the entire length.
Recommended Screwdriver Model
Removing and Mounting a Clamp Terminal Block
Removal Use a flat-blade screwdriver to loosen the four screws on the top of the termi-
nal block, and then grasp the handles on both sides and remove the terminal
block.
Mounting Grasp the handles on both sides of the terminal block, and insert the terminal
block firmly in place. Then use a flat-blade screwdriver to tighten the four
screws on the top of the terminal block.
Note Tighten the screws to a torque of 0.2 to 0.25 N·m.
0
8
0
7
0
6
0
5
0
4
0
3
0
2
+
V
+
V
+
V
+
V
+
V
+
V
+
V
NC
4
3
2
1
Release button
Small flat-blade screwdrive
r
Model Manufacturer
SZF1 Phoenix Contact
0.5 mm max.
3.0 mm max.
1
2
1
Four 2.6 x 6 standard screws
Grasp handles on both sides.
Pull out the terminal block.
