4 Screen Creation
4-2
NB-series Programmable Terminals Startup Guide Manual(V109)
4-1 Starting NB-Designer
This section describes how to start NB-Designer.
NB-Designer is a programming tool (software) for creating screens displayed on the PT of NB Series.
Select [Program]-[OMRON]-[NB-Designer]-[NB-Designer] from the Windows Starting Menu to start NB-
Designer.
The startup can also be realized by clicking the shortcut icon on the desktop.
(Note: When using the NB-Designer on operating systems other than XP, run the NB-Designer as an
administrator.)

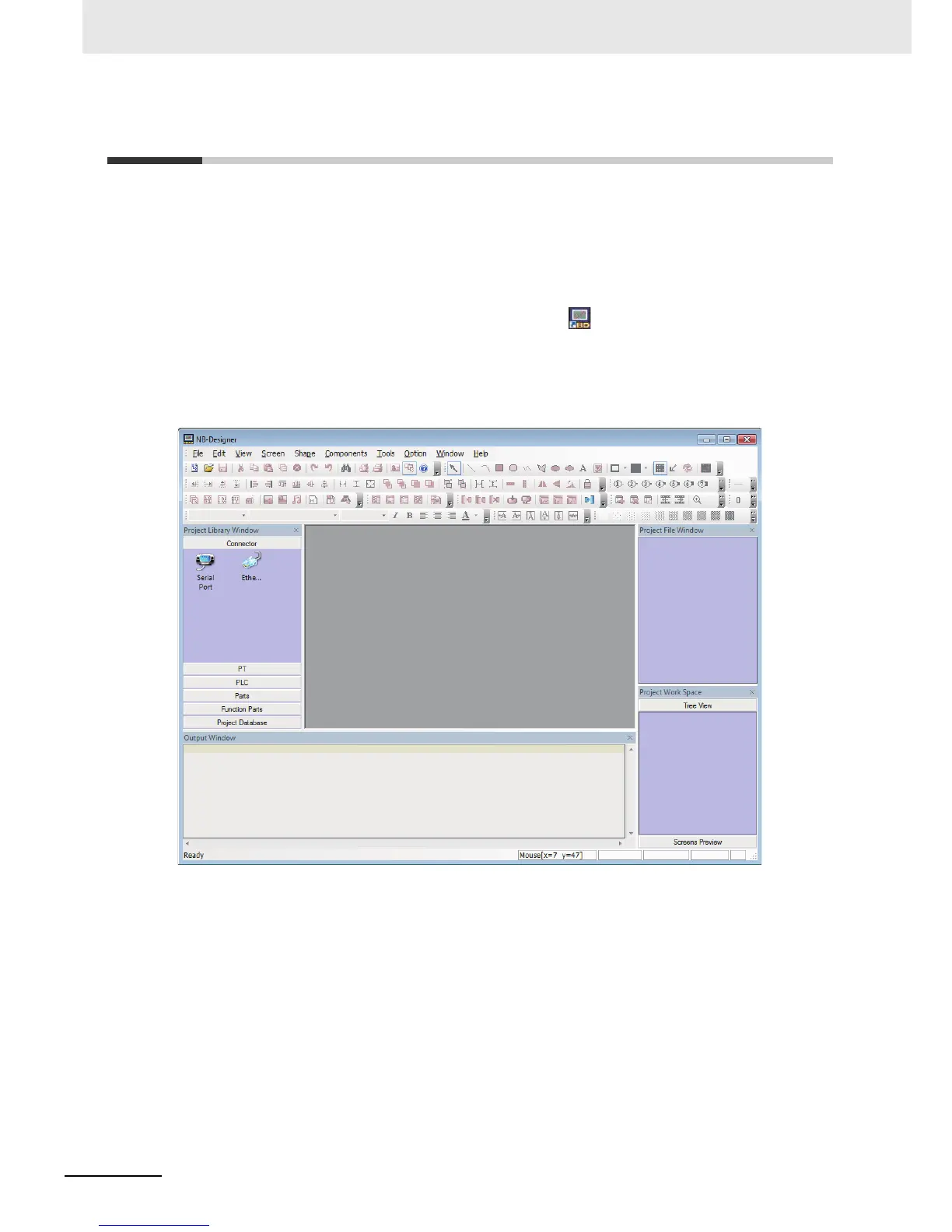

The main window will be displayed after starting NB-Designer completely.
Note Please refer to the NB-Designer Operation Manual for details of NB-Designer, such as the operating
environment, installation and operation.
To Next Page
