5 Run
5-2
NB-series Programmable Terminals Startup Guide Manual(V109)

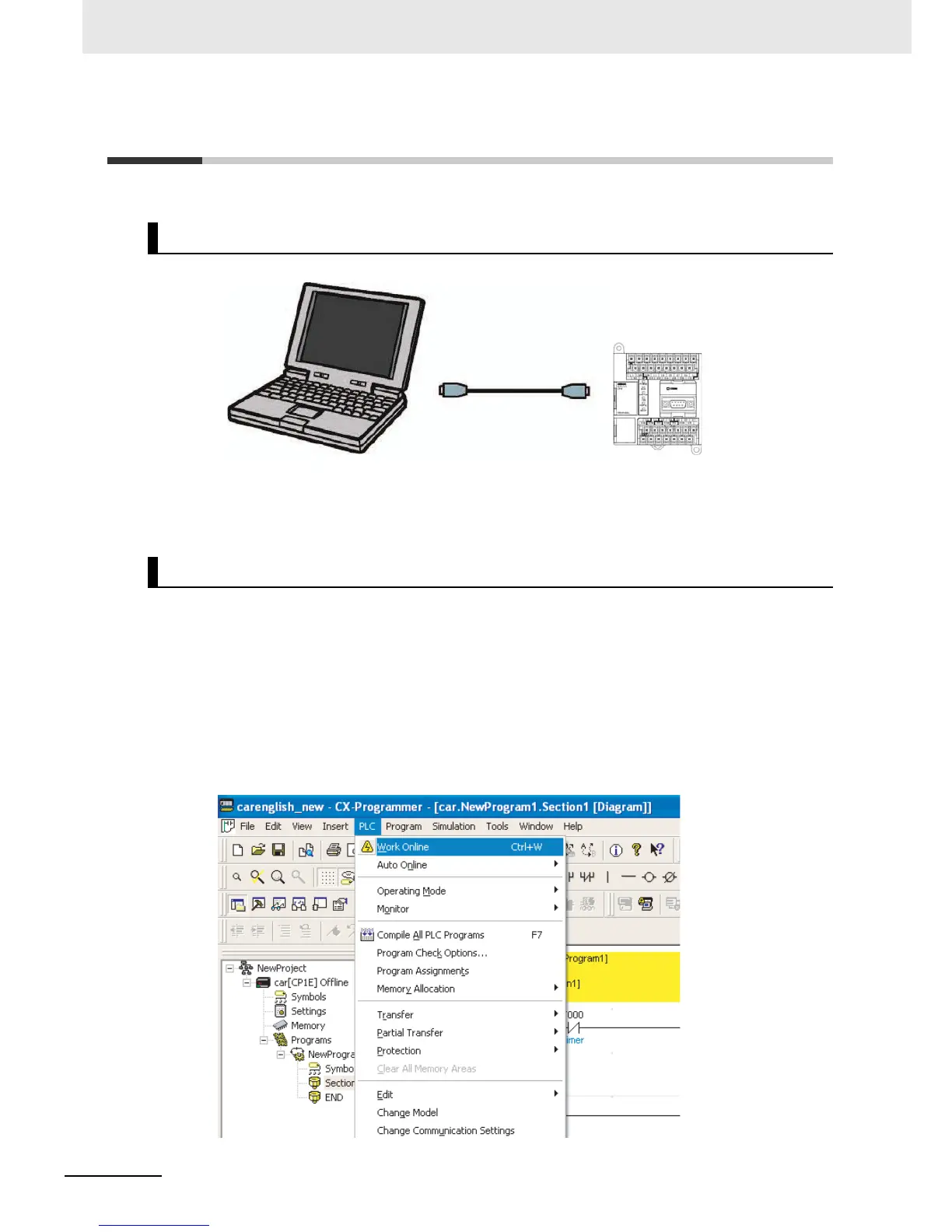

5-1 Preparations
This part describes how to start running at the Host side (CP1E) and tranfer screen data to NB7W.
Use a USB cable to connect CP1E and a PC.
a. PC b. USB Cable c. CP1E
Note USB driver is needed to be installed when CP1E is connected to a PC the first time. Refer to the SYSMAC
CP series CP1E CPU Unit Operation Manual for details on installing USB driver.
CX-Programmer is a programming tool [software] for creating ladder programs executed by CP1E.
Aside from the programming function, it also provides functions for setting and operating CP1E, such as
debugging program, indication of current values, monitoring function, PLC settings and remote pro-
gramming and monitoring through the internet, etc. Please refer to the SYSMAC CX-Programmer Oper-
ation Manual for details on CX-Programmer.
Run CP1E after sending programs to CP1E. Create CP1E programs using CX-Programmer.
1
Start CX-Programmer and open the created program.
2
Select [PLC]-[Work Online] from the main menu of CX-Programmer.
Connect CP1E and PC
Connect CP1E
To Next Page
