Appendices
A-54
NJ-series CPU Unit Hardware User’s Manual (W500)
The following patterns can be used to connect Basic I/O Units with Connectors to OMRON Connector-
Terminal Block Conversion Units and I/O Relay Terminals using OMRON Connecting Cables.
Connection Patterns for Connector-Terminal Block Conversion Units
A-2-4 Connecting Connector-Terminal Block Conversion Units and I/O
Relay Terminals

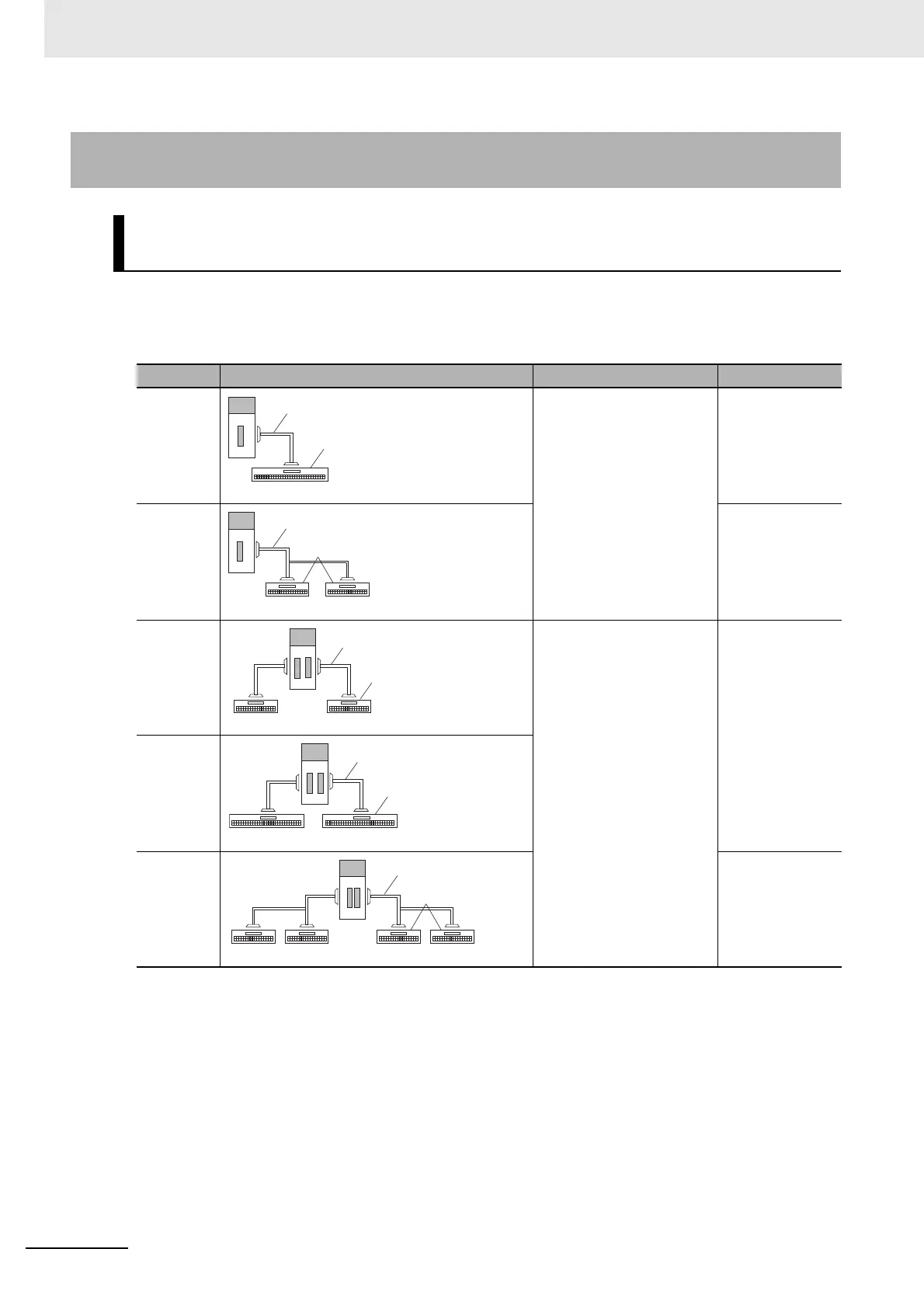

Patterns for Combining Connector-Terminal Block Conversion Units
and I/O Relay Terminals
Pattern Configuration Number of connectors Branching
A 1 None
B 2 branches
C 2 None
D
F 2 branches
Connecting Cable
Connector-Terminal
Block Conversion Unit
40 or 60 terminals
Connecting Cable with two branches
Connector-Terminal
Block Conversion Unit
20 terminals
20 terminals
Connecting Cable
Connector-Terminal
Block Conversion Unit
20 terminals
20 terminals
Connecting Cable
Connector-Terminal
Block Conversion Unit
40 or 60 terminals
40 or 60 terminals
Connecting Cable with two branches
Connector-Terminal
Block Conversion Unit
20 terminals
20 terminals
20 terminals
20 terminals
To Next Page
