Omron NX102 series Network Connection Guide

7．IO-Link Connection Procedure
14

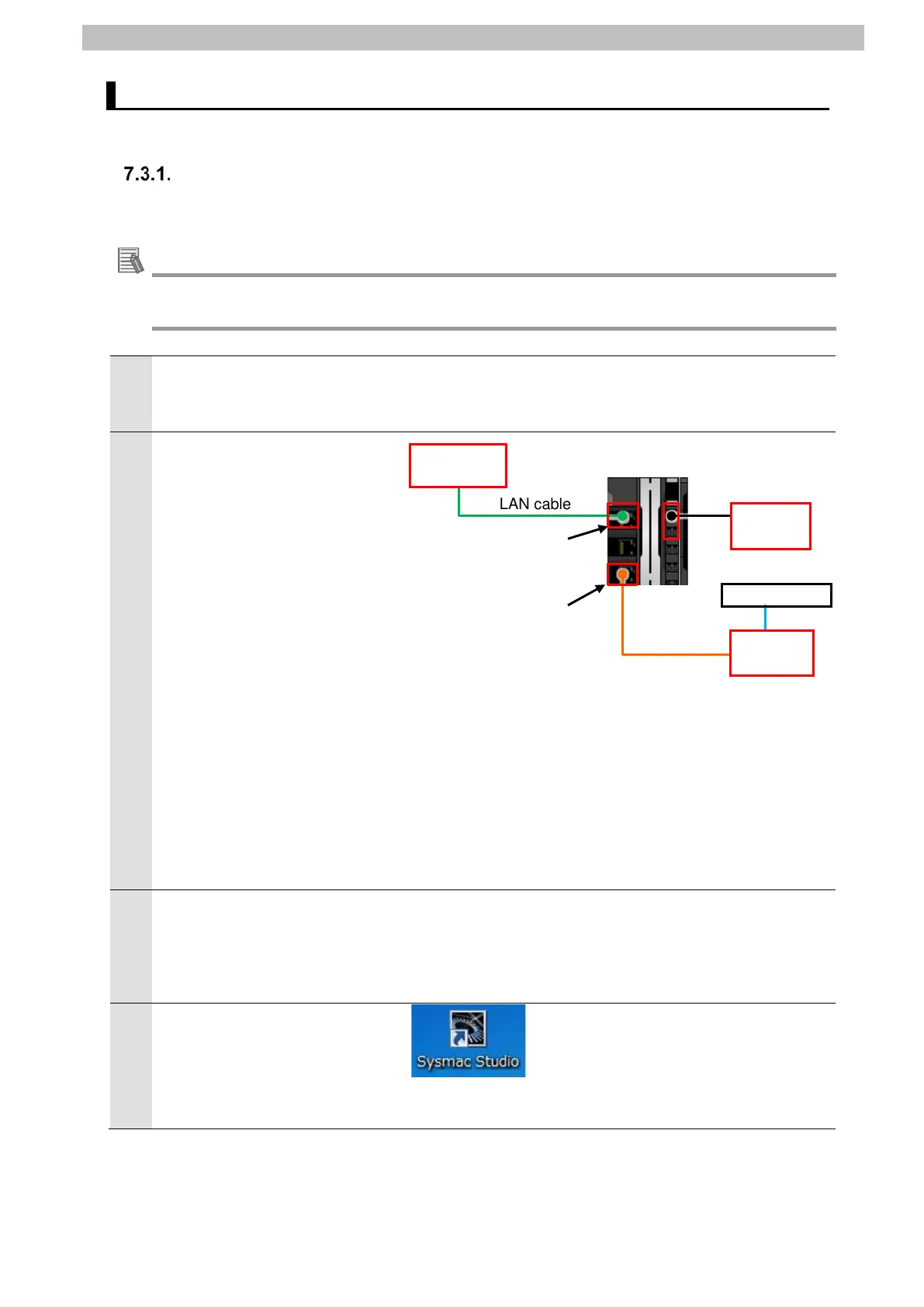

7.3. Network Configuration for Host Communications
Set up the network configuration for host communications.
Starting Sysmac Studio
Start Sysmac Studio and go online with the Controller.
Additional Information
For information on online connections, refer to Section 6. Online Connections to a Controller
of the Sysmac Studio Version 1 Operation Manual (Cat. No. W504).
1
Make sure the power supplies
for Controller and Slave
Terminal are OFF.
2
Connect Personal computer and
Built-in EtherNet/IP port
(PORT1) on Controller with a
LAN cable.
Connect the other end of the
Ethernet cable (which at one
end has been connected to
Slave Terminal) to Built-in
EtherCAT port (PORT3) on
Controller.
Connect Power supply to
Controller.
*For information on the power
supply connection to Controller,
refer to 5-4-1 Wiring the Unit
Power Supply of the NX-series
NX102 CPU Unit Hardware
User's Manual (Cat. No.
W593).
3
Turn ON Controller and Unit
power supply to Slave Terminal.
*The I/O power supply to Slave
Terminal remains OFF.
4
Start Sysmac Studio.
*If the User Account Control
Dialog Box is displayed at start,
make a selection to start
Sysmac Studio.
Controller
LAN cable
Built-in EtherCAT port
(PORT3)
Ethernet cable
Built-in EtherNet/IP port
(PORT1)
Signal Tower
Slave
Terminal
Personal
computer
Power
supply
