Omron NX502-1 Series User Manual

Ethernet
FINS command
Response frame
NX-series CPU Unit
CS/CJ-series CPU Unit
Unit number 0
Unit number 1
Network address 2

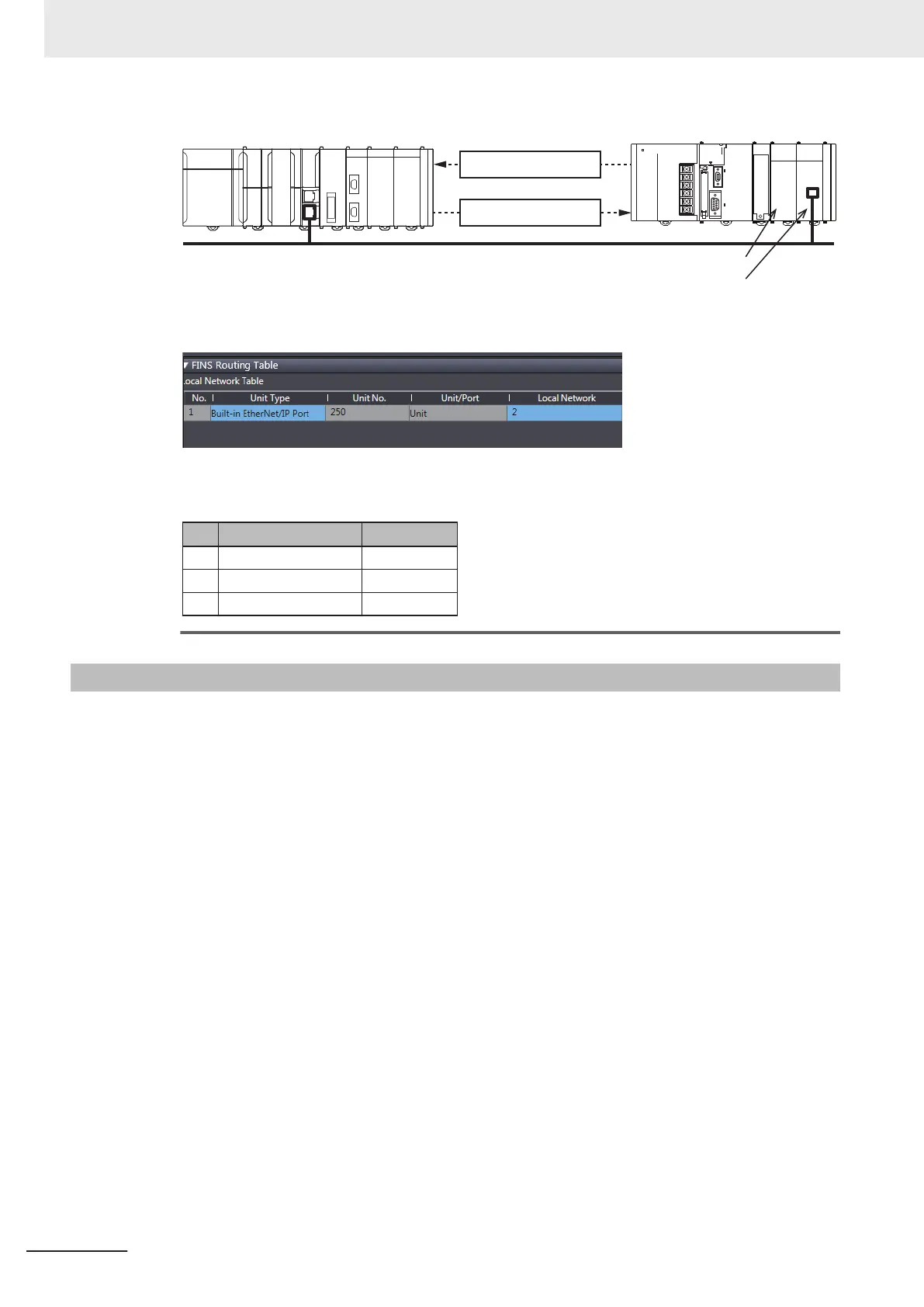

The example below shows the routing table setting for the NX-series CPU Unit.
The example below shows the routing table setting for the CS/CJ-series CPU Unit.
[Local network table]
No. Local network table Unit number
1 1 0
2 2 1
3
A-1-2
Operation of Routing Table during Clear All Memory Operation
During Clear All Memory operation of the NX-series CPU Units, the routing table is cleared together
with the local network table and relay network table.
