Omron STC-HD203 Series User Manual

No. 13S054-10
STC-HD203DV / STC-HD203DV-CS / STC-HD203SDI / STC-HD203SDI-CS
Product Specifications and Users Guide
18/78

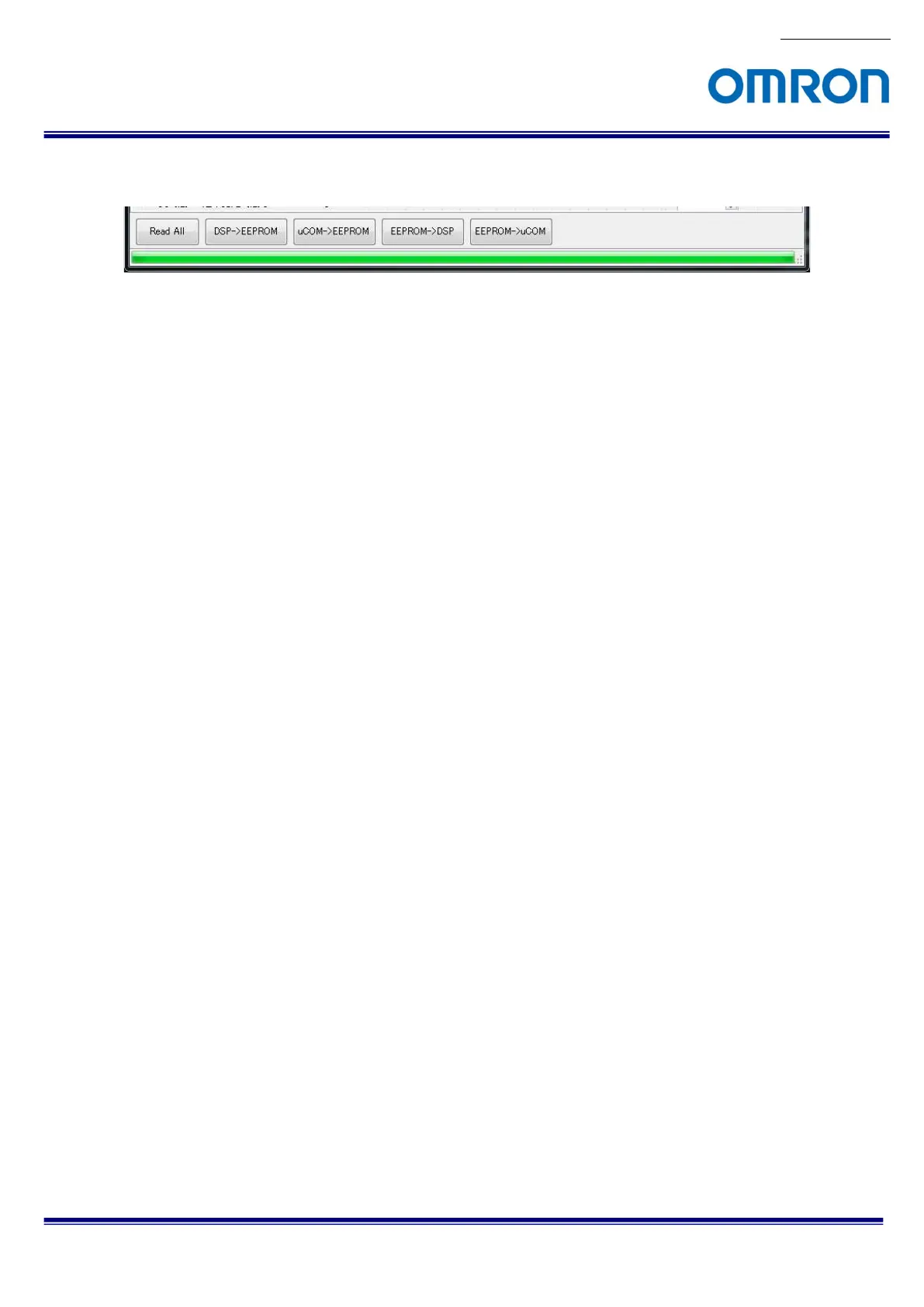

6.3 Button Description
Read All
Read out All of DPS register and uCOM register values on camera. Please execute this button when turning on
the camera every time.
DSP -> EEPROM
Save the DSP register values (that values are on DSP tab) into the EEPROM.
uCOM -> EEPROM
Save the uCOM register values (that values are on uCOM tab) into the EEPROM.
EEPROM -> DSP
Read the DSP register values on EEPROM.
EEPROM -> uCOM
Read the uCOM register values on EEPROM.
6.4 The Difference of uCOM register and DSP register
Mainly Video control functions are in the DSP register area. The communication settings and other functions as
the button setting are in the uCOM register. DSP has the eight User presets; User can load each DSP Preset for
each application.
