Omron STC-HD203 Series User Manual

No. 13S054-10
STC-HD203DV / STC-HD203DV-CS / STC-HD203SDI / STC-HD203SDI-CS
Product Specifications and Users Guide
7/78
3 Introduction
This document describes the specification of the following cameras:
STC-HD203DV / STC-HD203DV-CS (DVI output model)
STC-HD203SDI / STC-HD203SDI-CS (SDI output model)
3.1 Features
 1080p CMOS Sensor
 DVI / SDI Output
 Camera adjustment with OSCD (On Screen Character Display) through Remoter Controller (Option)
 Configurable many parameters through Control Software
 Eight configurable DSP can be saved
 Wide Dynamic Rage (ATR-EX)
 Defective Pixel Correction (JTACtrl v1.02 or later)
3.2 Naming Method
STC-HD203xx

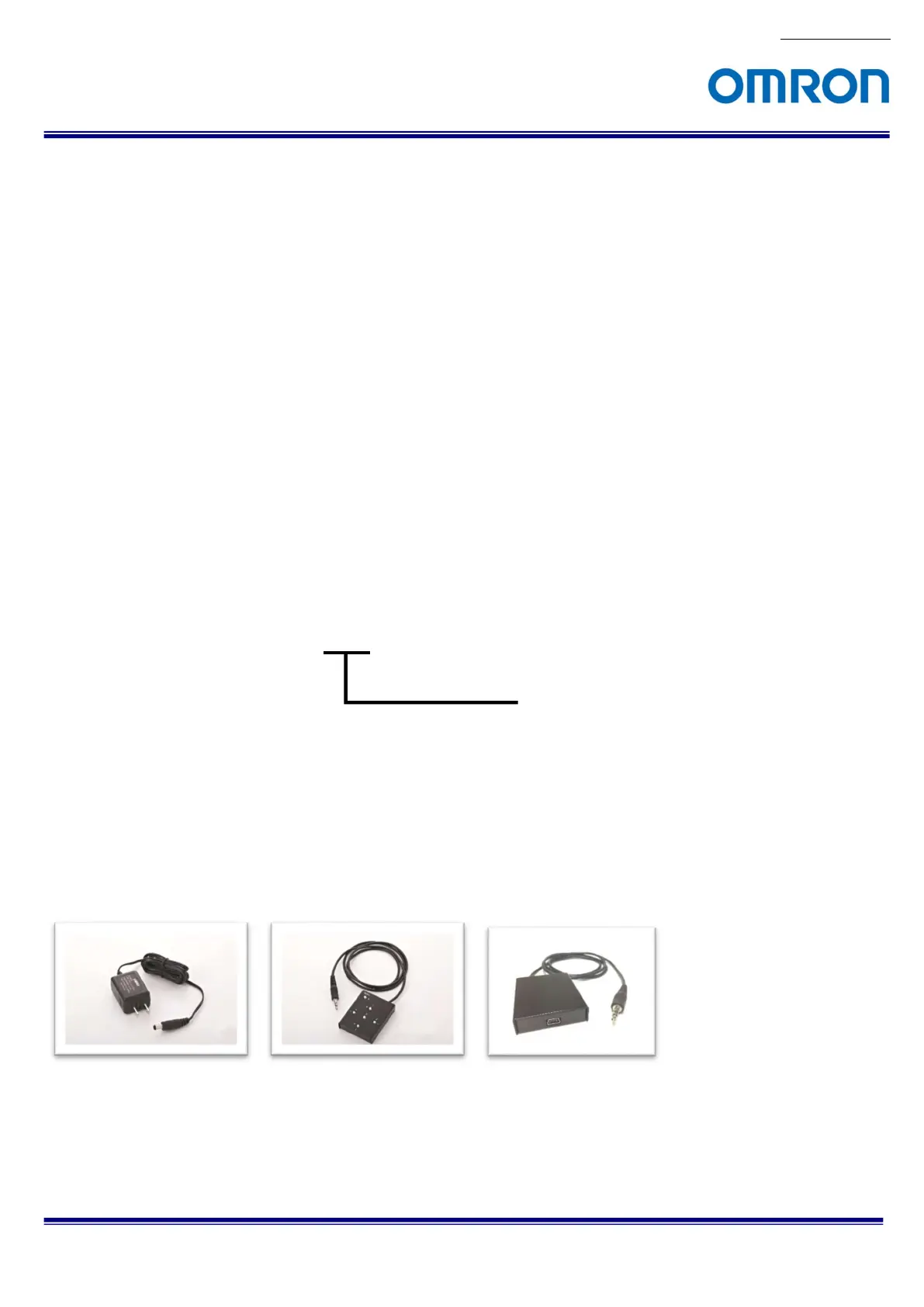

3.3 Peripheral Equipment
We provide as follow peripheral equipment as option.
+12V DC Power Supply: UN310-1210
Remote Controller: RC-HD133
Communication Tool (communicate through USB port on PC): JIG-USB-HD
Control Software: JTACtrl (Free)
Note: This camera may become hot when operating 1080p output. Please do not use camera without original camera
housing.
Back Panel
DV: DVI Output
SDI: SDI Output

Omron STC-HD203 Series Specifications

General

Brand	Omron
Model	STC-HD203 Series
Category	Machine Vision Systems
Language	English
