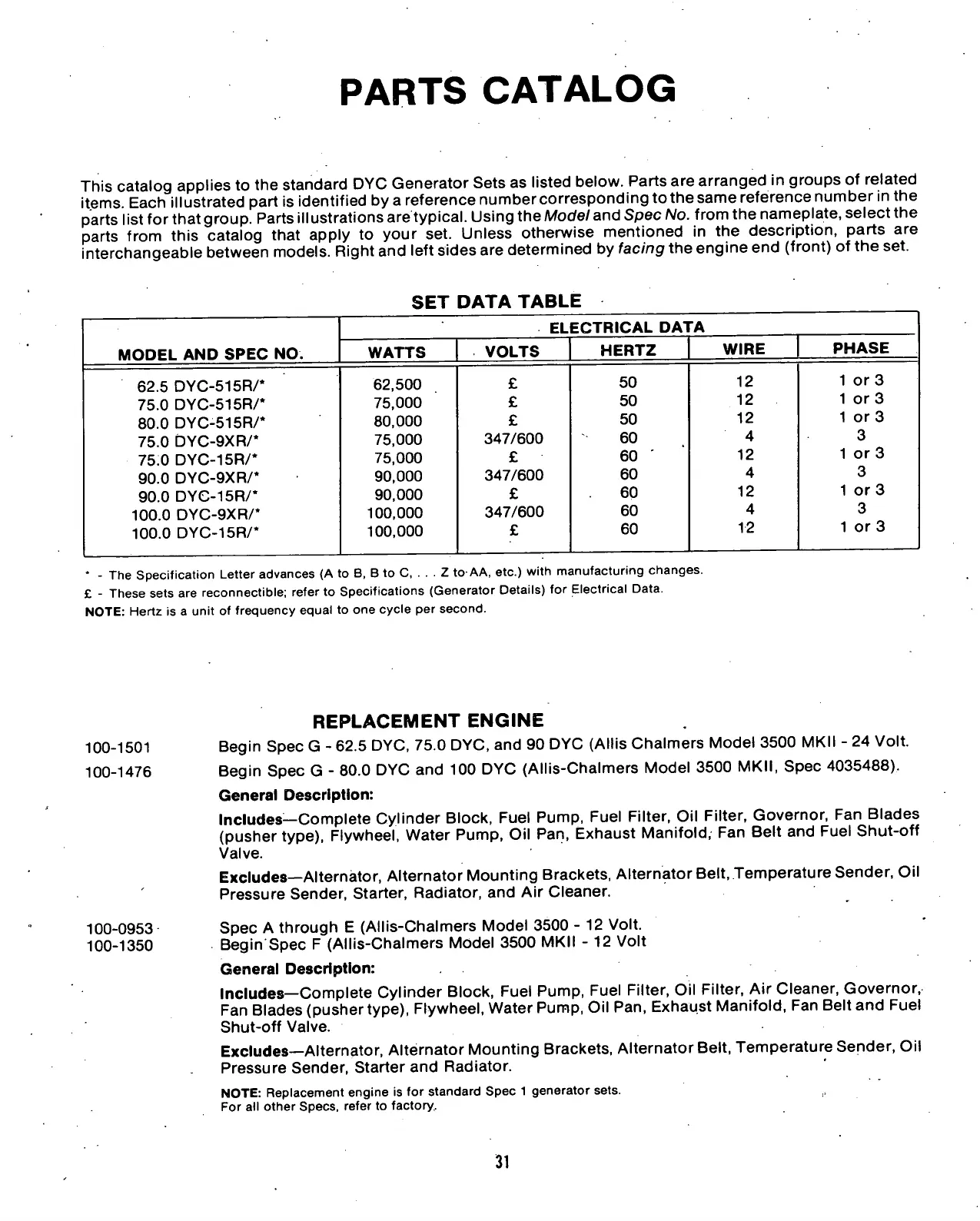

PARTS
CATALOG
This catalog applies to the standard DYC Generator Sets as listed below. Parts are arranged in groups of related
items Each illustrated part is identified by a reference numbercorresponding tothe same reference number in the
parts list for that group. Parts illustrations are
typical.
Using the Model and Spec
Wo.
from the nameplate, select the
parts from this catalog that apply to your set. Unless otherwise mentioned in the description, parts are
interchangeable between models. Right and left sides are determined by facing the engine end (front) of the set.
SET
DATA
TABLE
MODEL
AND
SPEC
NO.
ELECTRICAL
DATA
MODEL
AND
SPEC
NO.
WATTS
VOLTS
HERTZ
WIRE
PHASE
62.5 DYC-515R/*
62,500
£
50
12
1 or 3
75.0 DYC-515R/*
75,000
£ 50 12 1 or 3
80.0 DYC-515R/*
80,000
£ 50 12 1 or 3
75.0 DYC-9XR/*
75,000
347/600 60 4
1
3
75.0 DYC-15R/*
75,000
£ 60 ' 12
1
or 3
90.0 DYC-9XR/*
90,000
347/600 60 4 3
90.0 DYC-15R/*
90,000
£ 60 12 1 or 3
100.0 DYC-9XR/*
100,000
347/600 60 4
1
3
100.0 DYC-15R/*
100,000
£ 60 12
1
or 3
* - The Specification Letter advances (A to B, B to C, . . . Z to-AA, etc.) with manufacturing changes.
£ - These sets are reconnectible; refer to Specifications (Generator Details) for Electrical Data.
NOTE:
Hertz is a unit of frequency equal to one cycle per second.
REPLACEMENT
ENGINE
100-1501 Begin Spec G - 62.5 DYC, 75.0 DYC, and 90 DYC (Allis Chalmers Model 3500 MKII - 24 Volt.
100-1476 Begin Spec G - 80.0 DYC and 100 DYC (Allis-Chalmers Model 3500
MKII,
Spec 4035488).
General
Description:
Includes—Complete Cylinder Block, Fuel Pump, Fuel Filter, Oil Filter, Governor, Fan Blades
(pusher type), Flywheel, Water Pump, Oil Pan, Exhaust Manifold, Fan Belt and Fuel Shut-off
Valve.
Excludes—Alternator, Alternator Mounting Brackets, Alternator Belt, Temperature Sender, Oil
Pressure Sender, Starter, Radiator, and Air Cleaner.
100-0953 Spec A through E (Allis-Chalmers Model 3500 - 12 Volt.
100-1350 Begin Spec F (Allis-Chalmers Model 3500 MKII - 12 Volt
General
Description:
Includes—Complete Cylinder Block, Fuel Pump, Fuel Filter, Oil Filter, Air Cleaner, Governor,
Fan Blades (pusher type), Flywheel, Water Pump, Oil Pan, Exhaust Manifold, Fan Belt and Fuel
Shut-off Valve.
Excludes—Alternator, Alternator Mounting Brackets, Alternator Belt, Temperature Sender, Oil
Pressure Sender, Starter and Radiator.
NOTE:
Replacement engine is for standard Spec 1 generator sets.
For all other Specs, refer to factory..
31
