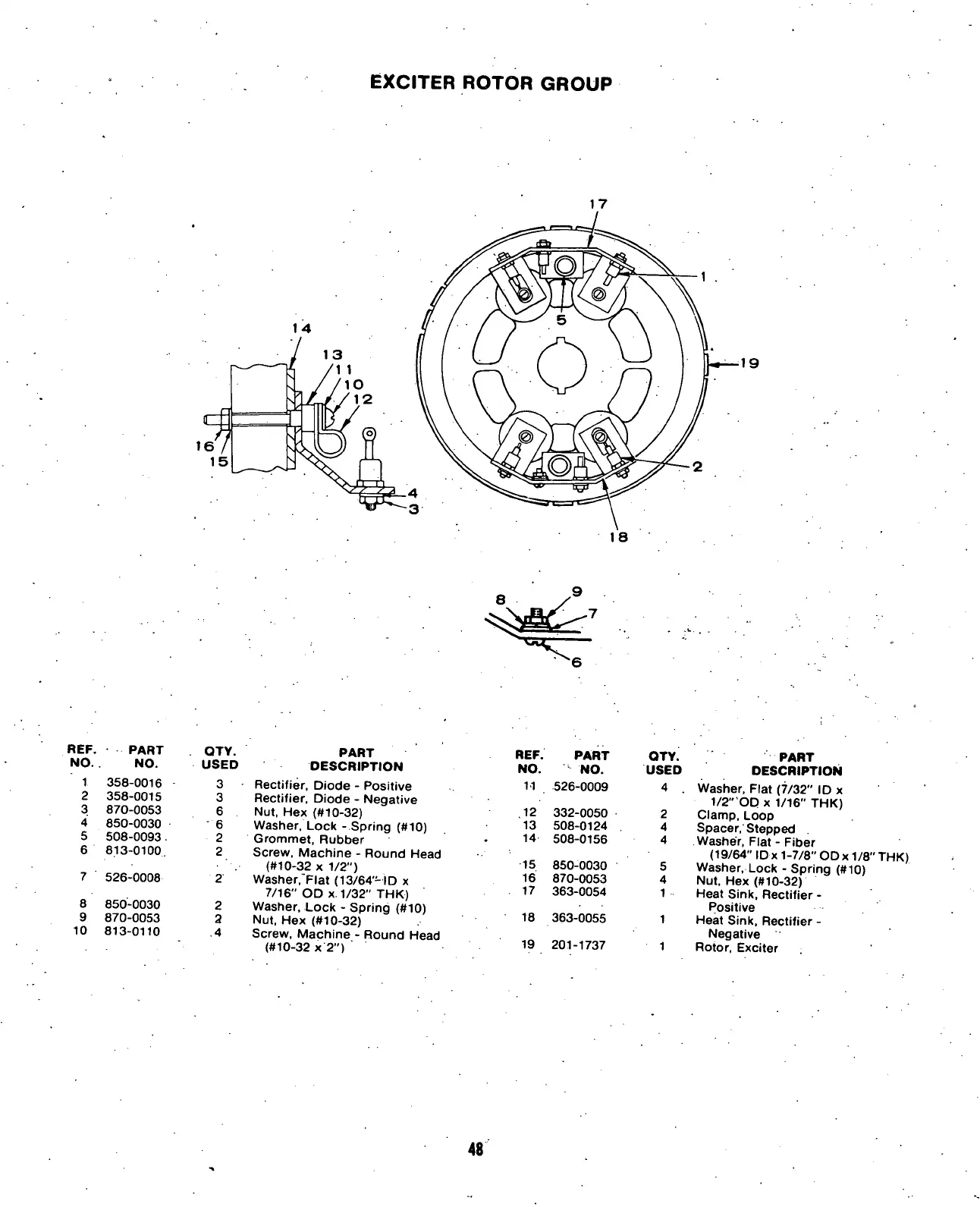

EXCITER ROTOR GROUP
]-*—19
REF.
NO.
1
2
3
4
5
6
8
9
10
PART
NO.
358-0016
358-0015
870-0053
850-0030
508-0093 -
813-0100.
526-0008
850-0030
870-0053
813-0110
QTY.
USED
3
3
6
6
2
2
2
2
.4
PART
DESCRIPTION
Rectifier, Diode - Positive
Rectifier, Diode - Negative
Nut, Hex (#10-32)
Washer, Lock - Spring (#10)
Grommet, Rubber
Screw, Machine - Round Head
(#10-32 x 1/2")
Washer/Flat (13/64'HD x
7/16" OD x. 1/32" THK)
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Screw, Machine - Round Head
(#10-32 x 2") "
REF.
PART
QTY.
NO.
NO.
USED
11
526-0009
4
12
332-0050
2
13
508-0124
4
14
508-0156 4
15
850-0030
5
16
870-0053
4
17
363-0054
1
18
363-0055
1
19
201-1737
1
PART
DESCRIPTION
Washer, Flat (7/32" IDx
1/2" OD x 1/16" THK)
Clamp, Loop
Spacer/Stepped
. Washer, Flat - Fiber
(19/64" IDx 1-7/8"ODx 1/8"THK)
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Heat Sink, Rectifier -
Positive
Heat Sink, Rectifier -
Negative
Rotor, Exciter
48
