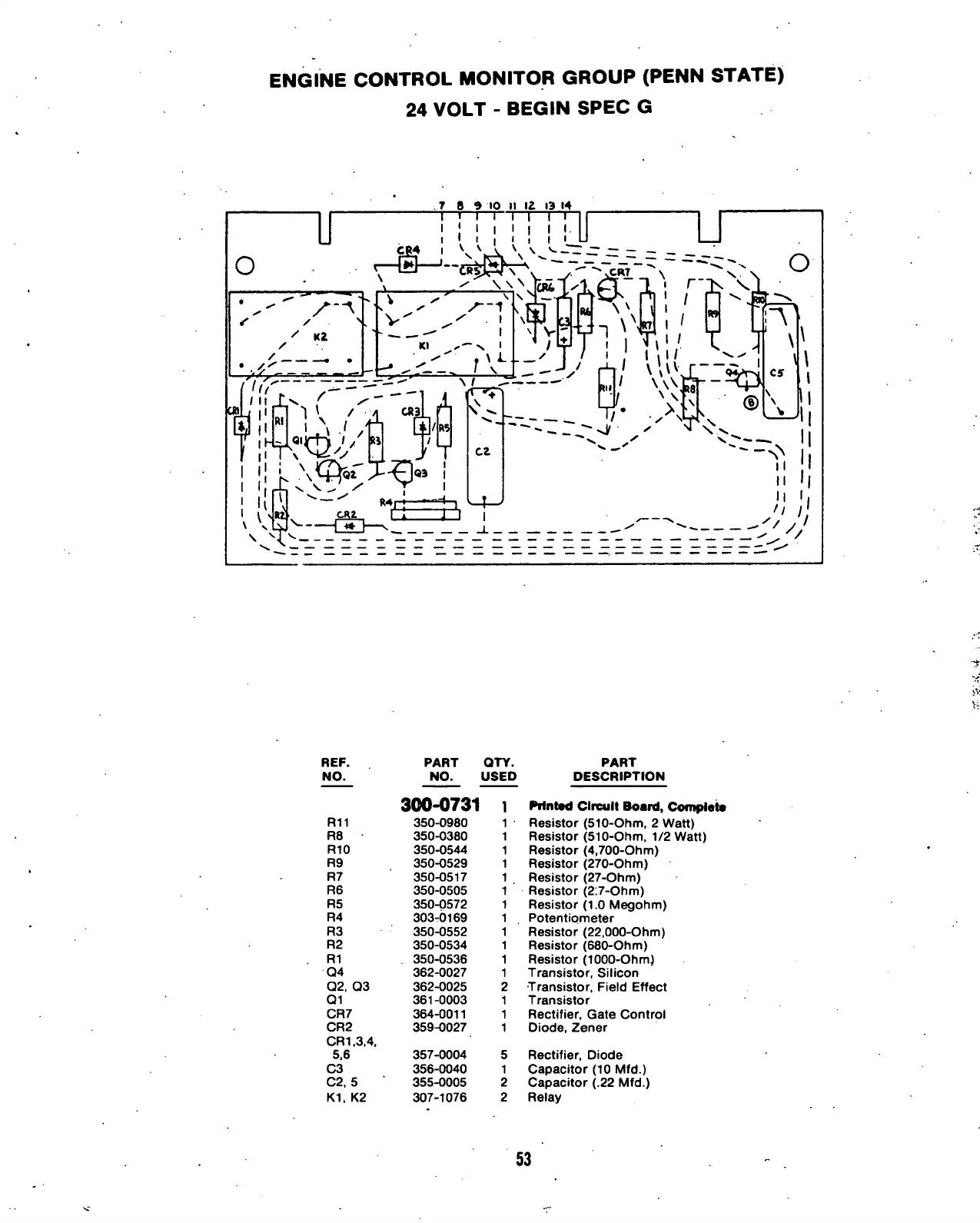

ENGINE CONTROL MONITOR GROUP (PENN STATE)
24 VOLT - BEGIN SPEC G
7 8 9 10 II li 13 14
T-T
I I.
IIIIII—r~T-| i 1 1
III •
i I i i i i i " U I—I
11
R4r
GD-
C5
ll
II
II ,
ft
V;
REF.
PART
QTY. PART
NO. NO.
USED
DESCRIPTION
300-0731
!
Printed Circuit Board, Complete
RII
350-0980
1 • Resistor (510-Ohm, 2 Watt)
R8
350-0380
1
Resistor (510-Ohm, 1/2 Watt)
RIO 350-0544 1
Resistor (4,700-Ohm)
R9 350-0529 1 Resistor (270-Ohm)
R7 350-0517 1
Resistor (27-Ohm)
R6
350-0505
1 '
Resistor (2:7-Ohm)
R5 350-0572 1
Resistor (1.0 Megohm)
R4 303-0169 i Potentiometer
R3 350-0552 1
Resistor (22,000-Ohm)
R2 350-0534 1 Resistor (680-Ohm)
Rl
. 350-0536
1
Resistor (1000-Ohm)
Q4 362-0027 1 Transistor, Silicon
Q2, Q3
362-0025
Transistor, Field Effect
Ql 361-0003
1
Transistor
CR7
364-0011
1
Rectifier, Gate Control
CR2
359-0027
1
Oiode, Zener
CRI,3,4,
5,6 357-0004
5 Rectifier, Oiode
C3
356-0040 1 Capacitor (10 Mfd.)
C2, 5 355-0005 2 Capacitor (.22 Mfd.)
Kl, K2 307-1076
2
Relay
53
