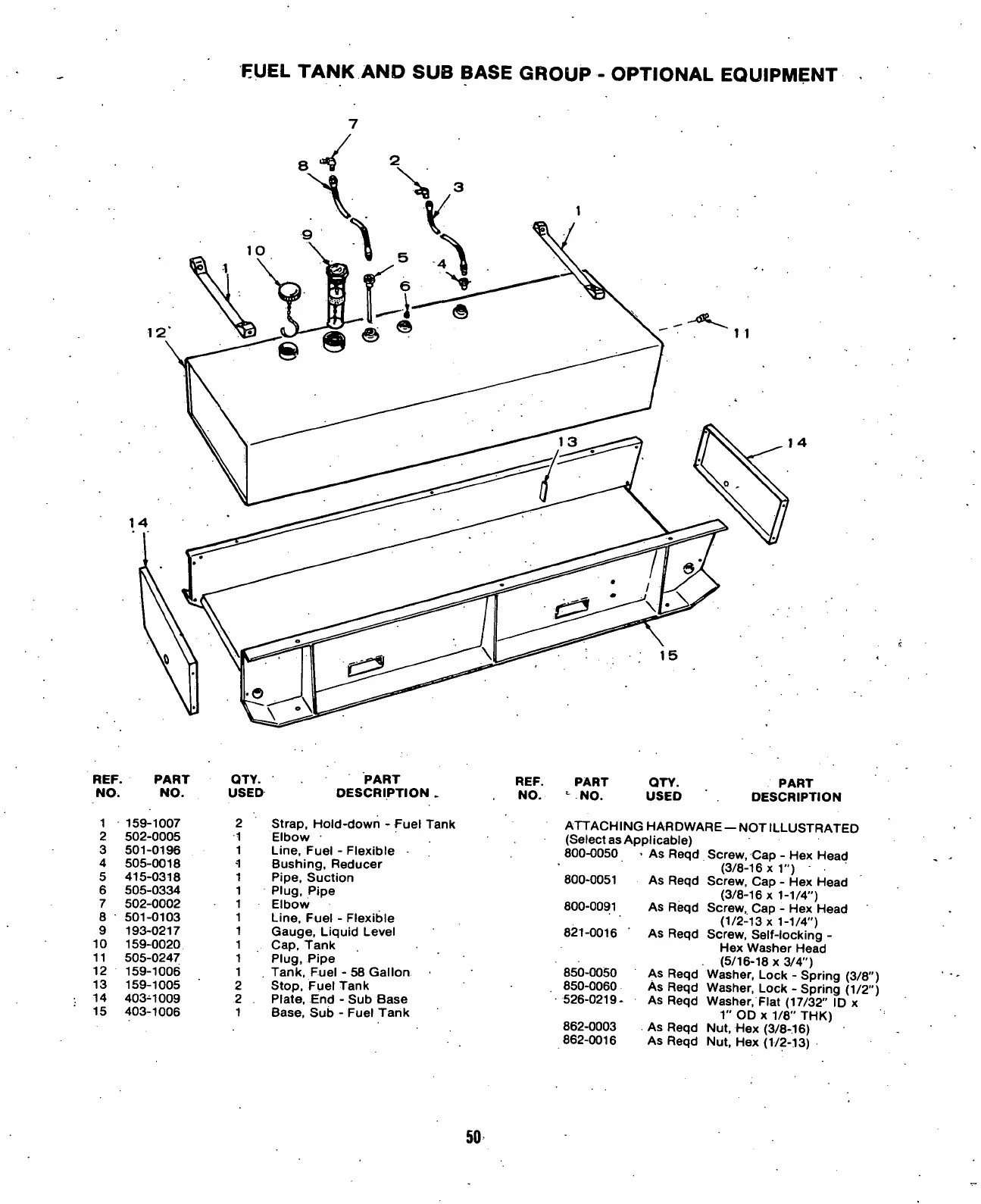

FUEL TANK AND SUB BASE GROUP - OPTIONAL EQUIPMENT
REF.
NO.
PART
NO.
159-1007
502-0005
501- 0196
505-0018
415-0318
505-0334
502- 0002
501-0103
193-0217
159-0020
505-0247
159-1006
159-1005
14 403-1009
15 403-1006
1
2
3
4
5
6
7
8
9
10
11
12
13
QTY. PART
USED DESCRIPTION
Strap, Hold-down - Fuel Tank
Elbow
Line, Fuel - Flexible
Bushing, Reducer
Pipe, Suction
Plug, Pipe
Elbow
Line, Fuel - Flexible
Gauge, Liquid Level
Cap, Tank
Plug, Pipe
Tank, Fuel - 58 Gallon
2 Stop, Fuel Tank
2 Plate, End - Sub Base
1 Base, Sub - Fuel Tank
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
ATTACHING HARDWARE — NOT ILLUSTRATED
(Select as Applicable)
800-0050 > As Reqd
800-0051
800-0091
821-0016
850-00i50
850-0060
526-0219-
862-0003
862-0016
As Reqd
As Reqd
As Reqd
As Reqd
As Reqd
As Reqd
As Reqd
As Reqd
Screw, Cap - Hex Head
(3/8-16x1") •
Screw, Cap - Hex Head
(3/8-16 x 1-1/4")
Screw, Cap - Hex Head
(1/2-13 x 1-1/4")
Screw, Self-locking -
Hex Washer Head
(5/16-18x3/4")
Washer, Lock - Spring (3/8")
Washer, Lock - Spring (1/2")
Washer, Flat (17/32" ID x
1" OD x 1/8" THK)
Nut, Hex (3/8-16)
Nut, Hex (1/2-13)
50
