Onan DYC Series User Manual

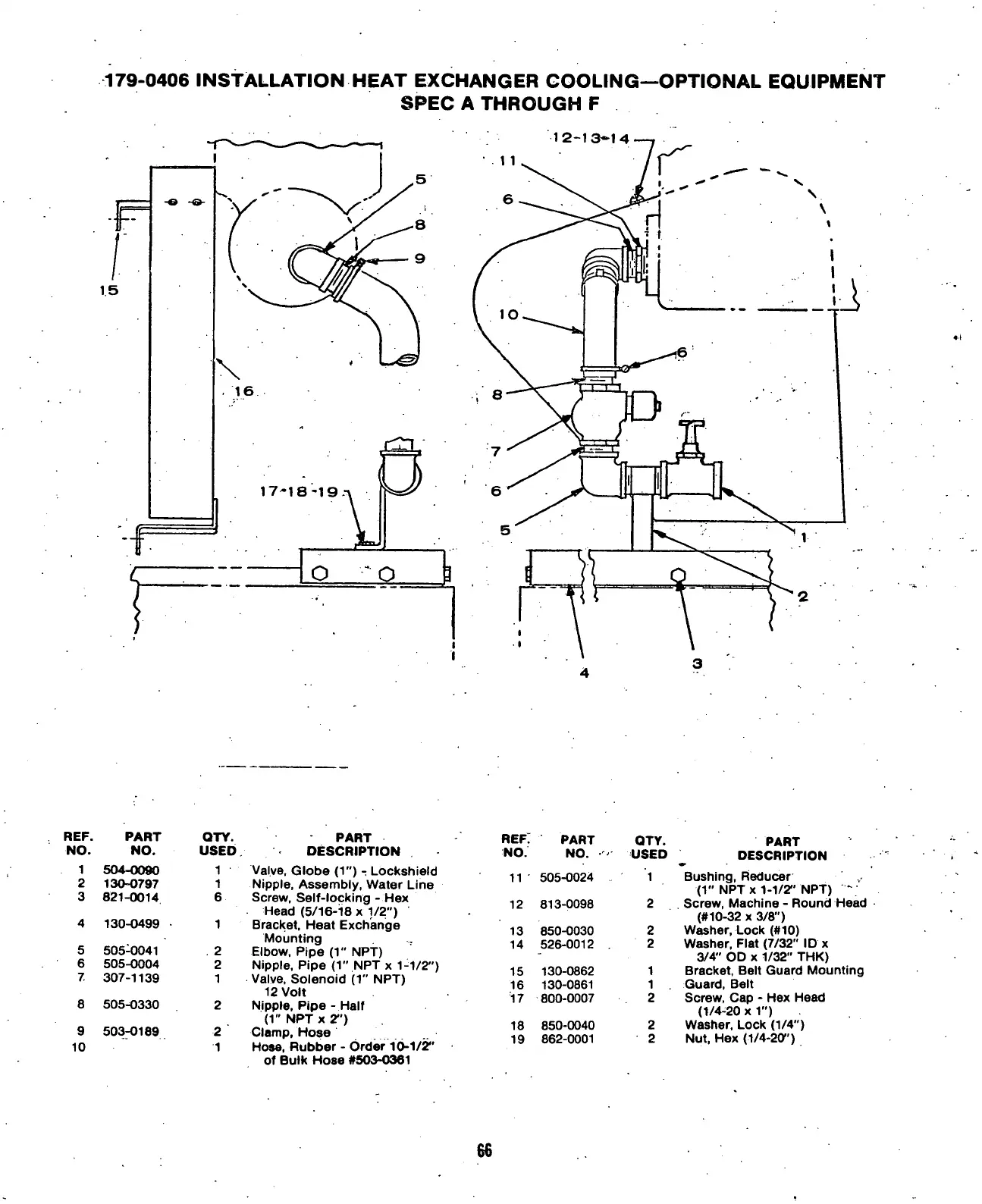

179-0406 INSTALLATION HEAT EXCHANGER COOLING—OPTIONAL EQUIPMENT
SPEC A THROUGH F
12-13*14
1 7-1 8-1 9.
jL
J
O ' O 1 O ' O 1
• *
REF.
PART
QTY.
NO.
NO.
USEO
1
504-0090
1
2
130-0797
1
3
821-0014
6
4
130-0499
1
5
505-0041
2
6
505-0004
2
7.
307-1139
1
8
505-0330
2
9
503-0189 2
10 1
PART
DESCRIPTION
Valve, Globe (1") - Lockshield
Nipple, Assembly, Water Line
Screw, Self-locking - Hex
Head (5/16-18 x 1/2")
Bracket, Heat Exchange
Mounting
Elbow, Pipe (1" NPT)
Nipple, Pipe (1" NPT x 1-1/2")
Valve, Solenoid (1" NPT)
12 Volt
Nipple, Pipe - Half
(1" NPT x Z')
Clamp, Hose
Hose, Rubber - Order 10-1/2"
of Bulk Hose #503-0361
REF: PART QTY. PART
NO. NO. ' USED DESCRIPTION
11 505-0024 1 Bushing, Reducer
(1" NPT x 1-1/2" NPT) \
12 813-0098 2 Screw, Machine - Round Head
(#10-32x3/8")
13 850-0030 2 Washer, Lock (#10)
14 526-0012 . 2 Washer, Flat (7/32" ID x
3/4" OD x 1/32" THK)
15 130-0862 1 Bracket, Belt Guard Mounting
16 130-0861 1 . Guard, Belt
17 800-0007 2 Screw, Cap - Hex Head
(1/4-20 x 1")
18 850-0040 2 Washer, Lock (1/4")
19 862-0001 2 Nut, Hex (.1/4-2<r)
66
