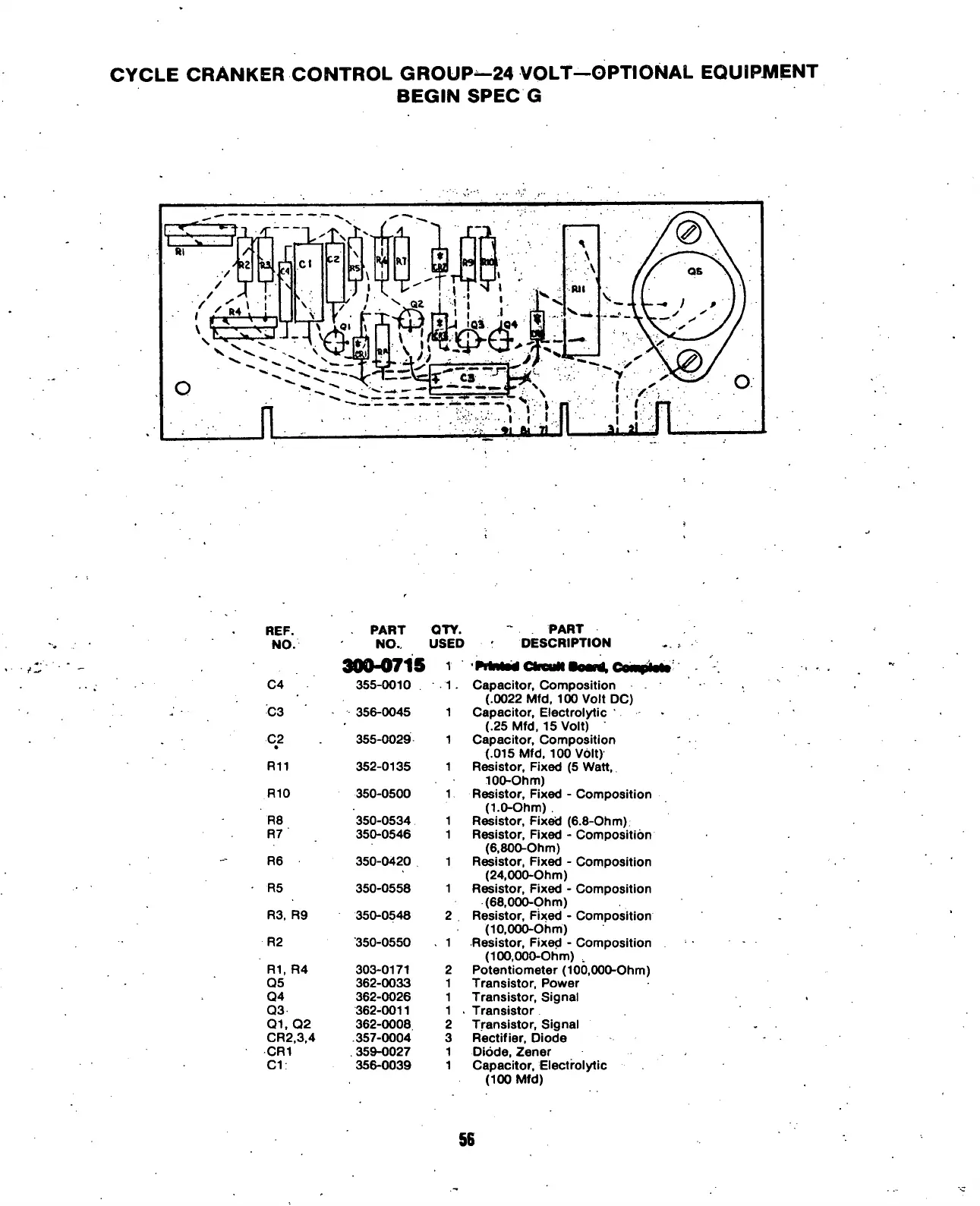

CYCLE
CRANKER
CONTROL
GROUP—24-VOLT—OPTIONAL
EQUIPMENT
BEGIN
SPEC
G
REF.
PART
OTY.
PART
NO.
NO..
USED
DESCRIPTION
300-0715
1
C4
355-0010 1 . Capacitor, Composition
(.0022
Mfd, lOOVolt DC)
C3 356-0045 1
Capacitor, Electrolytic '
(.25 Mfd, ISVolt) "
C2
•
355-0029
1 Capacitor, Composition
C2
•
(.015 Mfd, lOOVolt)
RII 352-0135 1 Resistor, Fixed (5 Watt,
100-Ohm)
RIO 350-0500 1 Resistor, Fixed - Composition
(1.0-Ohm) .
R8 350-0534 1 Resistor, Fixed (6.8-Ohm)
R7
350-0546
1 Resistor, Fixed - Composition
(6,800-Ohm)
R6 350-0420 1
Resistor, Fixed - Composition
(24,000-Ohm)
R5 350-0558 1
Resistor, Fixed - Composition
(68,000-Ohm)
R3,
R9 350-0548 2
Resistor, Fixed - Composition
(10,000-Ohm)
R2 350-0550 . 1
Resistor, Fixed - Composition
(100,000-Ohm) ,
Rl,
R4 303-0171 2 Potentiometer (106,000-Ohm)
Q5 362-0033 1 Transistor, Power
Q4
362-0026 1 Transistor, Signal
Q3 362-0011
1 •
Transistor
Q1,Q2
362-0008 2 Transistor, Signal
CR2,3,4
357-0004
3 Rectifier, Diode
CRI 359-0027 1
Diode, Zener
Cl:
356-0039 1 Capacitor, Electrolytic
(100 Mfd)
56
