Onkyo HT-R500 Instruction Manual

14

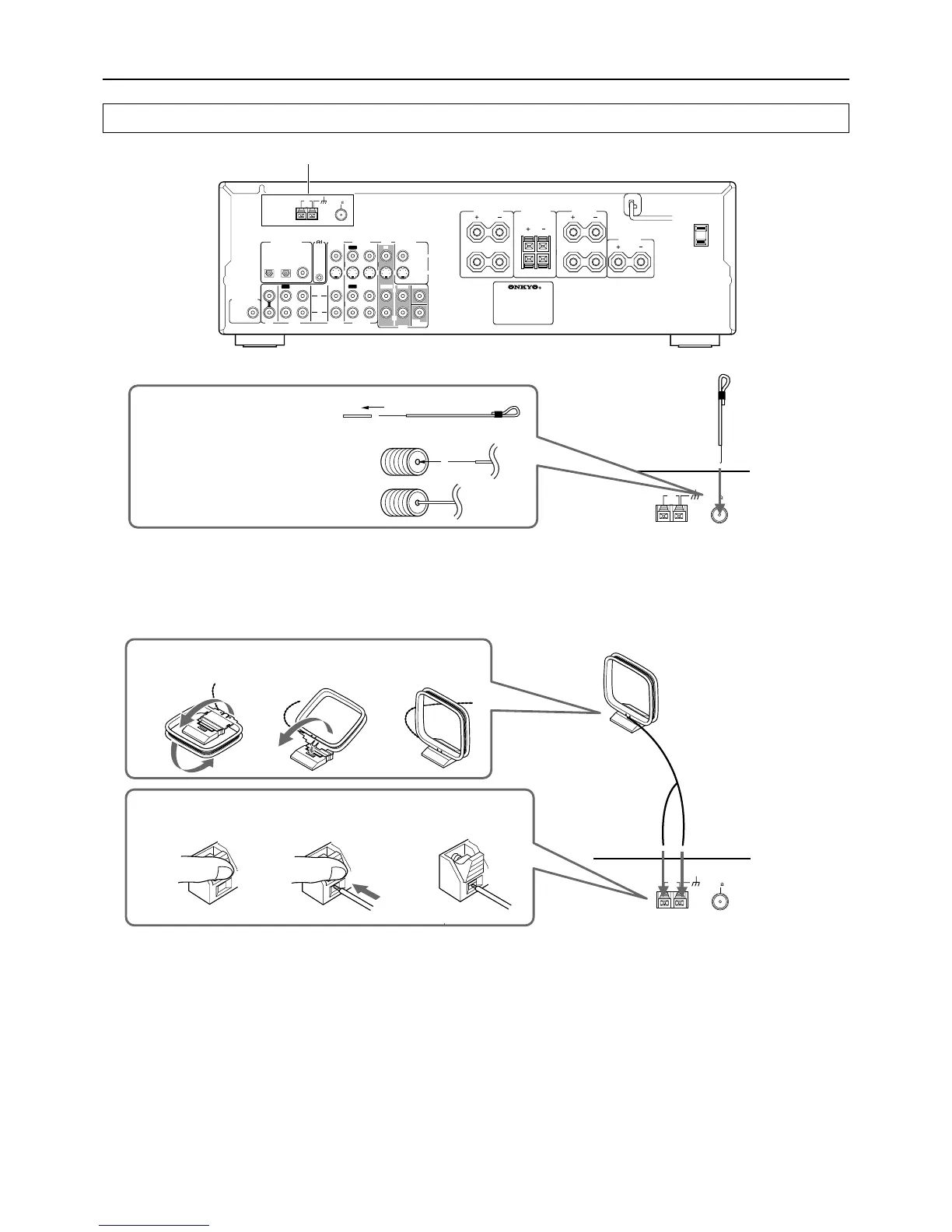

Connecting the supplied FM and AM indoor antennas
Connecting antennas
FM indoor
antenna
Note
Insert one end of the AM antenna cord to either of the AM antenna connectors and the other end to the other connector. There is no difference
between one end of the AM antenna cord and the other end, unlike the speaker cables which have positive and negative poles.
Adjusting the position of the AM indoor antenna
The AM loop antenna is for indoor use only. Set it in the direction and position where you receive signals clearly. Put it as far away as
possible from the HT-R500, televisions, speaker cables, and power cords.
When reception is not satisfactory with the attached AM loop antenna alone, connection of an outdoor antenna is recommended.
AM indoor antenna
Insert into the
hole.
Rotate the outer frame
of the antenna.
Extend the
antenna cord.
Press up and hold
the lever.
Insert the end of the
cord.
Release the lever to
secure the connection.
REMOTE
CONTROL
R
L
R
L
R
L
IN
IN
IN
COAXI AL
OPTICAL
12
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
FRONT
SPEAKERS A
FRONT
SPEAKERS B
SURROUND
SPEAKERS
CENTER
SPEAKER
L
R
L
R
AC OUTLET
ANTENNA
FM
75
AM
SUBWOOFER
PRE OUT
ANTENNA
Adjusting the position of the FM indoor antenna
The FM indoor antenna is for indoor use only. During use, extend the antenna and move it in various directions until the clearest signal is
received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion.
If the reception is not very clear with the attached FM indoor antenna, the use of an outdoor antenna is recommended.
ANTENNA
FM
75
AM
1 Strip away the insulation from
the end of the cord.
2 Fully insert the stripped end of
the cord.
ANTENNA
FM
75
AM

Onkyo HT-R500 Specifications

Amplifier Section

continuous average power output (FTC)	100 watts per channel at 8 ohms
dynamic power output at 3 ohms	230 watts × 2
dynamic power output at 4 ohms	170 watts × 2
dynamic power output at 8 ohms	115 watts × 2
total harmonic distortion	0.08% at rated power
damping factor	60 at 8 ohms

Input and Output Impedance

digital input (optical 1, 2)	0.5 Vp-p, 75 ohms
digital input (coaxial)	0.5 Vp-p, 75 ohms
line (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 50 kohms
multichannel input (DVD FRONT L/C/R, SURR L/R)	200 mV, 50 kohms
subwoofer input	36 mV, 50 kohms
rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
pre out (subwoofer)	1 V, 470 ohms

Tuner Section

FM tuning range	87.5-108.0 MHz
FM usable sensitivity (mono)	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM usable sensitivity (stereo)	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM signal-to-noise ratio (mono)	76 dB, IHF
FM signal-to-noise ratio (stereo)	70 dB, IHF
AM tuning range	530-1, 710 kHz
AM usable sensitivity	30 µV
AM signal-to-noise ratio	40 dB

General

power supply	AC 120 V, 60 Hz
power consumption	5.5 A
dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-13/16”
dimensions in mm (W × H × D)	435 × 150 × 376 mm
weight	21.4 lbs.
weight in kg	9.7 kg
