Onkyo HT-R500 Instruction Manual

34
Controlling an Onkyo DVD player

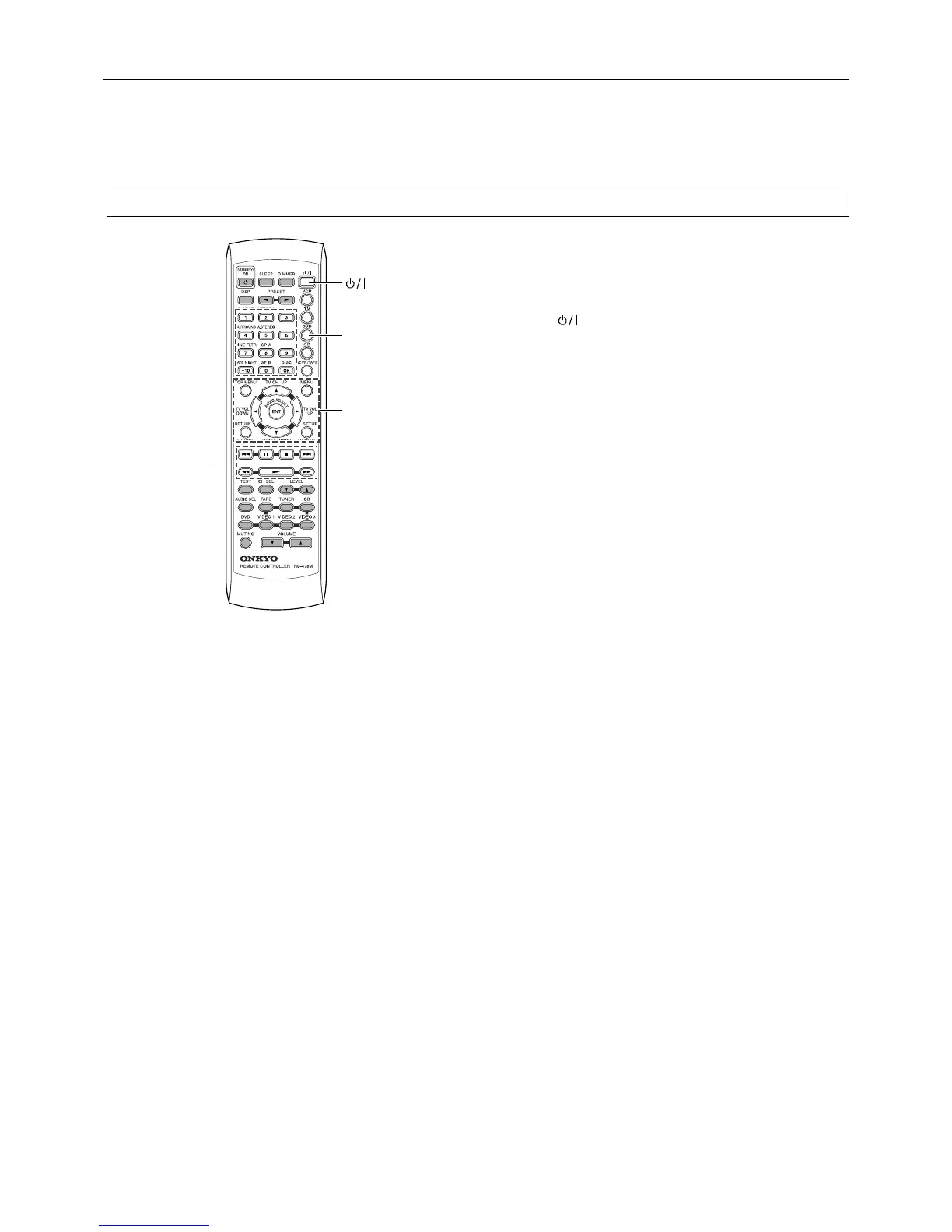

Using the remote controller
You can operate the z-connected Onkyo DVD player, CD player or cassette tape deck with the remote controller provided with the
HT-R500. The shaded buttons in the illustration operates the HT-R500 in any mode.
The z connector of the Onkyo DVD player must be connected to
the HT-R500 (refer to page 16).
1. Press DVD.
2. Press to turn on the Onkyo DVD player.
3. Press the desired operation button.
DVD operation buttons
s : Starts playback of DVD.
e : Stops playback.
f : Searches the disc in the forward direction.
d : Searches the disc in the reverse direction.
2/8 : Lets playback pause temporarily or advances the
disc frame by frame.
w : Starts playback from the beginning of the next
chapter/track.
q : Starts playback from the beginning of the current
chapter/track.
DISC : This button is valid when the DVD changer is used
and selects the disc to be played.
1–9, +10, 0 : Use to enter numeric values.
OSD operation buttons
TOP MENU : Displays the top menu of each DVD disc.
MENU : Displays a menu recorded in the DVD disc.
RETURN : Returns to the previous menu.
SETUP : Displays the setup menu.
5/∞/2/3 : Selects an item in a menu.
ENT : Enters the selection in memory.
DVD
operation
buttons
OSD
operation
buttons
DVD

Onkyo HT-R500 Specifications

Amplifier Section

continuous average power output (FTC)	100 watts per channel at 8 ohms
dynamic power output at 3 ohms	230 watts × 2
dynamic power output at 4 ohms	170 watts × 2
dynamic power output at 8 ohms	115 watts × 2
total harmonic distortion	0.08% at rated power
damping factor	60 at 8 ohms

Input and Output Impedance

digital input (optical 1, 2)	0.5 Vp-p, 75 ohms
digital input (coaxial)	0.5 Vp-p, 75 ohms
line (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 50 kohms
multichannel input (DVD FRONT L/C/R, SURR L/R)	200 mV, 50 kohms
subwoofer input	36 mV, 50 kohms
rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
pre out (subwoofer)	1 V, 470 ohms

Tuner Section

FM tuning range	87.5-108.0 MHz
FM usable sensitivity (mono)	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM usable sensitivity (stereo)	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM signal-to-noise ratio (mono)	76 dB, IHF
FM signal-to-noise ratio (stereo)	70 dB, IHF
AM tuning range	530-1, 710 kHz
AM usable sensitivity	30 µV
AM signal-to-noise ratio	40 dB

General

power supply	AC 120 V, 60 Hz
power consumption	5.5 A
dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-13/16”
dimensions in mm (W × H × D)	435 × 150 × 376 mm
weight	21.4 lbs.
weight in kg	9.7 kg
