8
Index to parts and controls

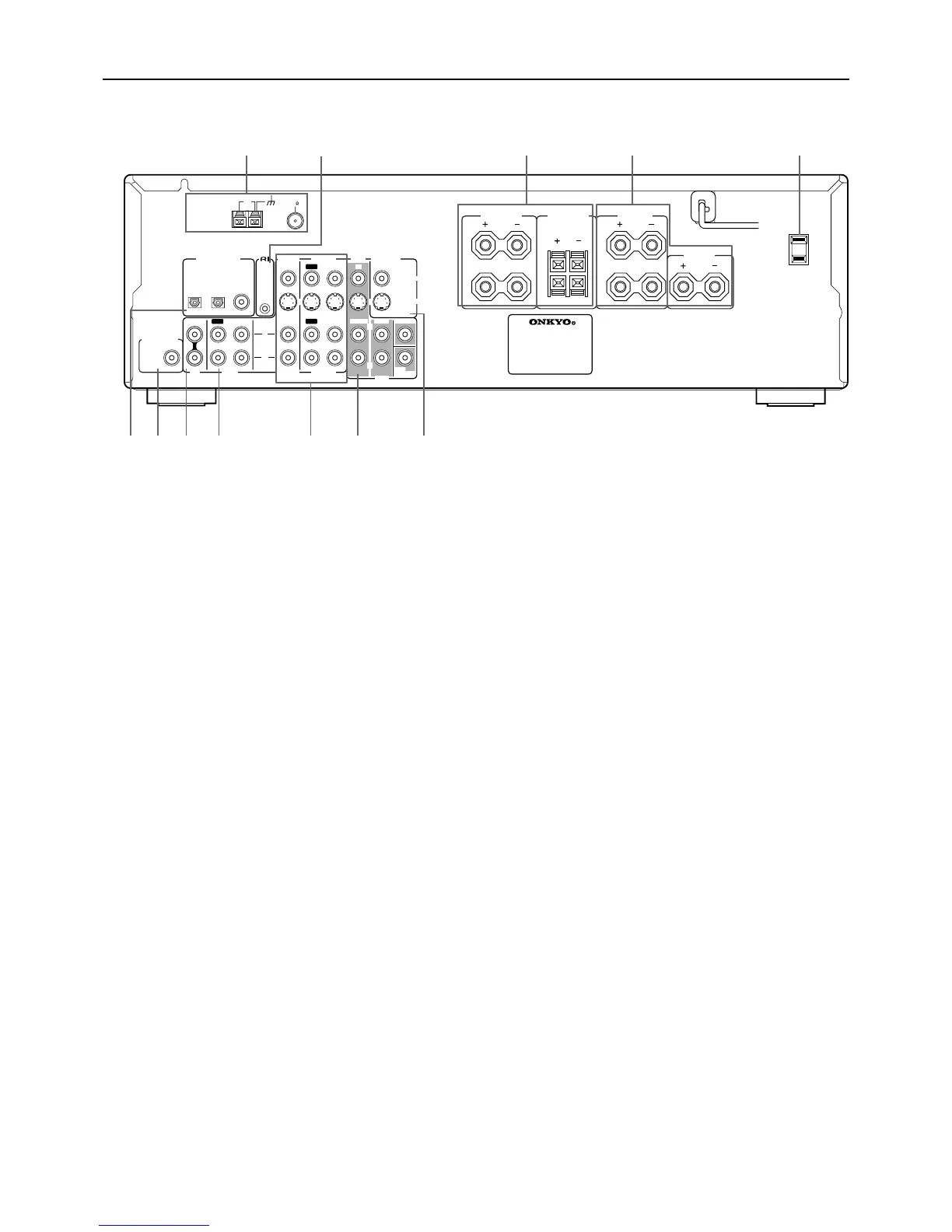

Rear panel
For operational instructions, refer to the page indicated in brackets.
1 ANTENNA [14, 15]
These terminals are for connecting the FM antenna and AM
antenna.
2 z (REMOTE CONTROL) [16]
Connect the Onkyo components that have z connectors such as a
CD player, and cassette tape deck using the z cables provided
with them. When these components are interconnected, they can be
controlled from the remote controller provided with the
HT-R500.
After connecting the z connectors, check the operation of the
remote controller buttons for use in controlling other components.
3 FRONT SPEAKERS A/B [13]
Speaker terminals are provided for the front left, front right
speakers. SPEAKERS A are compatible with banana plug
connectors.
4 SURROUND SPEAKERS L/R, CENTER
SPEAKER [13]
Speaker terminals are provided for the center, surround left and
surround right speakers.
5 AC OUTLET [11]
The HT-R500 is supplied with AC outlet for connecting the power
cord from other devices so that their power is supplied through the
HT-R500. By doing this, you can use the STANDBY/ON button on
the HT-R500 to turn on and off the connected devices as well.
6 DIGITAL INPUT OPTICAL 1, 2, COAXIAL
[10, 11]
These are the digital audio inputs. There are 2 digital inputs with
optical jacks and 1 with a coaxial jack. The inputs accept digital
audio signals from DVD, LD, CD, or other digital source.
7 SUBWOOFER PRE OUT [13]
This terminal is for connecting an active subwoofer.
8 CD IN [10]
Connect the output terminal on the CD player to the CD IN L/R
jacks on the HT-R500.
9 TAPE IN/OUT [10]
Connect the output terminals (PLAY) of the cassette tape deck or
MD recorder to the TAPE IN L/R jacks on the HT-R500 and the
input terminals (REC) to the TAPE OUT L/R jacks.
p VIDEO 1 IN/OUT, VIDEO 2 IN [11]
Connect the output terminals (PLAY) of the video cassette recorder
to the VIDEO 1 IN L/R jacks on the HT-R500 and the input
terminals (REC) to the VIDEO 1 OUT jacks.
Connect the output terminals of the video cassette player or satellite
tuner to the VIDEO 2 IN jacks on the HT-R500.
q DVD [11]
By connecting a DVD player, MPEG decoder, or other component
that has a multi channel port, you can playback the audio with 5.1
channel output. So, be sure to prepare a cable that can properly
connect the HT-R500 to the peripheral device.
• You can connect 2 channel audio output to the FRONT L/R
jacks.
w MONITOR OUT [10]
The monitor output includes both RCA type and S video
configurations. This output is for connecting television monitors or
projectors.
REMOTE
CONTROL
R
L
R
L
R
L
IN
IN
IN
COAXIAL
OPTICAL
12
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
FRONT
SPEAKERS A
FRONT
SPEAKERS B
SURROUND
SPEAKERS
CENTER
SPEAKER
L
R
L
R
AC OUTLET
ANTENNA
FM
75
AM
SUBWOOFER
PRE OUT
12 3 54
7
6 8 9 q wp
