Speaker setup
Front left
Front right
Center
Surround left
Surround right
You need to set up the speaker configuration for the speaker system
connected to the FRONT SPEAKERS A connectors (see page 13).
(There is no speaker configuration setup for the SPEAKERS B
system.)
Notes
• Speaker setup cannot be done if;
– Headphones are connected (see page 26),
– The FRONT SPEAKERS B system is on (see page 26),
–“Multi ch” is selected with AUDIO SELECTOR button, or
– Connected source is played.
• It is not necessary to set the parameters again once you have
completed the setup unless you change the speaker
configuration.
Selecting the number of speaker channels
1. Press SPEAKER ADJUST.
When the button is pressed, the current speaker setup will be
displayed.
2. Press PRESET/ADJUST ™/£ repeatedly to
select the number of channels.

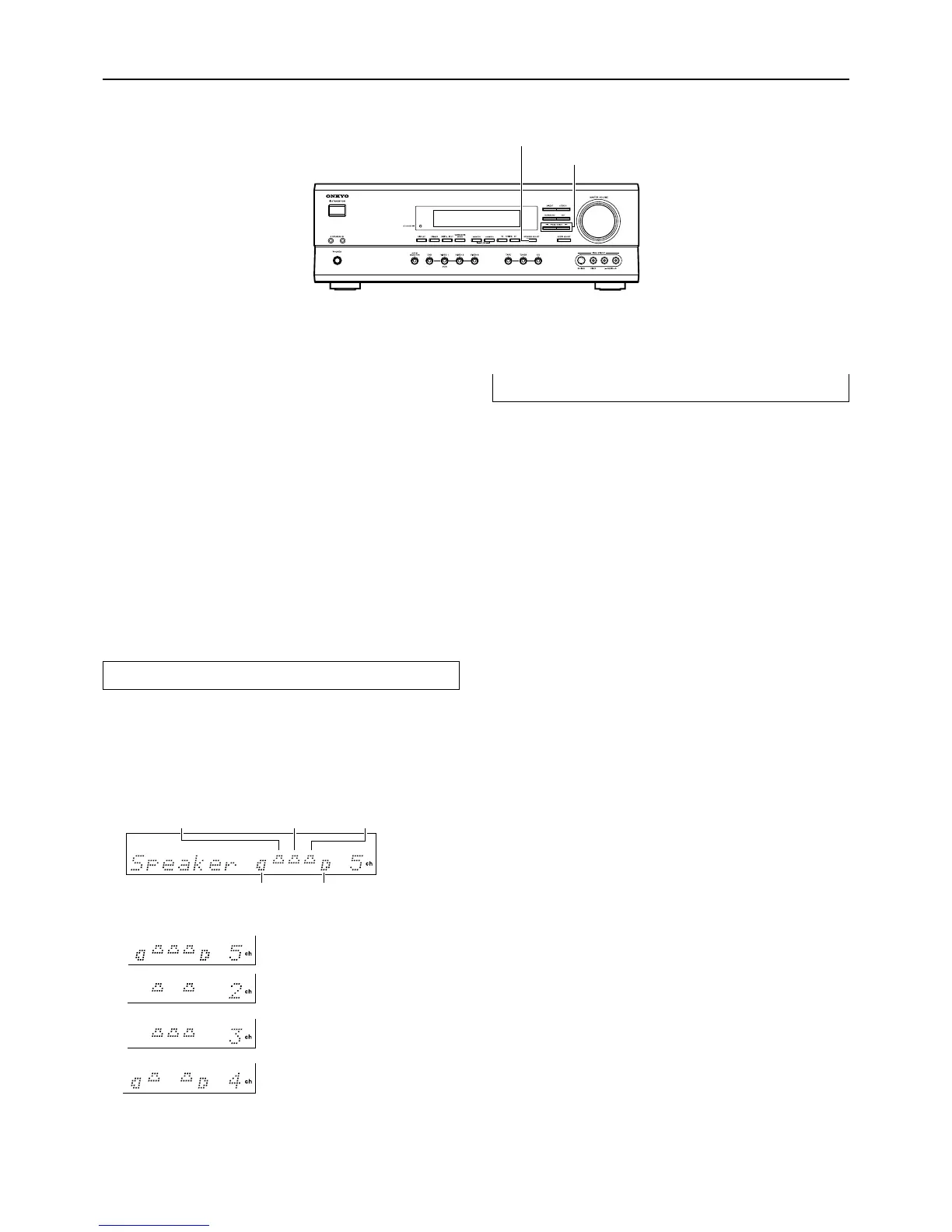

Speaker 5ch
Speaker 2ch
Speaker 3ch
Speaker 4ch
Display and number of speaker channels
Note
The listening mode will automatically change according to the
number of channels if you set the number of channels.
Setting the crossover frequency
To reproduce low frequencies between 80 Hz and 120 Hz in an
optimum condition, set the crossover frequency according to the
low-frequency reproduction capabilities of the subwoofer and
other speakers (front, center and surround).
1. Press SPEAKER ADJUST twice.
The current setting is displayed.
2. Press PRESET/ADJUST ™/£ repeatedly to
select the crossover frequency.
Select from 80 Hz, 100 Hz and 120 Hz.
Refer to the following example for deciding the setting.
• When other speakers than the subwoofer are relatively
small (when they cannot reproduce low frequencies
sufficiently): 120 Hz
• When other speakers than the subwoofer are relatively
large (when they can reproduce low frequencies
sufficiently): 80 Hz
If you want more accurate setting, refer to the instruction
manuals of the speakers and perform the setting according to
their reproduce frequency bands. Also listen to the actual sound
and set to the high position (120 Hz) if you feel that the sound
from the subwoofer is not enough or to the low position (80 Hz)
if you feel that the sound is loud.
