Onkyo M-5000R Instruction Manual

12
En
Getting to Know the Power Amplifier
The page numbers in parentheses show where you can find the main explanation for each item.
a Power meter (➔ 21)
The power meter shows the output power level.
The large power meters have been designed so that the
indicator needles move up to the peak level quickly
and then return more slowly. This makes it easier to
read transient power levels which last for only a
fraction of a second.
b METER RANGE LEDs (➔ 21)
x1 or x10 lights when the power meter range is x1 or
x10. The Off LED in the middle lights when the
power meter are turned off.
Before entering standby mode with the Asb function,
the Off LED flashes 30 seconds before the ASb
function starts running.
c ON/STANDBY button (➔ 20)
This button is used to set the power amplifier to On or
Standby.
d POWER switch (➔ 20)
This is the main power switch. When set to OFF, the
power amplifier is completely shutdown. It must be
set to ON to set the power amplifier to On or Standby.
e Standby LED (➔ 20)
Lights when the power amplifier is in Standby mode.
Flashes if the protection circuitry has been activated.
f METER RANGE button (➔ 21)
This button is used to switch the power meter range:
x1, x10 or off.

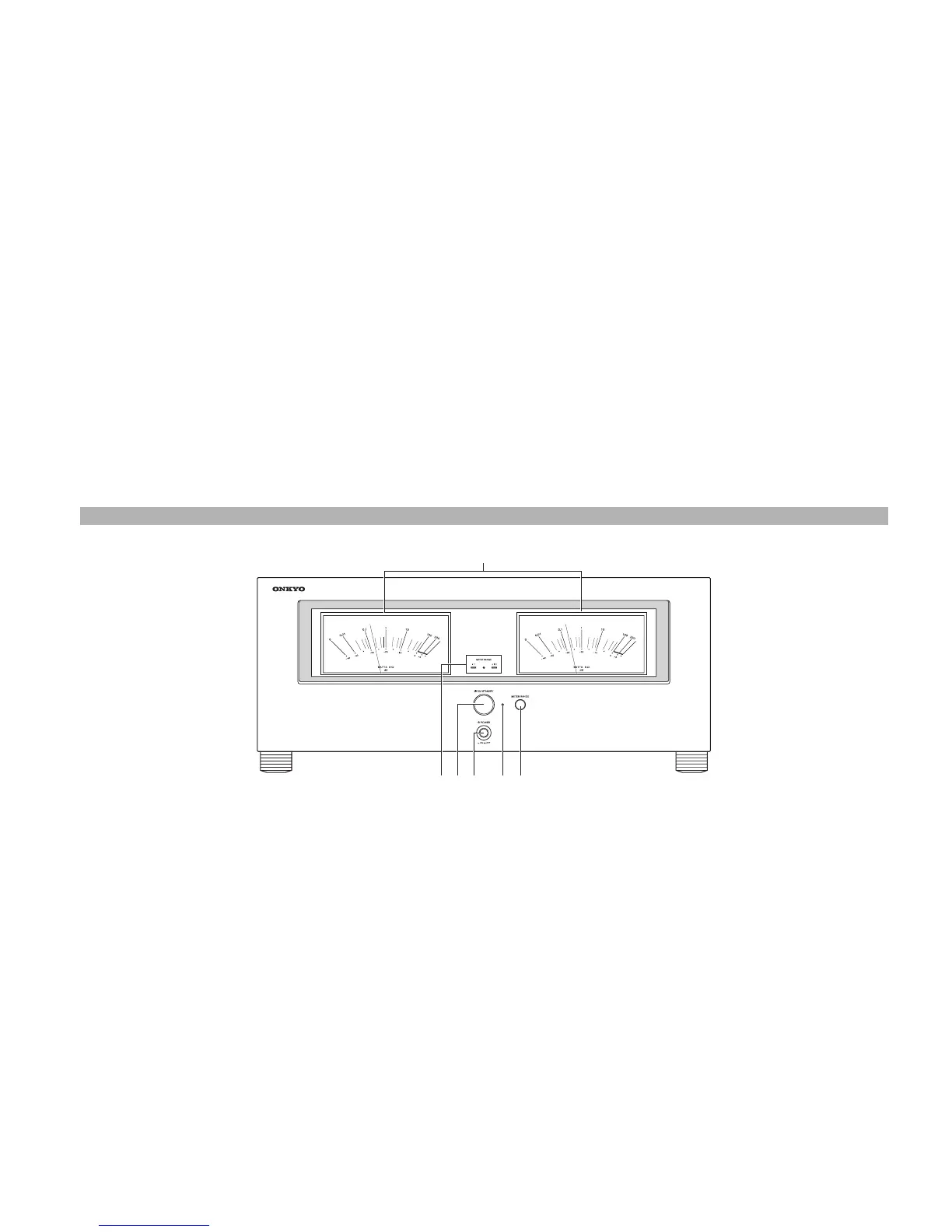

Front Panel
e fc d
b
a

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
