Onkyo M-5000R Instruction Manual

15
En

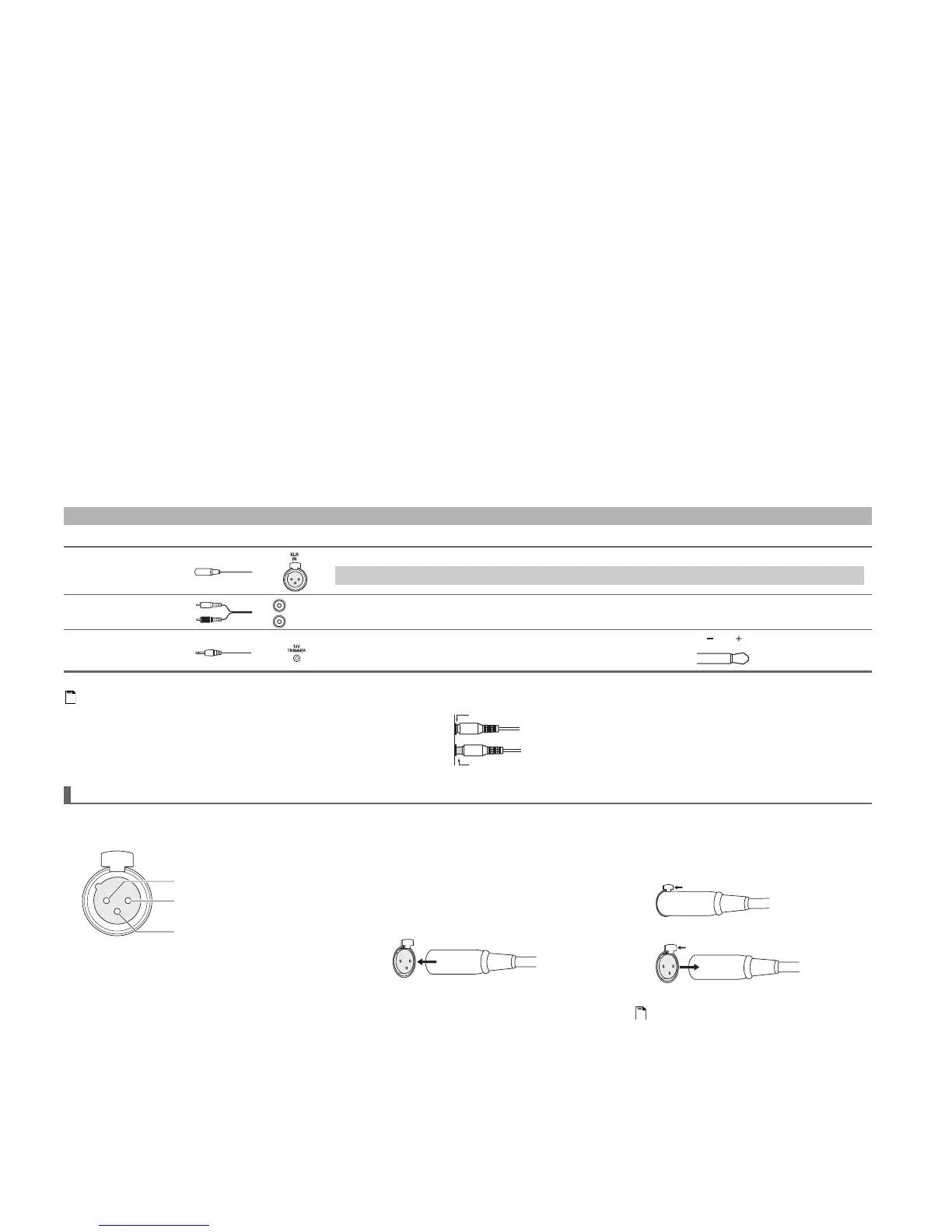

Connections
Connections
Note
• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).
• To prevent interference, keep audio cables away from power cords and speaker cables.
Connect an AV controller or control amplifier with XLR
outputs for high-quality sound.
The pin assignments for this jack are given above. This pin
assignment conforms to the standard adopted by the Audio
Engineering Society. Refer to the instruction manual
supplied with the control amplifier and verify that its
output jack is compatible with the pin assignments for this
jack. The output jack of the AV controller PR-SC5508 is
compatible with the pin assignments for the jack of the
amplifier.
The power amplifier uses the European type XLR jack.
Phase is reversed when an XLR cable is connected to the
control amplifier that uses the USA type XLR jack. In this
case, reverse the polarity of the speaker connection.
Plugging the XLR cable
Match the pins and insert the jack until you hear a “click.”
Make sure that the jack is locked by lightly pulling the
connection cable.
Unplugging the XLR cable
Pull out the connection cable while holding down the
lever.
Note
• When using this XLR connection between the control amplifier
and the amplifier, set the INPUT SELECT switch to the right
side (the XLR input side) to select XLR input.
• Do not connect anything to the RCA-type audio input jack.
Cable and Jacks
XLR This cable carries analog audio. XLR cables are used for better noise immunity and longer cable runs.
Analog audio (RCA) Analog audio connections (RCA) carry analog audio.
Mono mini-plug Use the supplied or commercially available mono mini-plug cable to connect to the 12V
trigger jacks on the other device for linked operation.
The tip polarity of the connectors are as shown in the right.
About XLR Input
Do not connect XLR and RCA at the same time. It may damage the power amplifier.
L
R
White
Red
12 volts positive tip
polarity
Right!
Wrong!
1
2
3
PUSH
2. HOT
1. GND
3. COLD
Connector ground jack: Chassis grounded
1
2
Push
Push

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
