Onkyo M-5000R Instruction Manual

16
En
Tip
• To reduce noise, do not tie the signal cable and power cable
together. Wire them so that they are away from each other.
Note
• Never disconnect the power cord from the power amplifier
while the other end is still plugged into a wall outlet. Doing so
may cause an electric shock. Always disconnect the power cord
from the wall outlet first, and then the power amplifier.
• Turning on the power amplifier may cause a momentary power
surge that might interfere with other electrical equipment on the
same circuit. If this is a problem, plug the power amplifier into a
different branch circuit.
• Do not use a power cord other than the one supplied with the
power amplifier. The supplied power cord is designed
exclusively for use with the power amplifier and should not be
used with any other equipment.

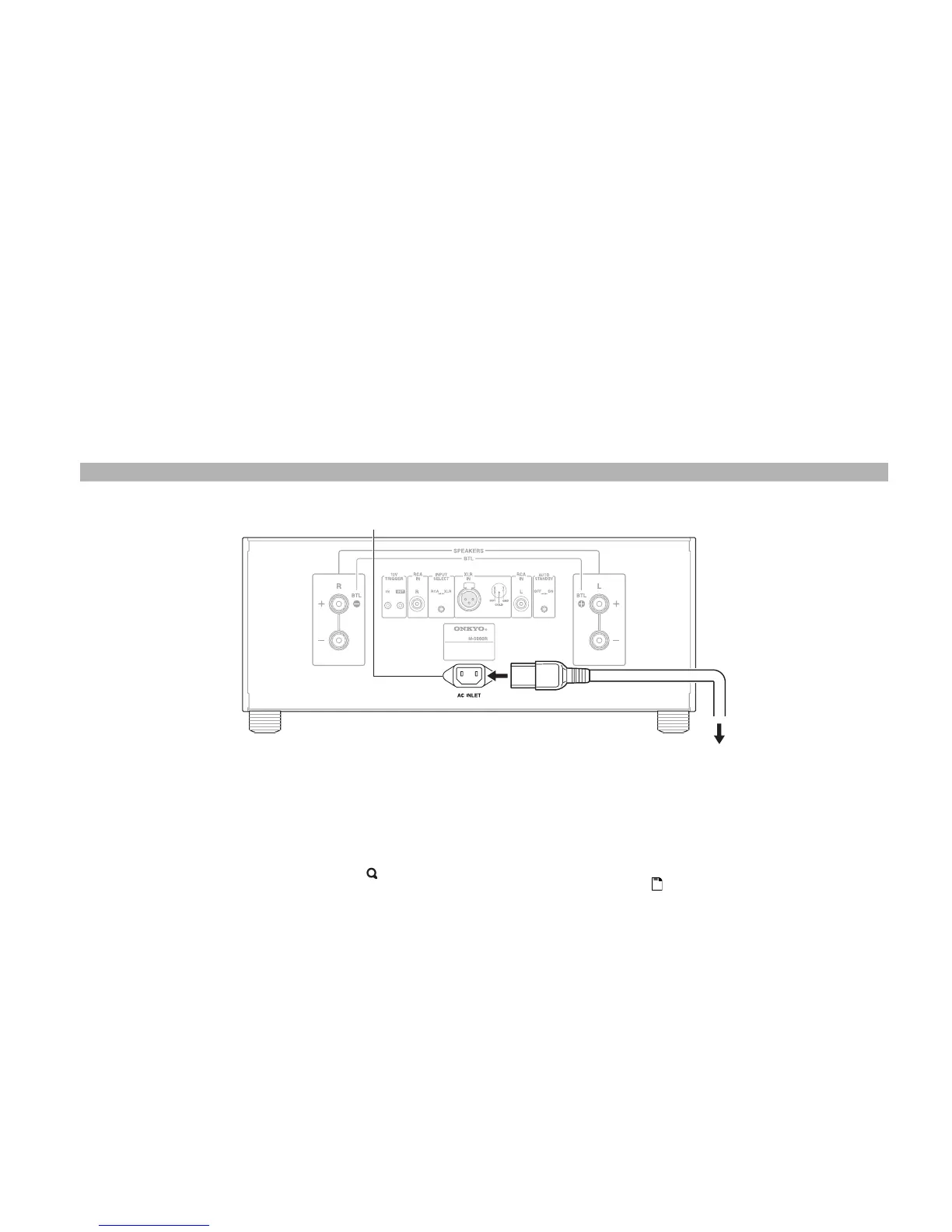

Connecting the Power Cord
AC INLET
Supplied power cord
To an AC wall outlet
(Plug type varies from
country to country.)
1
Make sure that the main power of the power
amplifier is turned off.
2
Connect all of your components.
3
Connect the supplied power cord to the amplifier’s
AC INLET.
4
Plug the power cord into an AC wall outlet.

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
