Onkyo M-5000R Instruction Manual

13
En
a SPEAKERS L/R terminals
b 12V TRIGGER IN/OUT jacks
Connects to the 12V trigger input and output jacks on
the other component to control the power amplifier.
This enables the amplifier to turn on or go into
standby state based on the standby status of the
connected component.
c INPUT SELECT switch
This switch is located between the XLR IN and RCA
IN. Use this switch to select the input type for its
channel. When setting the switch to the left side, the
RCA audio input is selected. When setting the switch
to the right side, the XLR input is selected.
d XLR IN jack
Connect preamplifier with XLR outputs for high-
quality sound.
e AUTO STANDBY switch
You can use the Auto Standby (ASb) function. If the
power amplifier receives no signal for 3 hours, it will
automatically enter standby mode. Once the ASb
function has been activated, the power amplifier will
not automatically turn on even if it receives the signal.
To turn on the power amplifier, press ON/STANDBY
manually. You can also disable the function by setting
this switch to OFF side.
f RCA IN L/R jacks
Connect preamplifier with single-ended outputs.
g AC INLET
The supplied power cord is connected here. The other
end of the power cord should be connected to a
suitable wall outlet.

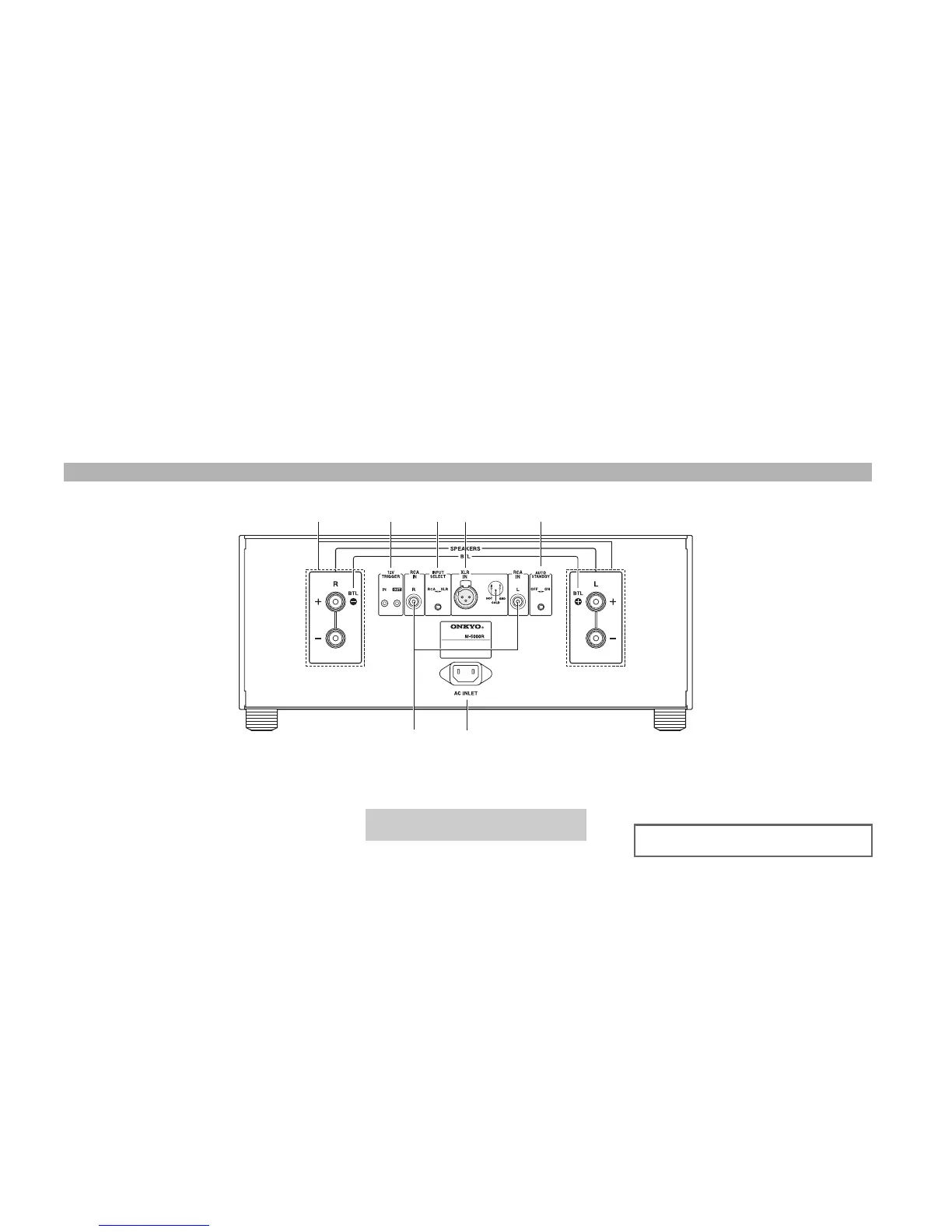

Rear Panel
g
f
a
b
e
d
c
Do not connect XLR and RCA at the same time. It
may damage the power amplifier.
See “Connections” for connection information
(➔ 15 to 19).

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
