Onkyo M-5000R Instruction Manual

21
En
You can switch the power output of speaker terminals
between ×1 (default) and ×10 (10 times).
The number of watts indicated on the meters corresponds
to the actual output level when driving speakers rated at 8
ohms. When driving speakers rated at 4 ohms, the output
is actually twice that shown on the power meters.
When AUTO STANDBY is turned ON side, the power
amplifier will automatically enter Standby mode if the
power amplifier receives no signal for 3 hours.
Default setting: ON (European models), OFF (North
American models)
Once the ASb function has been activated, the power
amplifier will not automatically turn on even if it receives
the signal. To turn on the power amplifier, press
ON/STANDBY manually. You can also disable the
function by setting this switch to OFF side.
Note
• Before entering standby mode with the Asb function, the Off
LED flashes 30 seconds before the ASb function starts running.

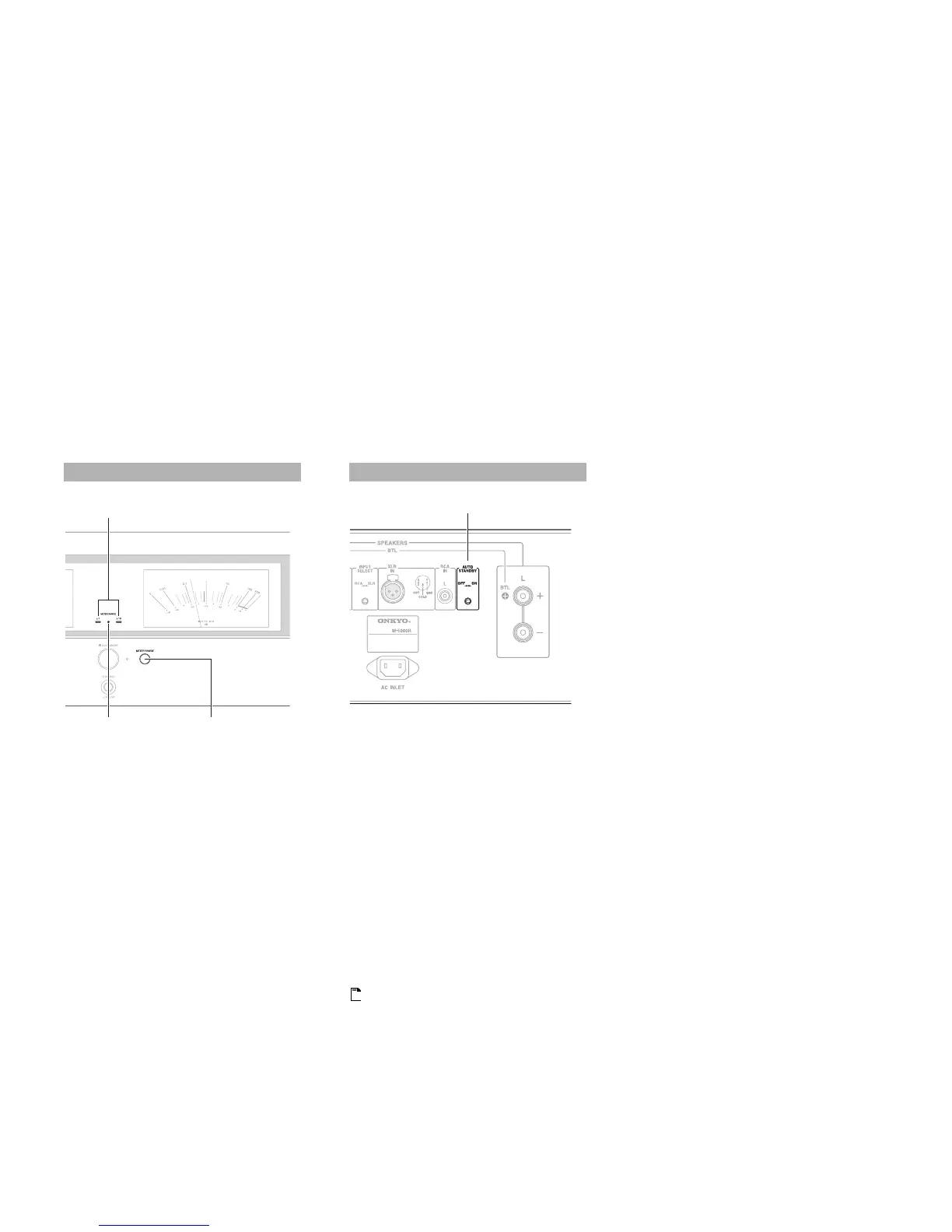

Switching the Power Meter Range
1
Press METER RANGE repeatedly to switch
METER RANGE in the following order:
×1 (default), ×10, Off
The x1, x10 LEDs and the Off LED will light
according to the set status of METER RANGE.
x 1, x 10
METER RANGE
Off LED
Setting Auto Standby (ASb)
1
Set ON/OFF by switching the AUTO STANDBY
switch.
` ON:
ASb enabled.
` OFF:
ASb disabled.
AUTO STANDBY

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
