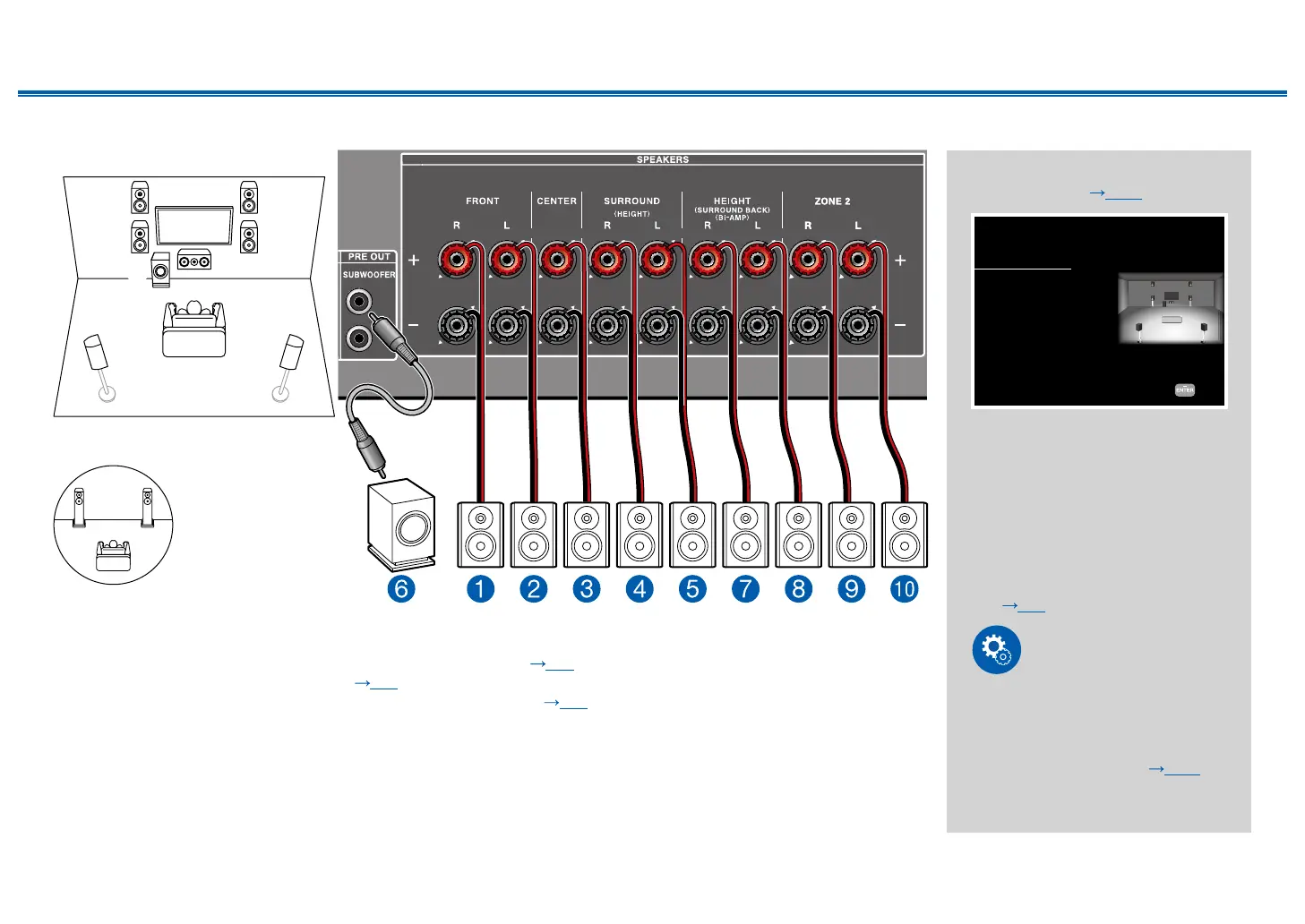

 5.1.2 Channel System + ZONE SPEAKER (For North American and Taiwanese models only)
ZONE 2
bk 9
78
1
3
2
45
6
MAIN ROOM
MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers/Rear High Speakers Installation Example (
p22)
❏ Ceiling Speakers Installation Example ( p23)
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p24)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, di󰀨erent
sources can be played back in both rooms.
• While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.
 "Speaker Setup" settings during
Initial Setup ( p139)
Speaker Setup
Select how many speakers you have.
Next
Speaker Channels
Subwoofer
Height Speaker
Zone Speaker
Zone 2 Lineout
Bi-Amp
Speaker Impedance
5.1.2 ch < >
Yes
Front High
Zone 2
Zone 2
No
6ohms or above
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the
type of height speaker actually
installed.
• Zone Speaker: Zone 2
• Zone 2 Lineout/(Preout): Zone 2
• Bi-Amp: No
• Speaker Impedance: Any value
( p25)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"1. Input/Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p115)
to "Use" on the Setup menu.

Onkyo TX-NR696-S Specifications

General

THX-certified	THX Select
3D	Yes
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Apple docking	-
Product color	Silver
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Receiver type	Surround
Output impedance	470 Ω
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, WAV
HDMI in	7
Digital audio optical in	1
Headphone connectivity	6.3 mm
Number of HDMI outputs	2
Phono inputs (RCA)	4
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package depth	468 mm
Package width	534 mm
Package height	265 mm
Package weight	12500 g
Optical drive included	No

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
