Onkyo TX-RZ1100 User Manual

11
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix

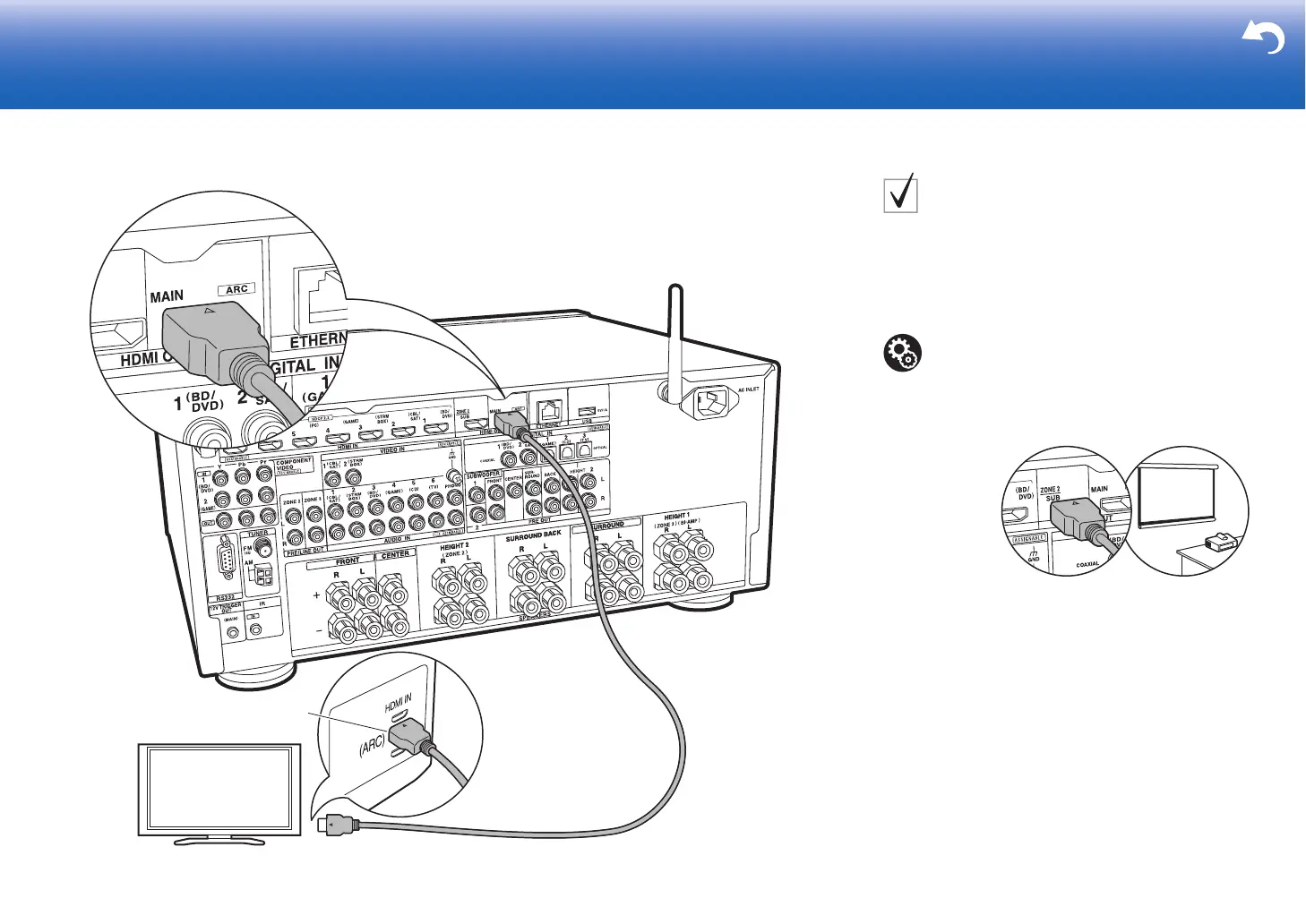

Step3: Connect the TV
HDMI IN (ARC)
1
TV
1 HDMI cable
TV-1 (ARC TV)
This describes the connections for a TV that supports the
ARC (Audio Return Channel) feature. By connecting with
a single HDMI cable, you can not only output the video
input to this unit to the TV, but you can also play the sound
from the TV through this unit. Choose an HDMI IN jack on
the TV that supports ARC when connecting.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (ÄP23)
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (
ÄP22)
in the Initial Setup.
0 Please refer to the TV's operation manual for
directions on connections and setup for the TV.

Onkyo TX-RZ1100 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	108 dB
Total Harmonic Distortion (THD)	0.04 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Package weight	22500 g
Manual	Yes
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
HDMI in	8
Audio (L/R) in	7
USB ports quantity	1
Digital audio optical in	3
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	453 mm
Width	435 mm
Height	201 mm
Weight	19700 g
