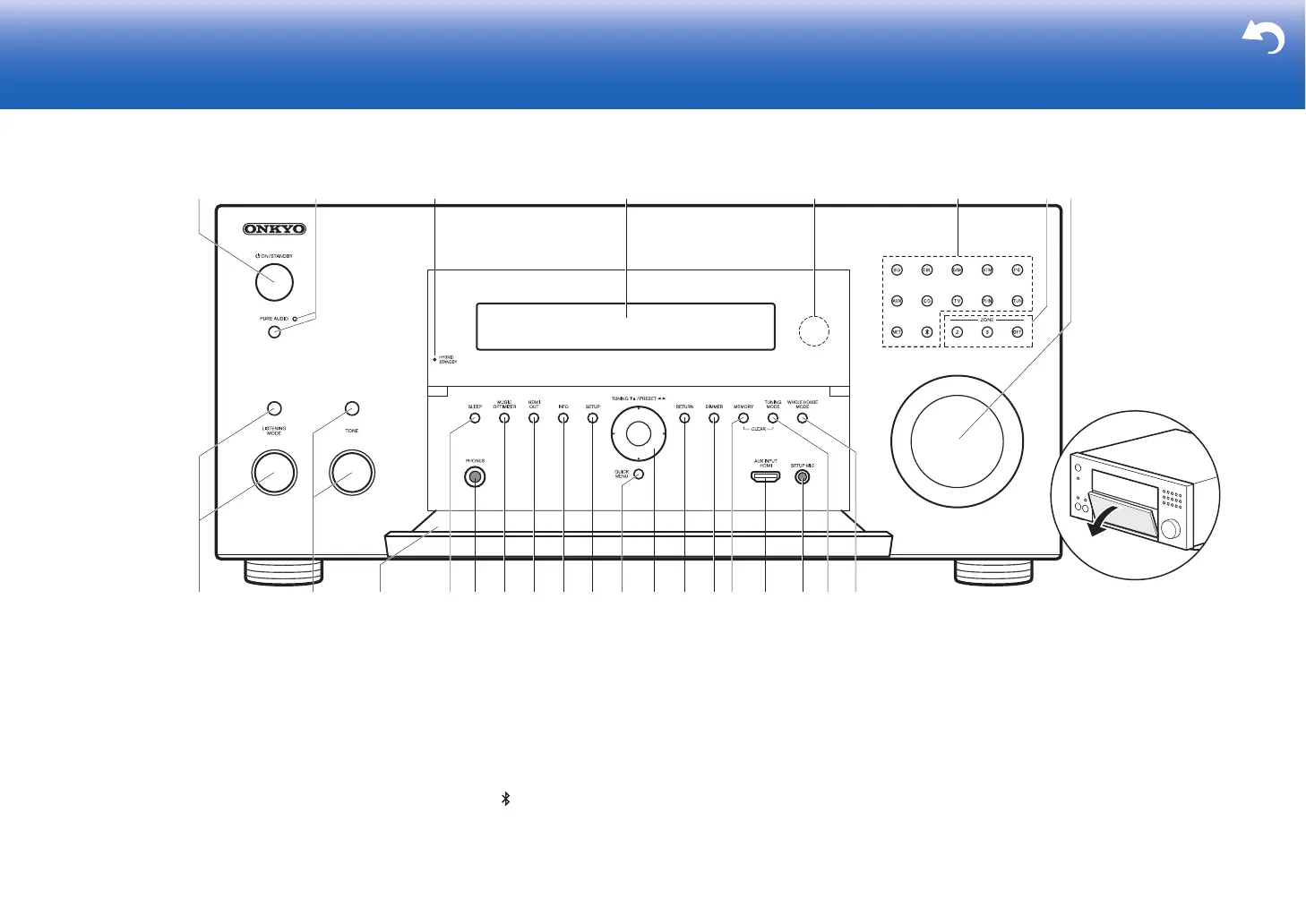

Front Panel
1. Í ON/STANDBY button: Turns the unit on or into
standby mode.
2. PURE AUDIO button/indicator: Switches the unit to Pure
Audio mode. (
ÄP23)
3. HYBRID STANDBY indicator: Lights if the unit enters
standby mode when the features are enabled that
continue to work when this unit is in standby, such as
HDMI Standby Through and Network Standby.
4. Display (
ÄP30)
5. Remote control sensor
6. Input selector buttons: Press the following buttons to
switch the input to be played. The jack allocated to the
buttons at the time of purchase are shown inside the
parentheses ( ).
BD (BD/DVD)
CBL (CBL/SAT)
GAM (GAME)
STM (STRM BOX)
PC (PC)
AUX (AUX INPUT HDMI)
CD (CD)
TV (TV)
PHN (PHONO)
TUN: AM/FM Radio
NET: Playing the Internet Radio, USB, etc.
: BLUETOOTH function
7. ZONE 2/ZONE 3 buttons: Controls the multi-zone
function. (
ÄP26)
OFF button: Switches the multi-zone function off.
8. MASTER VOLUME: Allows you to adjust the volume.
9. (Up) LISTENING MODE button / (Down) LISTENING
MODE dial: Allows you to select the listening mode.
Press the button repeatedly to select a category from
"Movie/TV", "Music", "Game", then turn the dial to
change the mode. (
ÄP23)
10.
(Up) TONE button / (Down) TONE dial: Adjusts the high
tone and low tone. Press the button repeatedly to select
the item to adjust from "Bass" and "Treble", and turn the
dial to adjust.
11.
Front flap
12.
SLEEP button: Set the sleep timer. Select from "30
minutes", "60 minutes", and "90 minutes".
13.
PHONES jack: Stereo headphones with a standard plug
(1/4 inch or ø6.3 mm) are connected.
14.
MUSIC OPTIMIZER button: Turns on/off the Music
12 74356
1716
21 22
19 2018
9101112141513
23 24
25 26
8
11
To Next Page
