Onkyo TX-RZ1100 User Manual

9
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix
Step2: Connect the Speakers
2
1
3/8˝
(10 mm)
ᴧᴧᴧᴧ
1 Speaker cable, 2 Subwoofer cable
Standard Connections

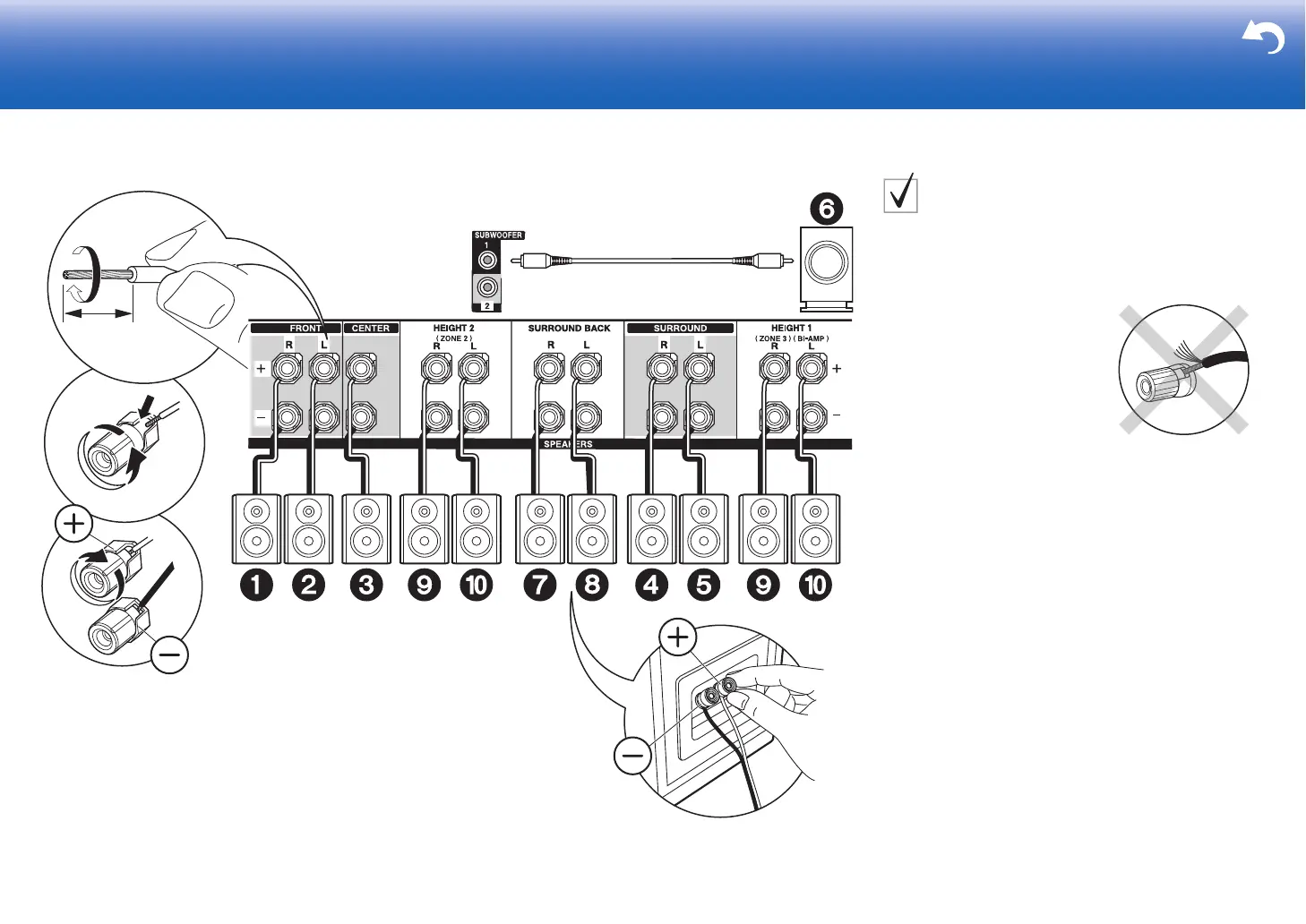

Refer to the illustration to connect the speaker system.
＊ Depending on the combination of speakers, you may need to
connect to other jacks. See "Points to note with speaker
combinations" (ÄP8) for details.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.

Onkyo TX-RZ1100 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	108 dB
Total Harmonic Distortion (THD)	0.04 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Package weight	22500 g
Manual	Yes
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
HDMI in	8
Audio (L/R) in	7
USB ports quantity	1
Digital audio optical in	3
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	453 mm
Width	435 mm
Height	201 mm
Weight	19700 g
