Connecting a Power Amplifier
You can connect a power amplifier to the unit and use the
unit as a pre-amplifier in order to produce a large volume
that cannot be output with the unit only. Connect the
speakers to the power amplifier. For details, refer to the
power amplifier's instruction manual.
■ Connections

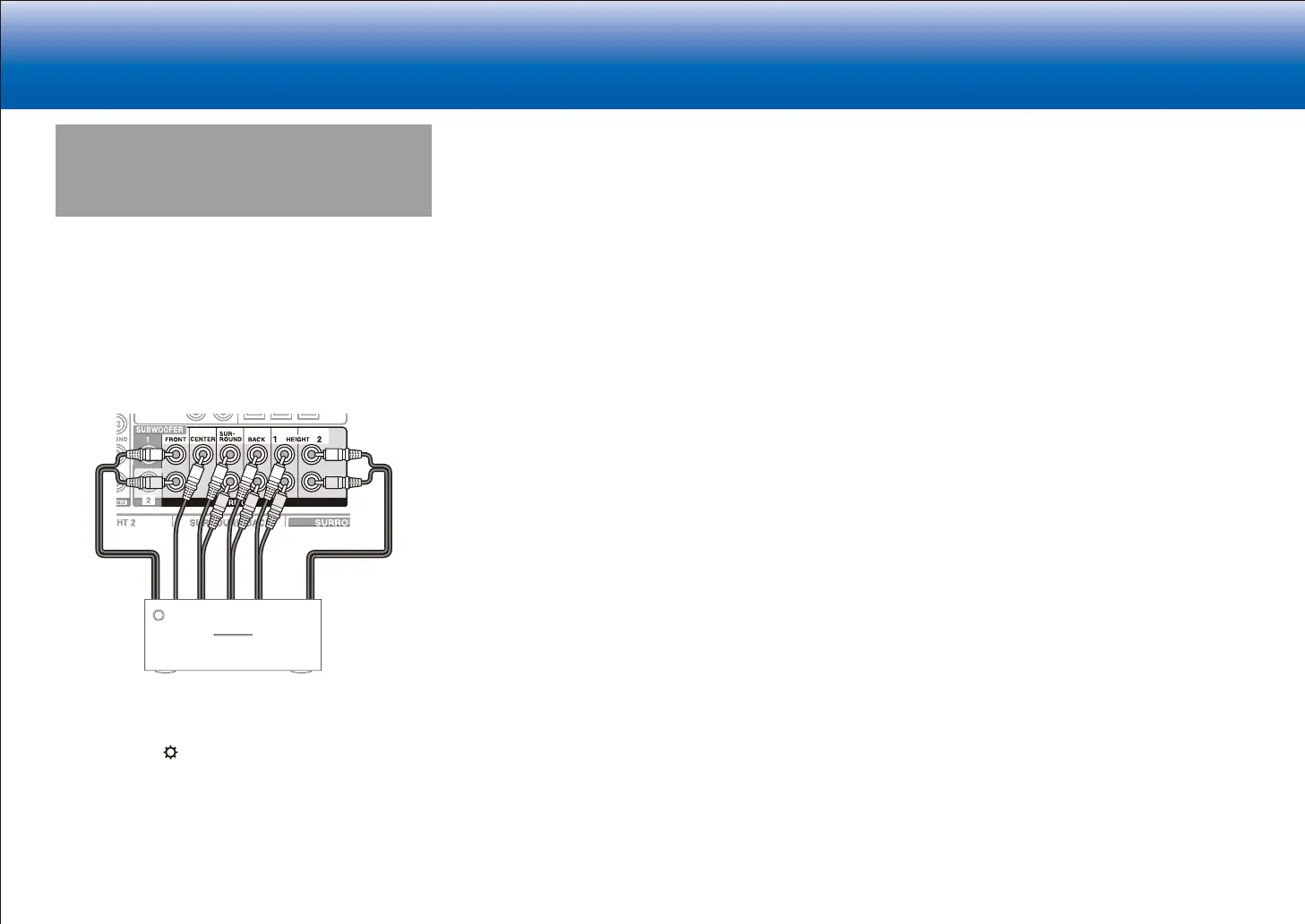

1. Connect as below using the PRE OUT terminals.
Power amplifier
•
Set to suit the number of speaker channels
connected.
−
Press
on the remote controller to display
the Setup menu. Select "2. Speaker" -
"Configuration" - "Speaker Channels" in order
with the cursors, and set the number of speaker
channels.
•
You can reduce power consumption by turning
off the power of the SPEAKERS terminals you
are not using on this unit. Make the setting in "7.
Miscellaneous" - "Preamp Mode" in the Setup menu.

Onkyo TX-RZ1100 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	108 dB
Total Harmonic Distortion (THD)	0.04 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Package weight	22500 g
Manual	Yes
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
HDMI in	8
Audio (L/R) in	7
USB ports quantity	1
Digital audio optical in	3
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	453 mm
Width	435 mm
Height	201 mm
Weight	19700 g
