Onkyo TX-RZ820 User Manual

16

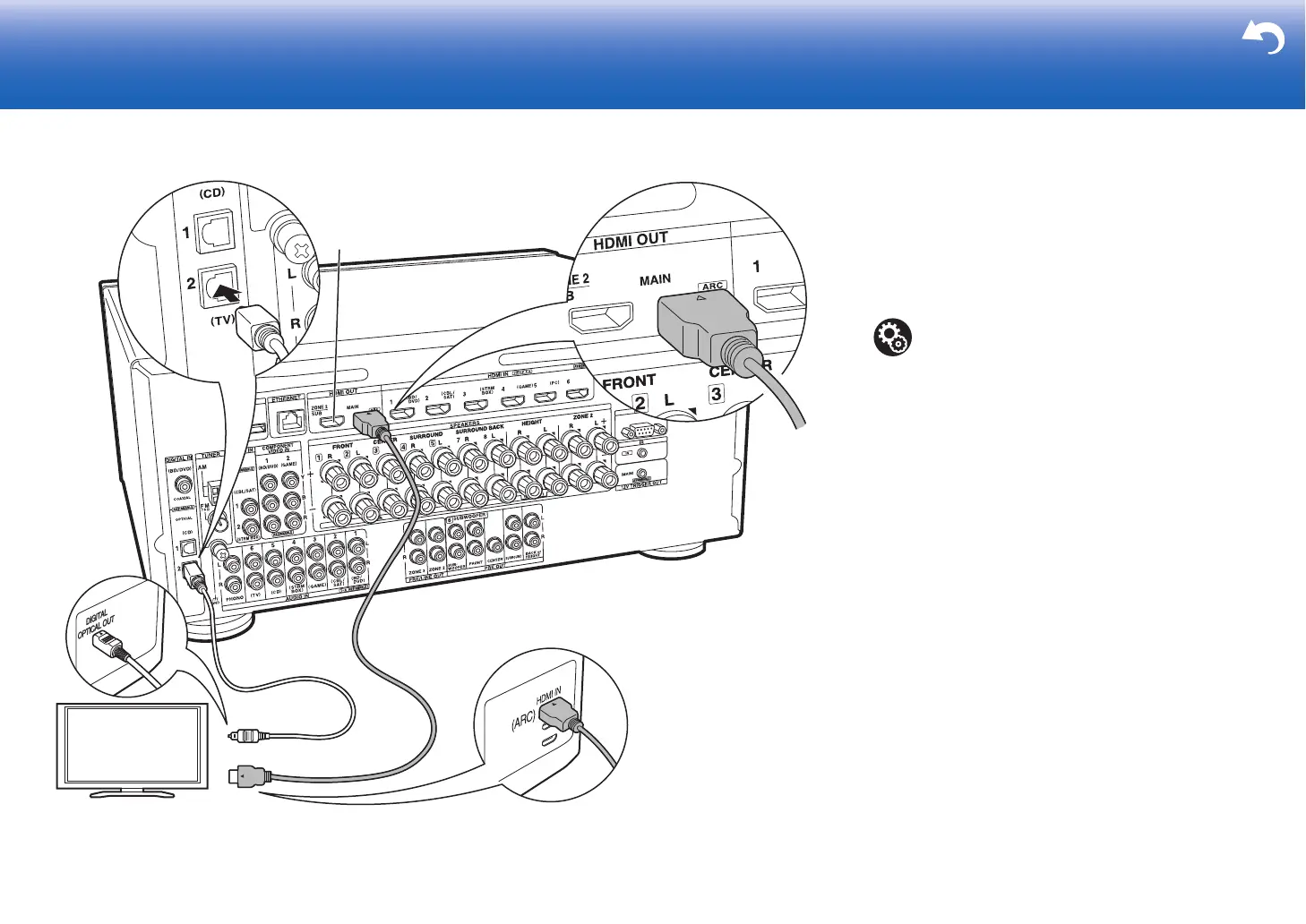

Step3: Connect the TV & AV Components
1. Connect the TV
To ARC TV
For a TV that supports the ARC (Audio Return Channel)
(*1) feature, use an HDMI cable and connect according to
illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature (*1), connect both the HDMI cable in
illustration "a" and the digital optical cable in "b". If the TV
doesn't have a DIGITAL OPTICAL OUT jack, use an analog
audio cable and connect the TV's ANALOG AUDIO OUT
jack to the AUDIO IN TV jack on this unit.
0 Connection with a digital optical cable is not necessary if
you will watch TV through a device such as a cable set-
top box (that is, not use a tuner built into the TV) that you
have connected to the input jack on this unit.
(*1) The ARC feature: This feature transfers TV audio
signals via HDMI cable so that you can play the audio
from the TV through this unit. Connection to an ARC
compatible TV is complete with one HDMI cable. Refer
to the instruction manual for your TV to see if it
supports ARC.
(*2) Another TV or projector can be connected to the HDMI
OUT SUB jack. Press Q (P6) on the remote control and
use "Other" - "HDMI Out" to switch between MAIN and
SUB. Note that this jack does not support ARC.
> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.
TV
*2
a
b
a HDMI cable, b Digital optical cable
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (P25) in
the Initial Setup.
0 Refer to the instruction manual for the TV for TV
connections and instructions regarding settings
for CEC features and audio output.

Onkyo TX-RZ820 Specifications

General

THX-certified	THX Select
Display	-
Product color	Black
Audio decoders	DSD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
Audio amplifier	Yes
Center speaker impedance	16 Ω
HDMI in	7
Remote (IR) input	1
Composite video in	2
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, PLL
Preset stations quantity	40
Internet radio services supported	Deezer, Pandora, Spotify, Tidal, TuneIn
Impedance	6 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	300 W
Dynamic power per channel (4 Ohm)	250 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, PCM, WAV
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Supported video modes	480i, 480p
Headphone connectivity	6.3 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	650 W
Package weight	17000 g
Cables included	AC
Card reader integrated	No

Weight and Dimensions

Depth	395 mm
Width	435 mm
Height	201.5 mm
Weight	14000 g
