Playback
> Before Start > Part Names > Install > Initial Setup >Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.

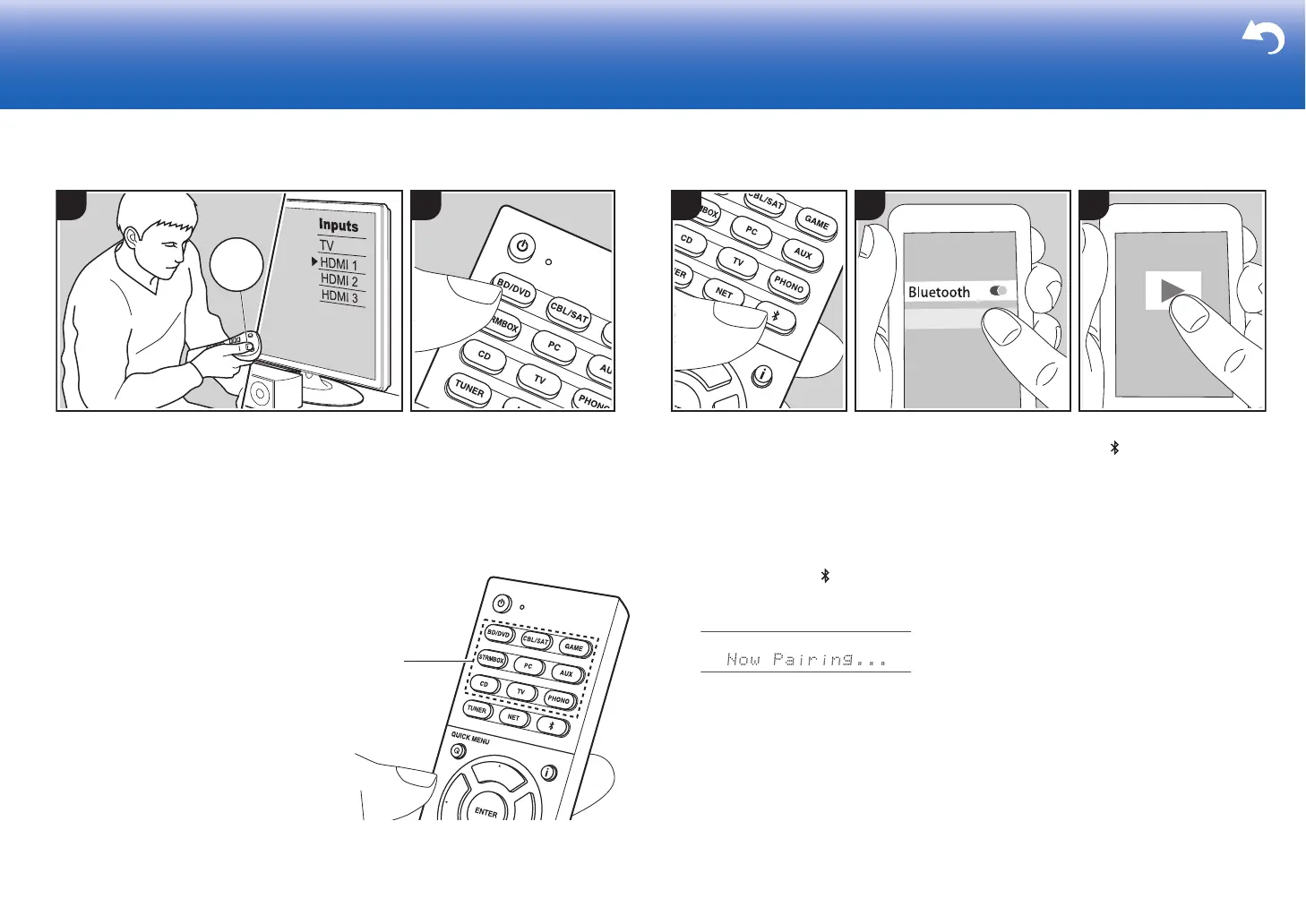

AV Component Playback
Basic Operations
You can play the audio from AV
components such as Blu-ray Disc players
through this unit.
0 When a TV is connected to the HDMI
OUT SUB jack, press Q (P6) on the
remote controller and use "Other" -
"HDMI Out" to switch between MAIN and
SUB.
Perform the following procedure when the
unit is on.
1. Switch the input on the TV to that
assigned to the unit.
2. Press the input selector (a) on the
remote controller with the same name as
the jack to which you connected the
player to switch the input.
For example, press BD/DVD to play the
player connected to the BD/DVD jack.
Press TV to listen the TV's sound.To
play a device connected to the AUX
INPUT HDMI jack on the front panel,
press AUX.
0 When the CEC link function works,
the input switches automatically when
you have connected a CEC compliant
TV and player to this unit using HDMI
connection.
3. Start play on the AV component.
1 2
TV
INPUT
a
BLUETOOTH
®
Playback
You can wirelessly play music on a
smartphone or other BLUETOOTH
wireless technology enabled device.
Perform the following procedure when the
unit is on.
Pairing
1. When you press the button, "Now
Pairing..." is displayed on this unit's
display, and the pairing mode is enabled.
2. Enable (turn on) the BLUETOOTH
function of the BLUETOOTH wireless
technology enabled device, then select
this unit from amongst the devices
displayed. If a password is requested,
enter "0000".
0 This unit is displayed as "Onkyo TX-
RZ820 XXXXXX".
0 To connect another BLUETOOTH
wireless technology enabled device,
press and hold until "Now
Pairing..." is displayed, then perform
step 2. This unit can store the data of
up to 8 paired devices.
0 The coverage area is 48´/15 m. Note
that connection is not always
guaranteed with all BLUETOOTH
wireless technology enabled devices.
Playing Back
1. Perform the connection procedure on
the BLUETOOTH wireless technology
enabled device.
The input on this unit automatically
switches to "BLUETOOTH".
2. Play music. Increase the volume of the
BLUETOOTH wireless technology
enabled device to an appropriate level.
0 Due to the characteristics of
BLUETOOTH wireless technology, the
sound produced on this unit may slightly
be behind the sound played on the
BLUETOOTH wireless technology
enabled device.
OnkyoTX-RZ820XXX
1 2 3

Onkyo TX-RZ820 Specifications

General

THX-certified	THX Select
Display	-
Product color	Black
Audio decoders	DSD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
Audio amplifier	Yes
Center speaker impedance	16 Ω
HDMI in	7
Remote (IR) input	1
Composite video in	2
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, PLL
Preset stations quantity	40
Internet radio services supported	Deezer, Pandora, Spotify, Tidal, TuneIn
Impedance	6 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	300 W
Dynamic power per channel (4 Ohm)	250 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, PCM, WAV
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Supported video modes	480i, 480p
Headphone connectivity	6.3 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	650 W
Package weight	17000 g
Cables included	AC
Card reader integrated	No

Weight and Dimensions

Depth	395 mm
Width	435 mm
Height	201.5 mm
Weight	14000 g
