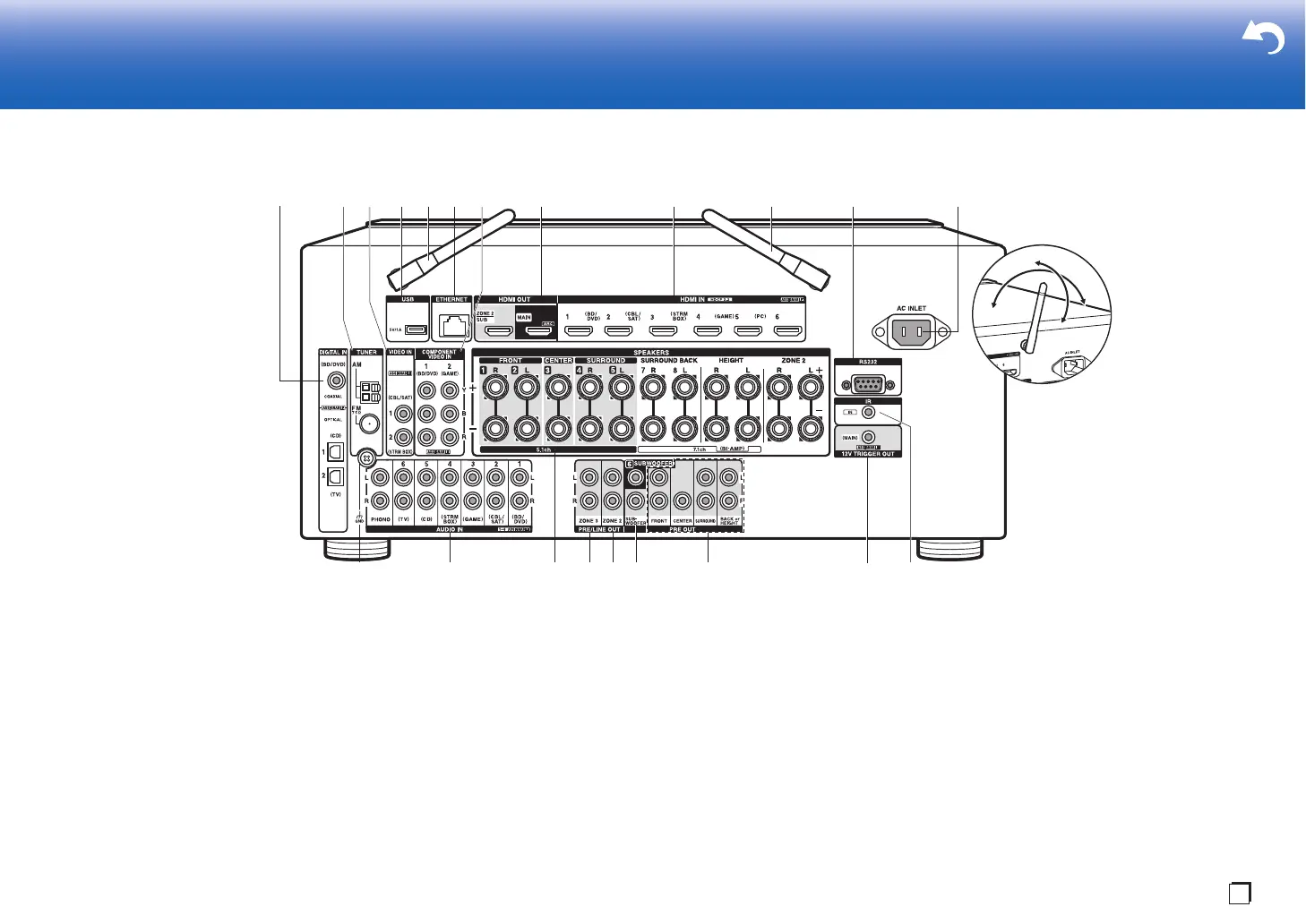

Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals
with a digital optical cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminal: The supplied antennas are connected.
3. VIDEO IN jacks: Input the AV component video signals with an analog video cable.
4. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (5 V/1 A) to USB devices with a USB cable.
5. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH wireless
technology enabled device. Adjust their angles according to the connection status.
6. ETHERNET port: Connect to the network with an Ethernet cable.
7. COMPONENT VIDEO IN jacks: Input the AV component video signals with a component
video cable. (Compatible only with 480i or 576i resolution.)
8. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected
to a monitor such as a TV or projector.
9. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to
an AV component.
10. RS232C port: For connection to the home control system. (*)
11. AC INLET: The supplied power cord is connected.
12. GND terminal: The ground wire of the turntable is connected.
13. AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
14. SPEAKERS terminals: Use a speaker cable to connect multichannel speakers for the
main room and speakers for a separate room (ZONE 2). (North American models are
compatible with banana plugs.)
15. ZONE 3 PRE/LINE OUT jacks: Output audio signals with an analog audio cable to a pre-
main amplifier or power amplifier in a separate room (ZONE 3).
16. ZONE 2 PRE/LINE OUT jacks: Output audio signals with an analog audio cable to a pre-
main amplifier or power amplifier in a separate room (ZONE 2).
> Before Start > Part Names >Install >Initial Setup >Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.
180°
90°
     
   




(*)You can find details in the Advanced Manual.
En

Onkyo TX-RZ820 Specifications

General

THX-certified	THX Select
Display	-
Product color	Black
Audio decoders	DSD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
Audio amplifier	Yes
Center speaker impedance	16 Ω
HDMI in	7
Remote (IR) input	1
Composite video in	2
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, PLL
Preset stations quantity	40
Internet radio services supported	Deezer, Pandora, Spotify, Tidal, TuneIn
Impedance	6 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Pre-out channels	7.2
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	300 W
Dynamic power per channel (4 Ohm)	250 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio formats supported	AIFF, ALAC, DSD, FLAC, PCM, WAV
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Supported video modes	480i, 480p
Headphone connectivity	6.3 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	650 W
Package weight	17000 g
Cables included	AC
Card reader integrated	No

Weight and Dimensions

Depth	395 mm
Width	435 mm
Height	201.5 mm
Weight	14000 g
