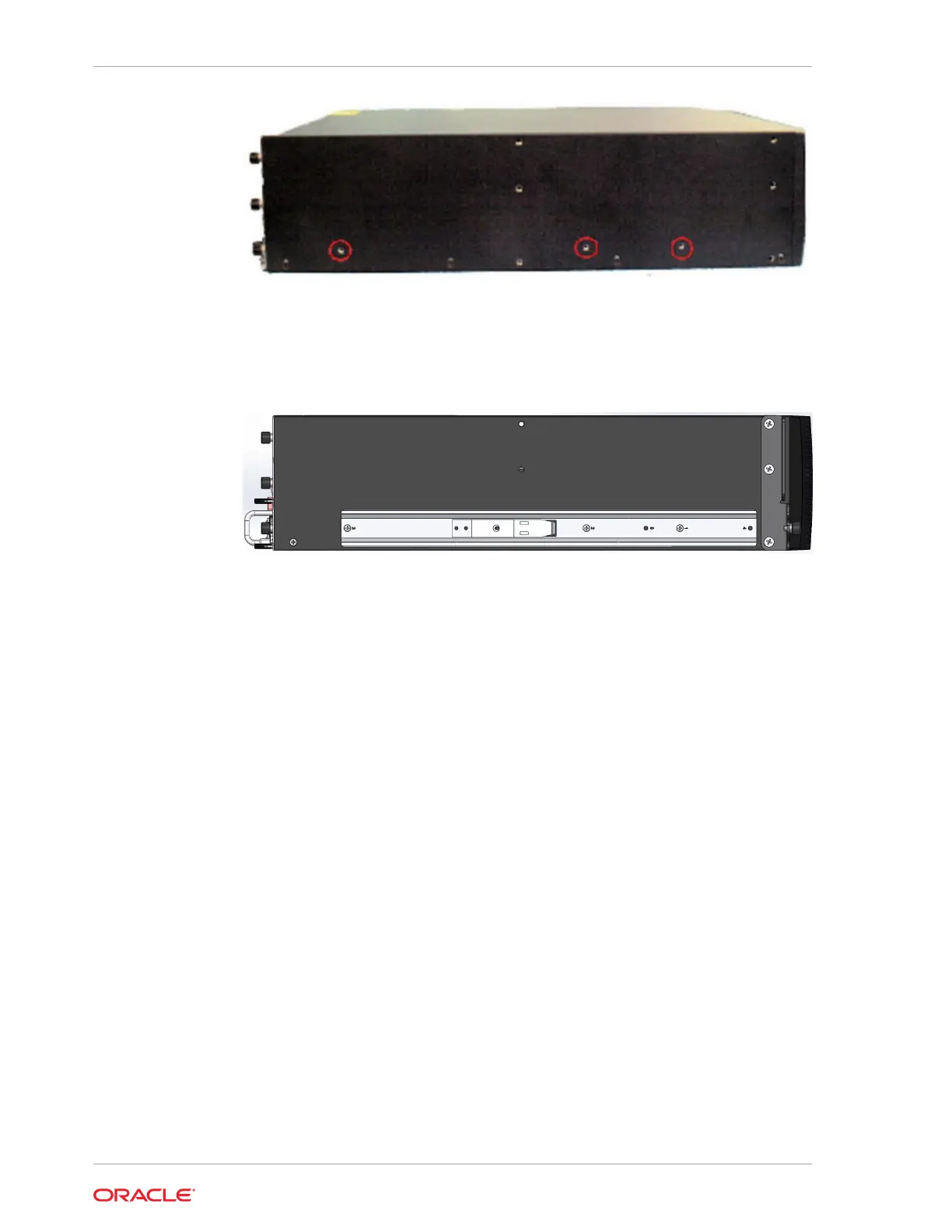

Chassis Slide Rail Mount Points
5. Use 3 x 6-32 x 5/16” screws to secure the chassis slide rail to the chassis. Notice
that the large hole in the slide rail is positioned toward the front of the Acme
Packet 6300/6350.
Chassis Slide Rail Installed
6. Repeat steps 2-5 for the other side of the Acme Packet 6300/6350.
Installing the Chassis in the Rack
You now lift the Acme Packet 6300/6350 and install it into the rack. To prevent
personal injury or damage to the Acme Packet 6300/6350 follow these guidelines:
• This installation requires two people and should not be attempted otherwise.
• Follow your organization’s best practices for lifting and installing heavy
components into an equipment rack.
• Ensure that the Acme Packet 6300/6350 remains supported until you have
completely installed it into the equipment rack.
To install the Acme Packet 6300/6350 in the equipment rack:
1. Lift the Acme Packet 6300/6350 into the correct position in the equipment rack.
2. Insert the chassis slides into the stationary slides.
Chapter 4
Cabinet-Style 4-Post Chassis Installation
4-18
