Installing the Chassis in the Rack
The Acme Packet 6300/6350 is now ready to be installed into the center mount rack.
To prevent personal injury or damage to the chassis, please follow these guidelines:
• This installation requires two people and should not be attempted otherwise.
• Follow your organization’s best practices for lifting and installing heavy
components into an equipment rack.
• Ensure that the Acme Packet 6300/6350 remains supported until you have
completely installed it into the equipment rack.
1. Locate the following components:
• 4 x equipment rack screws
Note:
You may use the #10-32 x 5/8 screws included with the Acme Packet
6300/6350 or you may use your own.
2. Lift the Acme Packet 6300/6350 into the correct position in the equipment rack.
3. Screw the mounting ears on the Acme Packet 6300/6350 into the equipment rack
using four rack screws. One person should hold the Acme Packet 6300/6350
in the correct position, and another person should screw the Acme Packet
6300/6350 in place.

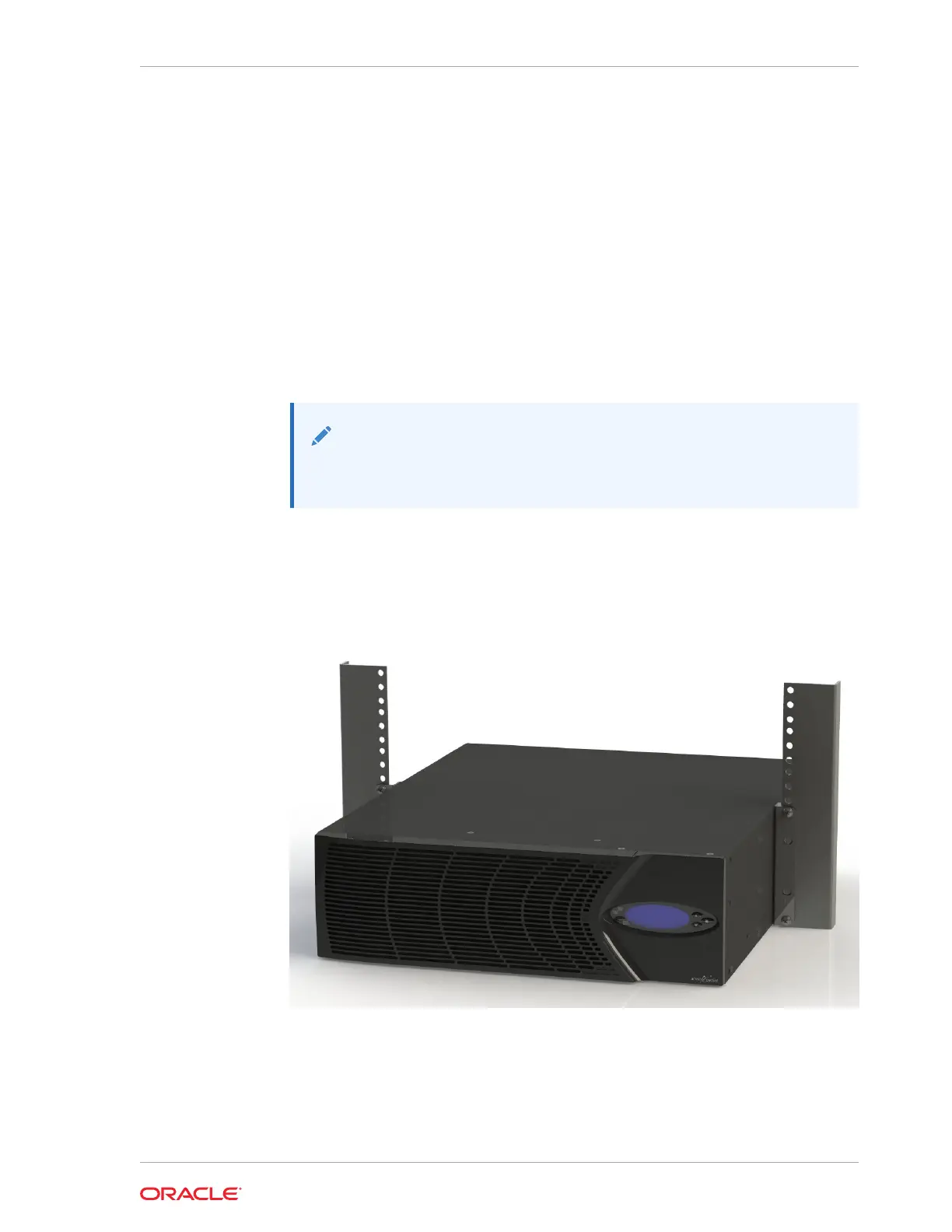

Center-Mounted Acme Packet 6300/6350
Fan Module Installation
The fans are pre-installed in the Acme Packet 6300/6350 when shipped. It is
unnecessary to remove a fan prior to installation. In case the fan needs service or
Chapter 4
Fan Module Installation
4-21
