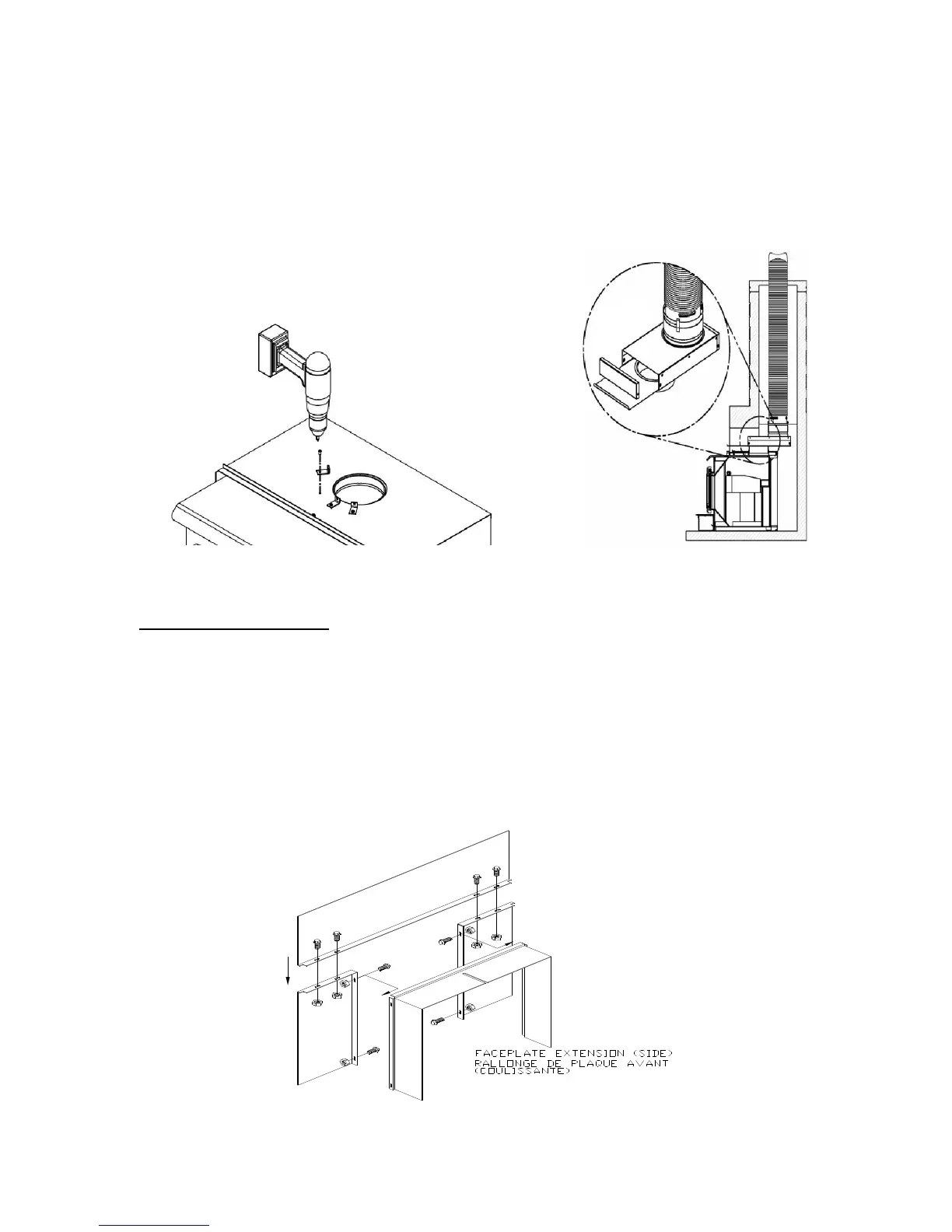

2.8.1.2 If the chimney liner does not align with the insert’s flue outlet:
You can get a liner offset adapter (AC01370), sold separately. If you must install a liner
offset adapter, using a powered driver, secure the three brackets with the three screws
provided 30131 on top of the insert in the three holes in front of the flue outlet. The long
end of the brackets must be attached to the insert. The brackets and screws are in the
insert’s instruction manual kit. Then follow the instructions in the manual provided with the
liner offset adapter kit.
2.9 Faceplate installation
Remove the faceplate panels from their box and assemble according to these faceplate
instructions.
A. Remove the slide from within the air jacket.
B. Place the faceplate face down on a flat, nonabrasive surface (see Figure 2.9a) so that
the sides are a bit towards the middle.
Figure 2.9a
