Using LAN Port

Connect directly

(1) Connection. Plug in the LAN cable to the LAN port in the back of the oscilloscope;

plug the other end into the LAN interface of the computer.

(2) Set the network parameters of the computer. Since the oscilloscope can not

support obtaining an IP address automatically, you should assign a static IP address.

Here we set the IP address to 192.168.1.71.

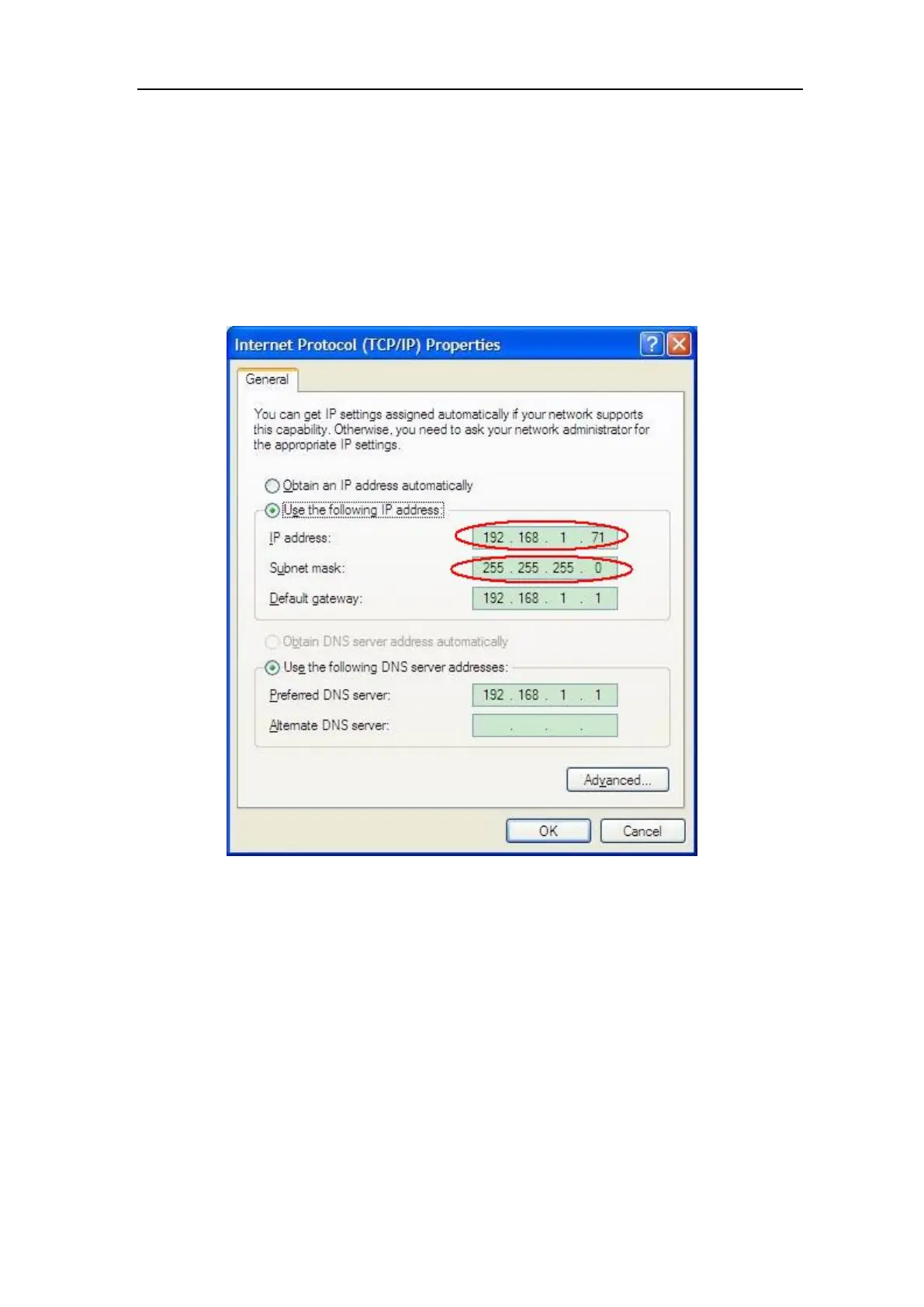

Figure 7-2 Set the network parameters of the computer

(3) Set the network parameters of the Oscilloscope Software. Run the software on the

computer; choose the "Ports-settings" of the "Communications" menu item. Set

"Connect using" to LAN. About the IP, the first three bytes is same as the IP in the

step (2), the last byte should be different. Here, we set it to 192.168.1.72. The range of

the port value is 0 - 4000, but the port which under 2000 is always used, so it is

suggested to set it to the value above 2000. Here, we set it to 3000.
