Gestures in Normal Mode

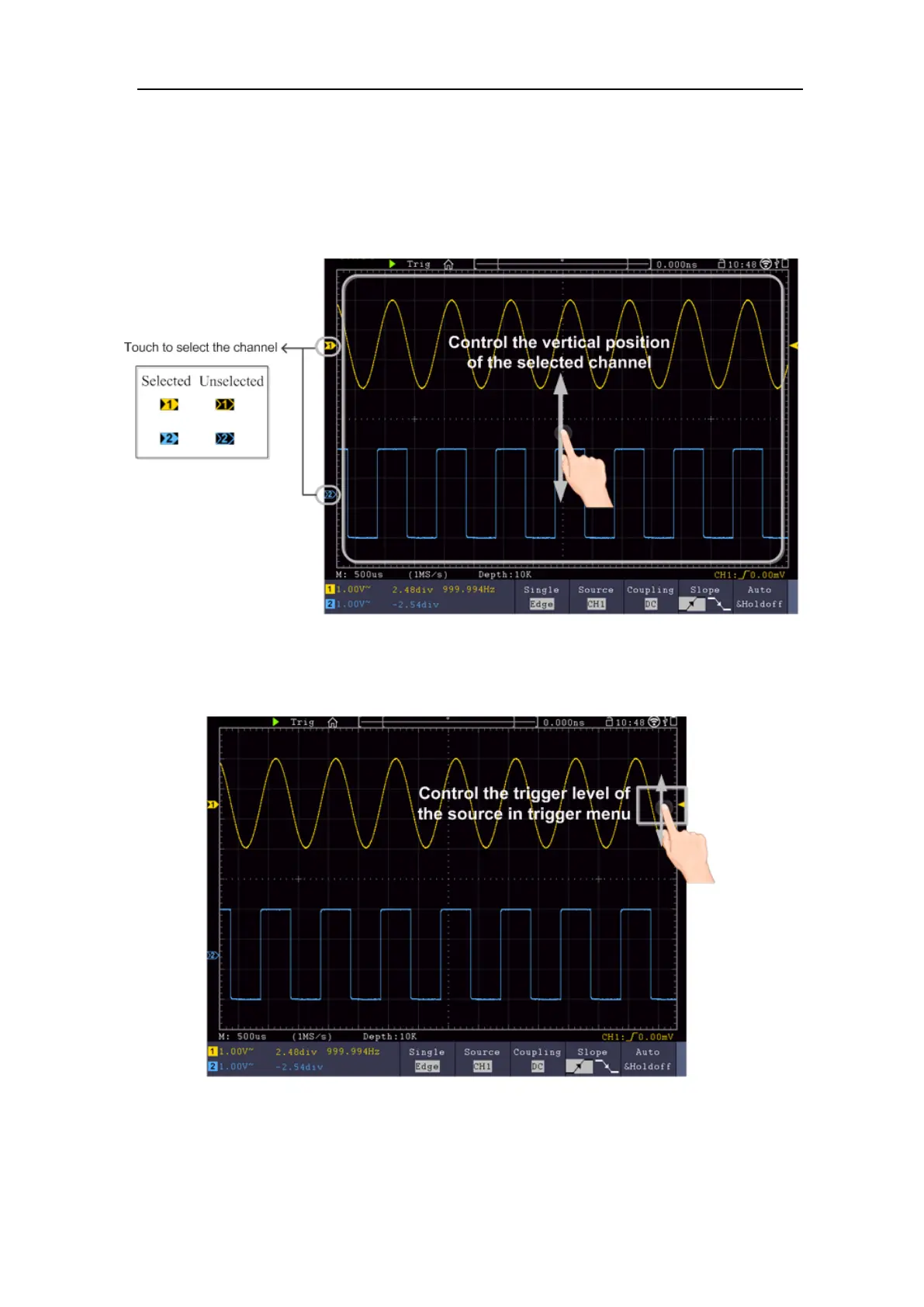

⚫ Select a channel (CH1 or CH2 button): Touch the pointer on the left side of
corresponding channel to make it in selected state.
⚫ Set the vertical position of the selected channel (Vertical Position knob): Swipe up
or down on the screen.
⚫ Set the trigger level of the source in trigger menu (Trigger Level knob): Swipe up
or down on the area nearby the trigger pointer on the right.
⚫ Set the horizontal position (Horizontal Position knob): Swipe left or right on the
display area.
