Owon XDS3000 Series User Manual

7.Communication with PC
120

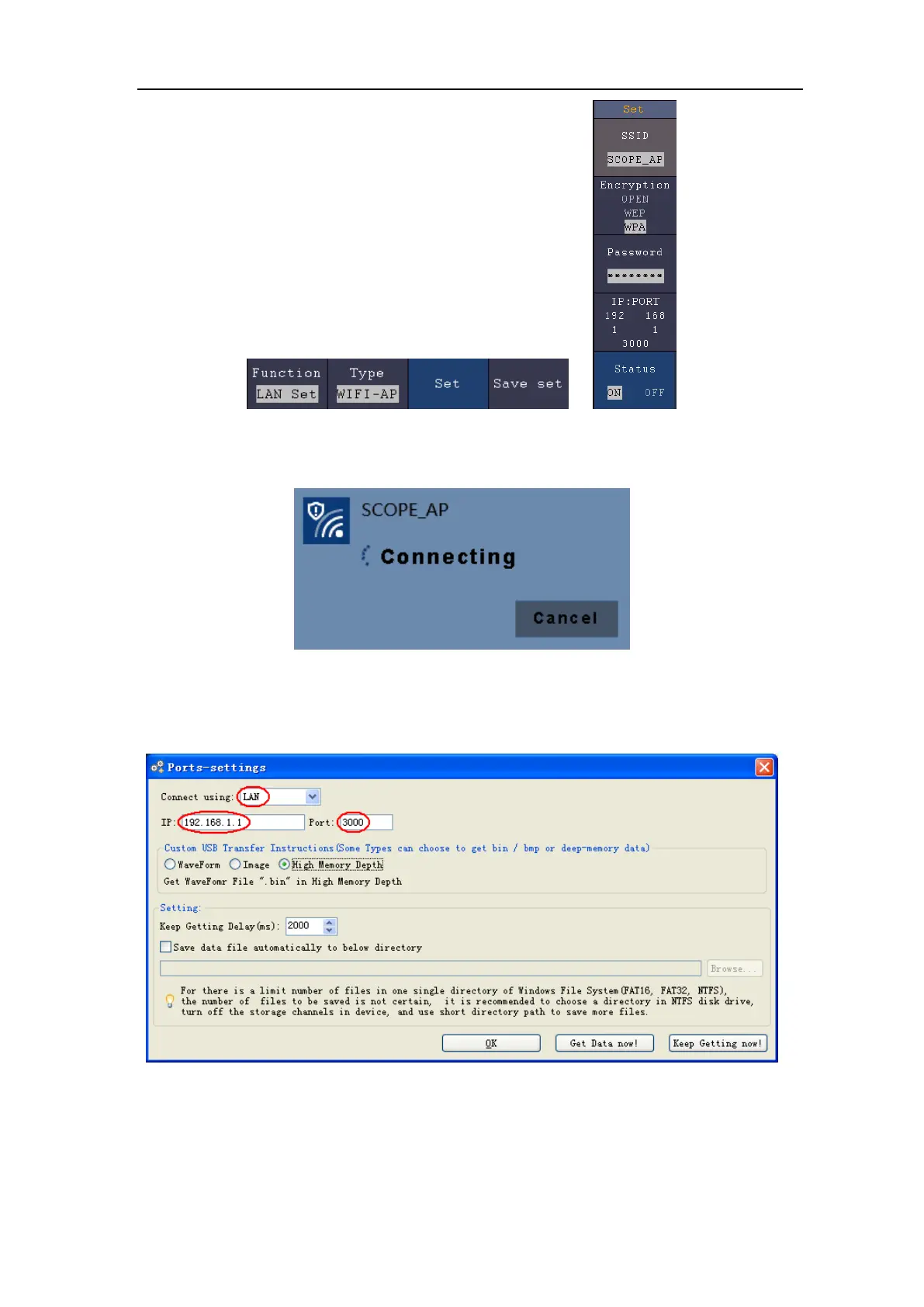

(6) Select Save set in the bottom menu to save current settings.
(7) Set Wi-Fi connection on PC. Enter the Wi-Fi settings on PC, select the oscilloscope
access point to connect, enter the set password.
(8) Set the network parameters of the Oscilloscope Software. Run the software on the
computer; choose the "Ports-settings" of the "Communications" menu item. Set
"Connect using" to LAN. Set IP and Port to the same value in the oscilloscope in the
step (4). If you can get data normally, the connection is successful.
Figure 7-8 Set the network parameters of the Oscilloscope Software
Connect with PC as Wi-Fi Station
The oscilloscope and PC should be on the same network (LAN).
(1) In the oscilloscope, push the Utility button. Select Function in the bottom menu.
