- 153 -
Connecting to other equipment
[PLAYBACK] Mode: ¸
Connecting to other equipment

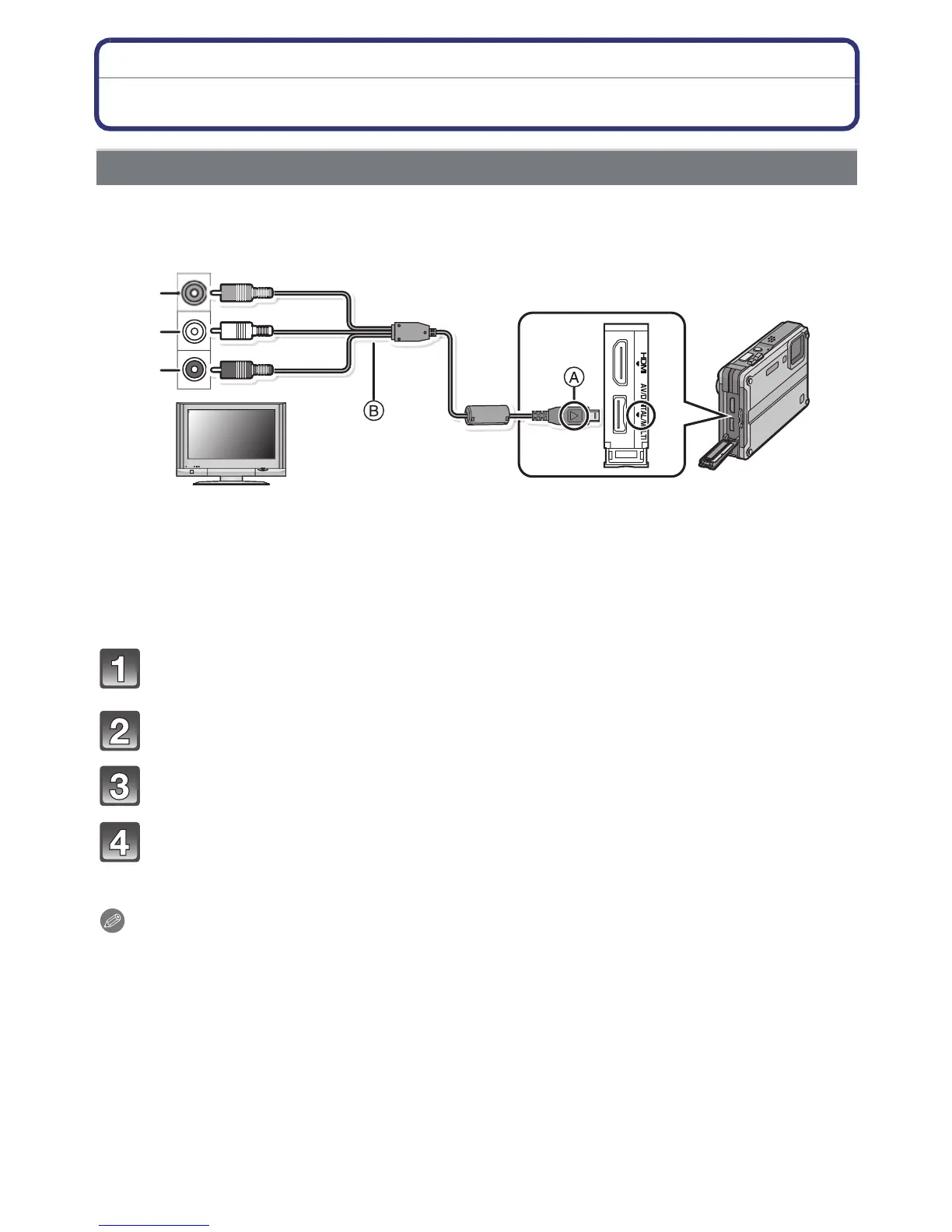

Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P39)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
3 Red: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
Connect the AV cable B (supplied) to the video input and the audio
input sockets on the TV.
Connect the AV cable to the [AV] socket on the camera.
Turn the TV on and select external input.
Turn the camera on and then press [(].
• Normal playback is displayed automatically when the power is turned on by pressing
and holding the [
(] button.
Note
•
Depending on the [ASPECT RATIO], black bands may be displayed on the top and bottom or
the left and right of the pictures.
• Do not use any other AV cables except the supplied one.
• Read the Operating Instructions for the TV.
• When you play back a picture vertically, it may be blurry.
• Audio will be played back in monaural.
Playing back pictures using the AV cable (supplied)
To Next Page
