22

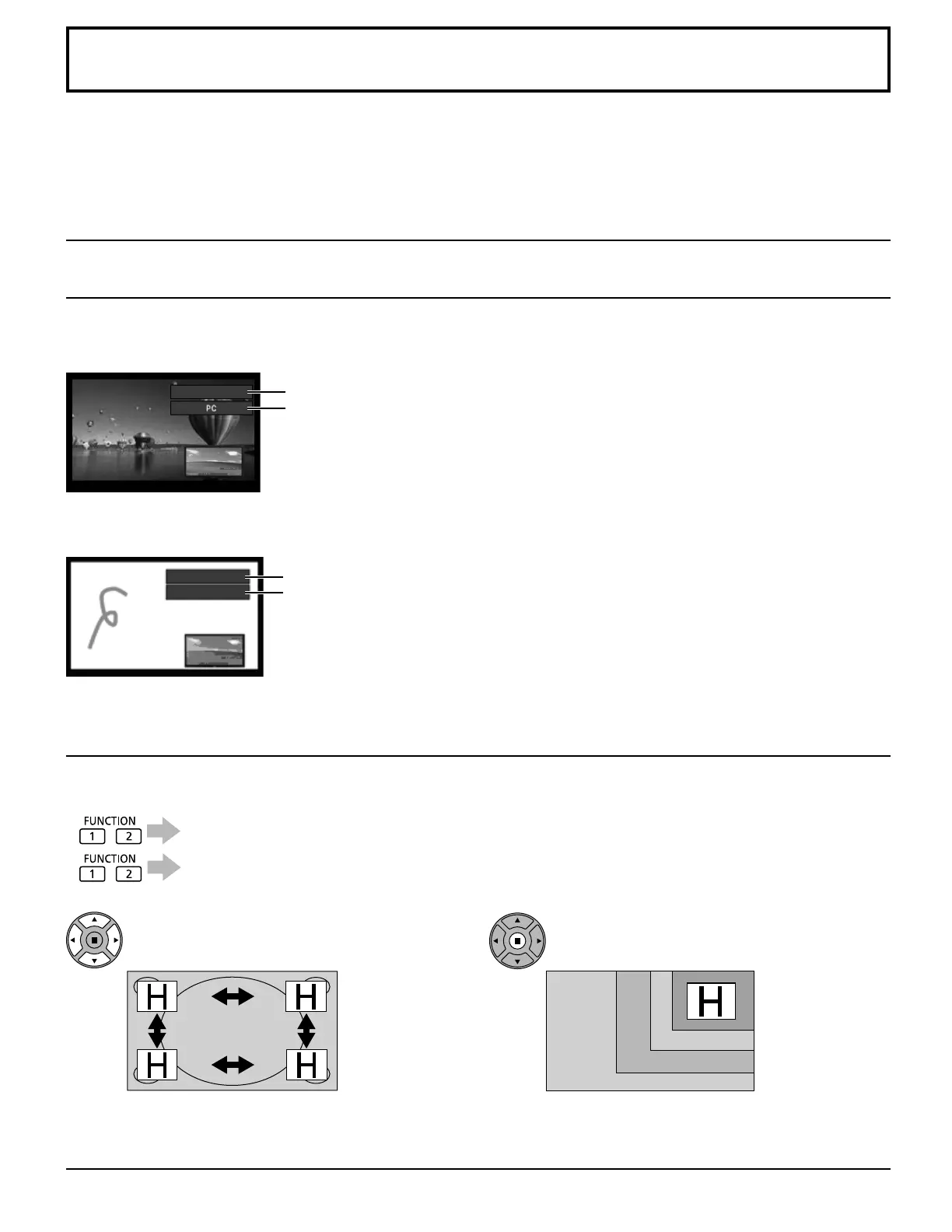

MULTI PIP
You can display two pictures, such as a video image and computer image, in a two-screen display.
Notes:
• If “Input lock” in Options menu is set to other than “Off”, two screen display isn’t available (see page 53).
• 2k1k signals that are received with the Dual Link HD-SDI Terminal Board (TY-FB11DHD) cannot be displayed in two-
screen display.
MULTI PIP SETTINGS
Set the functions and mode for two-screen display in “MULTI PIP SETTINGS” in the SETUP menu. (see page 38)
PIP MODE
There are two modes for two screen display:
PIC IN PIC
Displays two input images combined.
SLOT INPUT
Main screen input
Sub screen input
PIC IN WHITEBOARD
Displays the built-in WhiteBoard with the other input image combined.
WHITEBOARD
PC
Main screen is fi xed to WHITEBOARD.
Inputs supported for the sub screen: HDMI/DVI/COMPONENT/PC/VIDEO
Note:
SLOT INPUT and NETWORK cannot be displayed on the sub screen.
Note:
SD signal is displayed in 4:3 mode on the sub screen.
Using Two Screen Display
Set “MULTI PIP” in “MULTI PIP SETTINGS” to “ON” (see page 38).
Two screen display appears.
Using the FUNCTION button
ON/OFF of “MULTI PIP” switches.
“MULTI PIP SETTINGS” menu appears.
Switching Sub Screen Position Changing the Size of Sub Screen
Press to switch the sub screen position. Press to change the size of the sub screen.
Note:
Alternatively, “SUB SCREEN SIZE” and “SUB SCREEN POSITION” in “MULTI PIP SETTINGS” can be used for the same
operation (see page 38).
The following three system inputs are combined:
A SLOT INPUT/NETWORK
B HDMI/DVI/COMPONENT/PC
C VIDEO
Note:
Two screen display cannot be displayed with the same system
inputs such as HDMI―DVI combined.
Note:
Please use the "FUNCTION BUTTON SETTINGS" to
set the FUNCTION button (see page 46).
