1. Specifications
1-8. High Power Type PSU : VL-PS2410
Role of the High Power Type PSU
Features
High power type PSU which is suitable for apartment system.
Input : 220-240 VAC.
Output : 24 VDC. / 2.5A
- Up to 6 outputs. Total output current < 2.5A
Mountable on a DIN rail or attach to a wall directly.
(1)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(2)

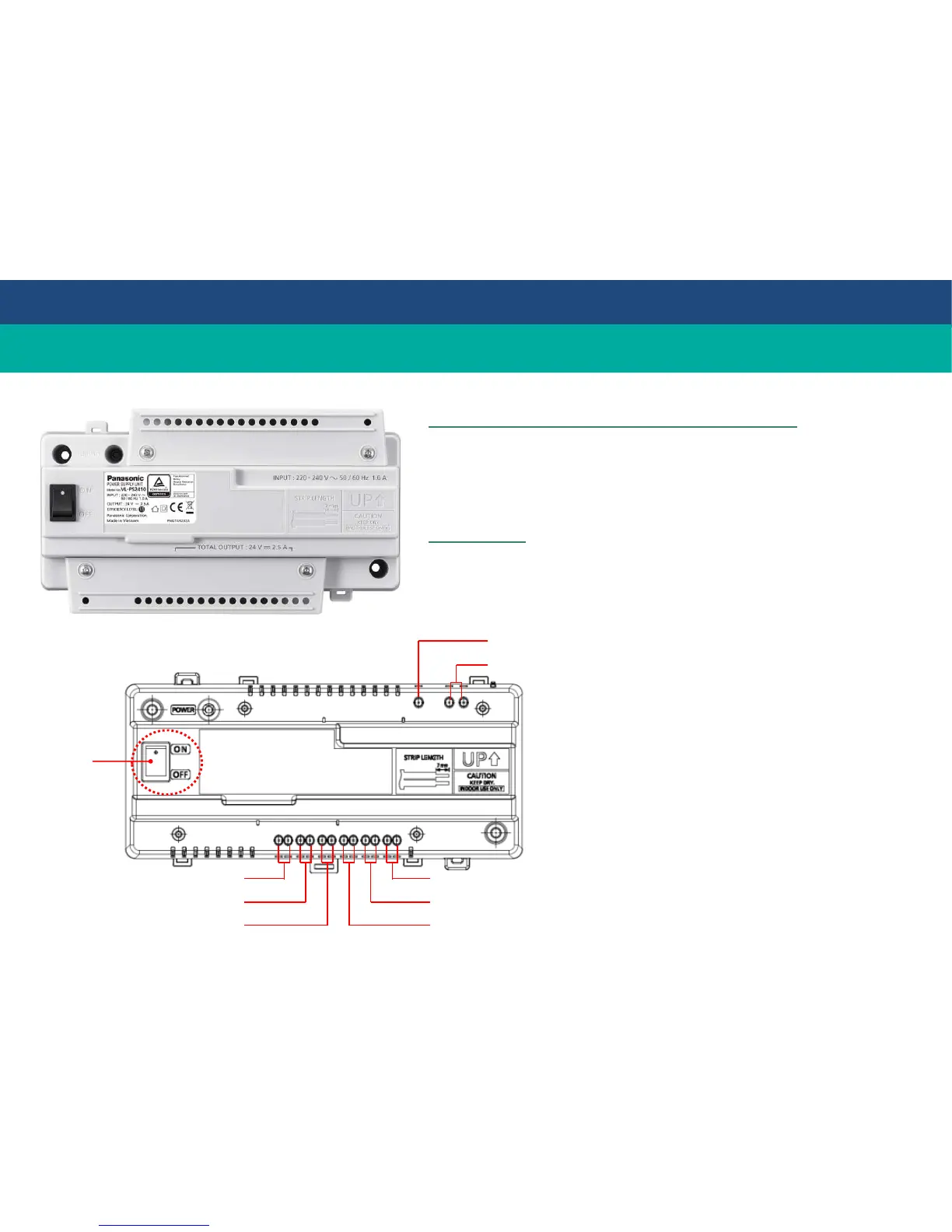

(1) Power Switch
(2) Terminal for Ground
(3) Terminal for AC input
(4) Terminal for DC output 1
(5) Terminal for DC output 2
(6) Terminal for DC output 3
(7) Terminal for DC output 4
(8) Terminal for DC output 5
(9) Terminal for DC output 6
