Panasonic VL-MWD501 User Manual

IP Video Intercom Product
2. Specifications
4-3. Setting for Lobby Station
4. Installation

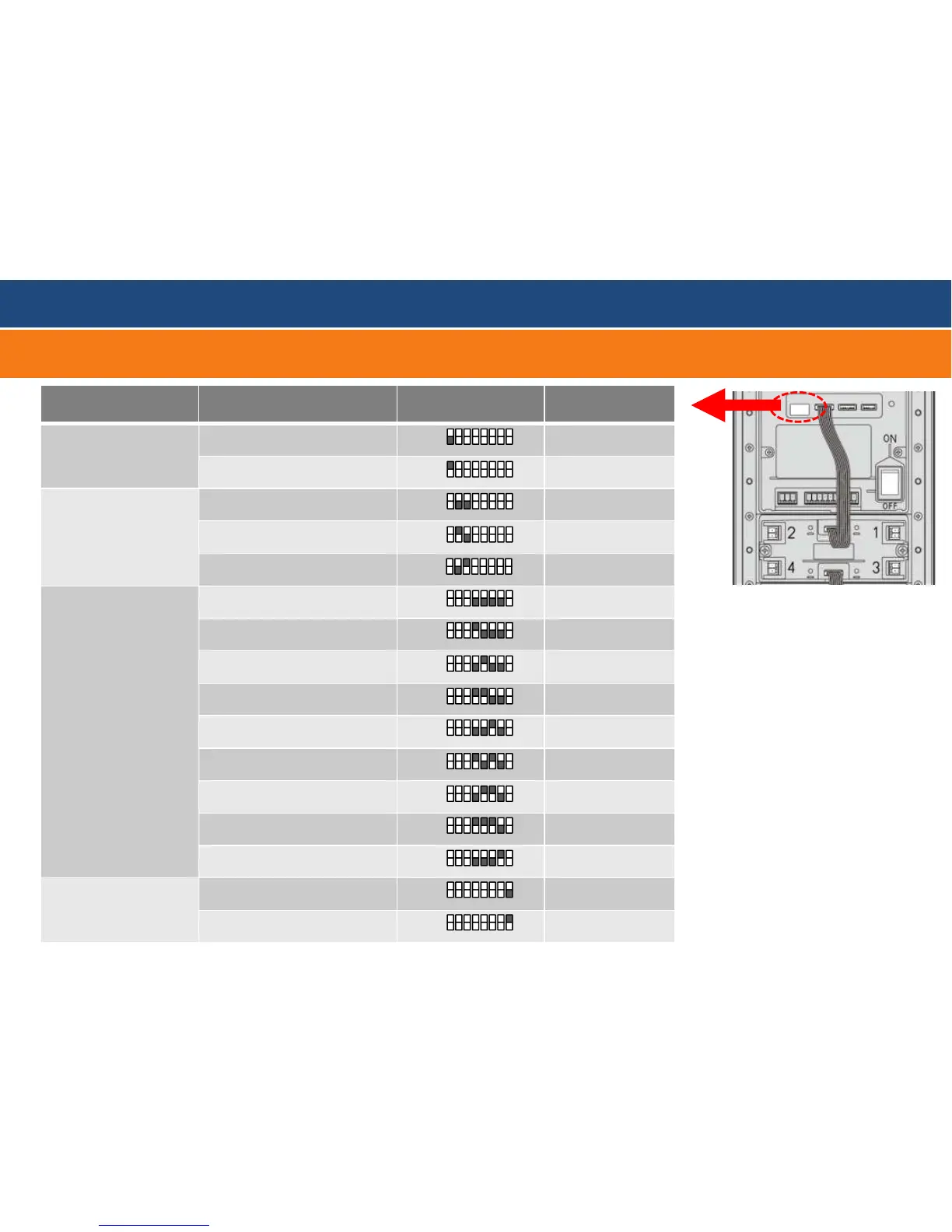

Setting DIP switch
Wiring Method
Star shape wiring
bit1 : 0
Bus wiring
bit1 : 1
Key Backlit in
Standby-Mode
Turns on in dark condition
bit 2-3 : 00
Always On
bit 2-3 : 10
Always Off
bit 2-3 : 01
Audio guidance
Language
( Door Opening )
No Audio Guidance
bit 4-7 : 0000
English
bit 4-7 : 1000
German
bit 4-7 : 0100
French
bit 4-7 : 1100
Spanish
bit 4-7 : 0010
Italian
bit 4-7 : 1010
Dutch
bit 4-7 : 0110
Arabic
bit 4-7 : 1110
Persian
bit 4-7 : 0001
Monitoring
( from R/M )
Enable Monitoring
bit8 : 0
Disable Monitoring
bit8 : 1
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
30
**If the extension box (V703) will be applied,
set this switch to OFF to disable monitoring.
