2. Specifications
4-10. Room No. Setting -3 (Bus Wiring)
4. Installation
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32

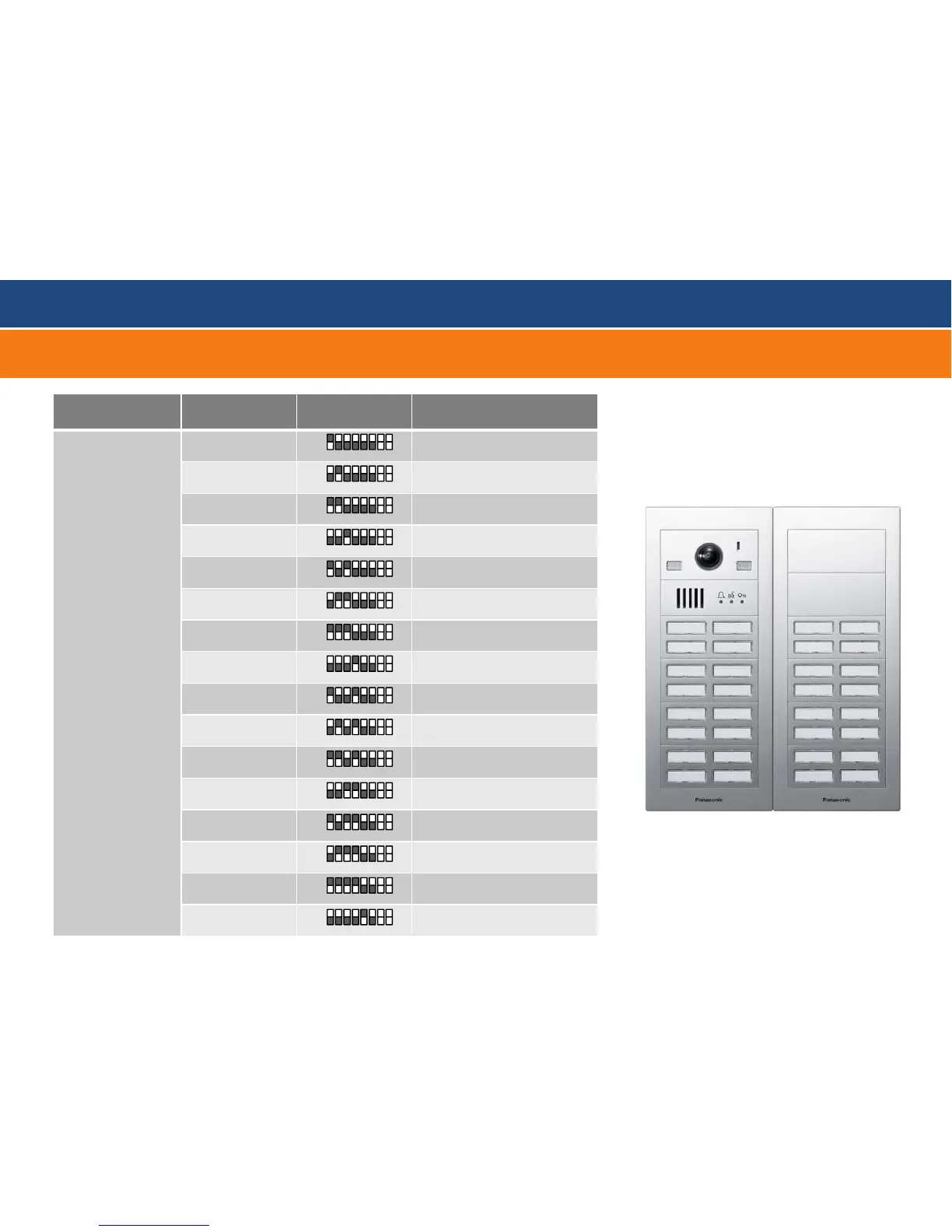

Setting DIP switch
Room Number
Setting
Button #1
bit1-6 : 100000
Button #2
bit1-6 : 010000
Button #3
bit1-6 : 110000
Button #4
bit1-6 : 001000
Button #5
bit1-6 : 101000
Button #6
bit1-6 : 011000
Button #7
bit1-6 : 111000
Button #8
bit1-6 : 000100
Button #9
bit1-6 : 100100
Button #10
bit1-6 : 010100
Button #11
bit1-6 : 110100
Button #12
bit1-6 : 001100
Button #13
bit1-6 : 101100
Button #14
bit1-6 : 011100
Button #15
bit1-6 : 111100
Button #16
bit1-6 : 000010
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
39
