ADDITIONAL DEVICES
Blocking BTR-101 radio relay is optionally available for Pandora LIGHT PRO. Blocking
radio relay with built-in accelerometer should be placed in the engine compartment.
Herewith zone of built-in aerial 2,4 GHz should not be shielded. Provide a rigid
fastening to the car body or to the fixed wirings. It is forbidden to hide the module in
wiring. To save energy, radio relay power is connected to the ignition. Radio relay is
normally closed and has a full set of contacts. Blocking is carried out on unauthorized
movement.
Programming of radio relay is performed on level 6 or 7.

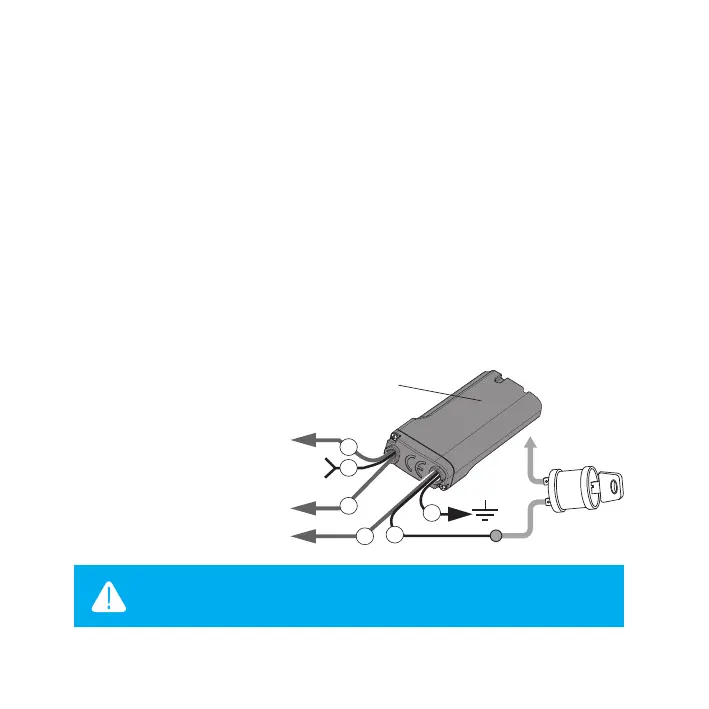

• Selectdesiredleveloftheprogrammingmenu6,7toprogramradiorelay№1,
№2 respectively.
• Connectwire1ofradiorelaytothegroundingspot.
Apply power (12V) to the contacts 3 and 4 of radio relay. The siren/Beeper will
confirm recording of radio relay to the system’s memory with 1 beep. Shortly press
VALET button to save settings.
After successful
recording of radio relay
switch off and insulate
contact 3, connect
contact 4 to any wire,
which has constant
voltage of 12V when
ignition is switched on.
2
5
1
4
3
NO
NC
COM
Programming
6
Aerial 2,4 GHz
+12V

WARINGNG! DO NOT PLACE RADIO RELAYS DIRECTLY ON ENGINE
