4–14
2. Open the jaw on the pickup roller, and remove it by pulling it in the direction
opposite to the cam.
4.3.12 Separator Component
When you have removed the pickup roller, remove the separator component.
Take caution to protect the spring from falling.
4.3.13 Transfer Roller

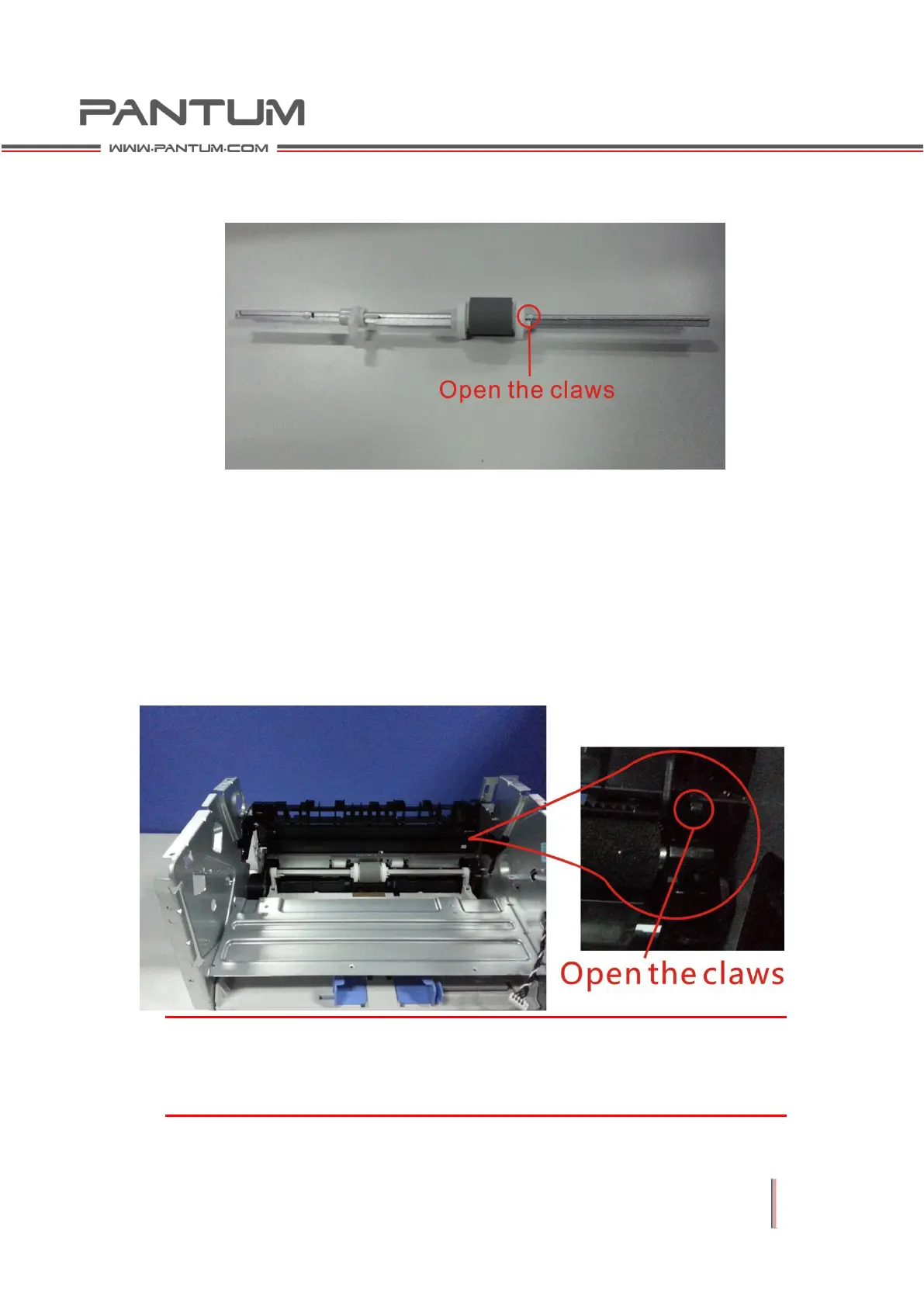

Open the claw as shown below, remove the bearing of the transfer roller and
remove the transfer roller.
Note:
When you remove the transfer roller, do not touch the transfer roller sponge to
avoid causing printing abnormalities.
To Next Page
