Pentair BOOST-RITE User Manual

11
BOOST-RITE
™
Universal Booster Pump Installation and User’s Guide
Performance Curves
FLOW RATE (US GPM)
0
20
40
60
80
100
120
140
160
180
200
0 2 4 6 8 10 12 14 16 18 20 22 24 26
TOTAL DYNAMIC HEAD ( FEET )
FLOWRATE ( US GPM )

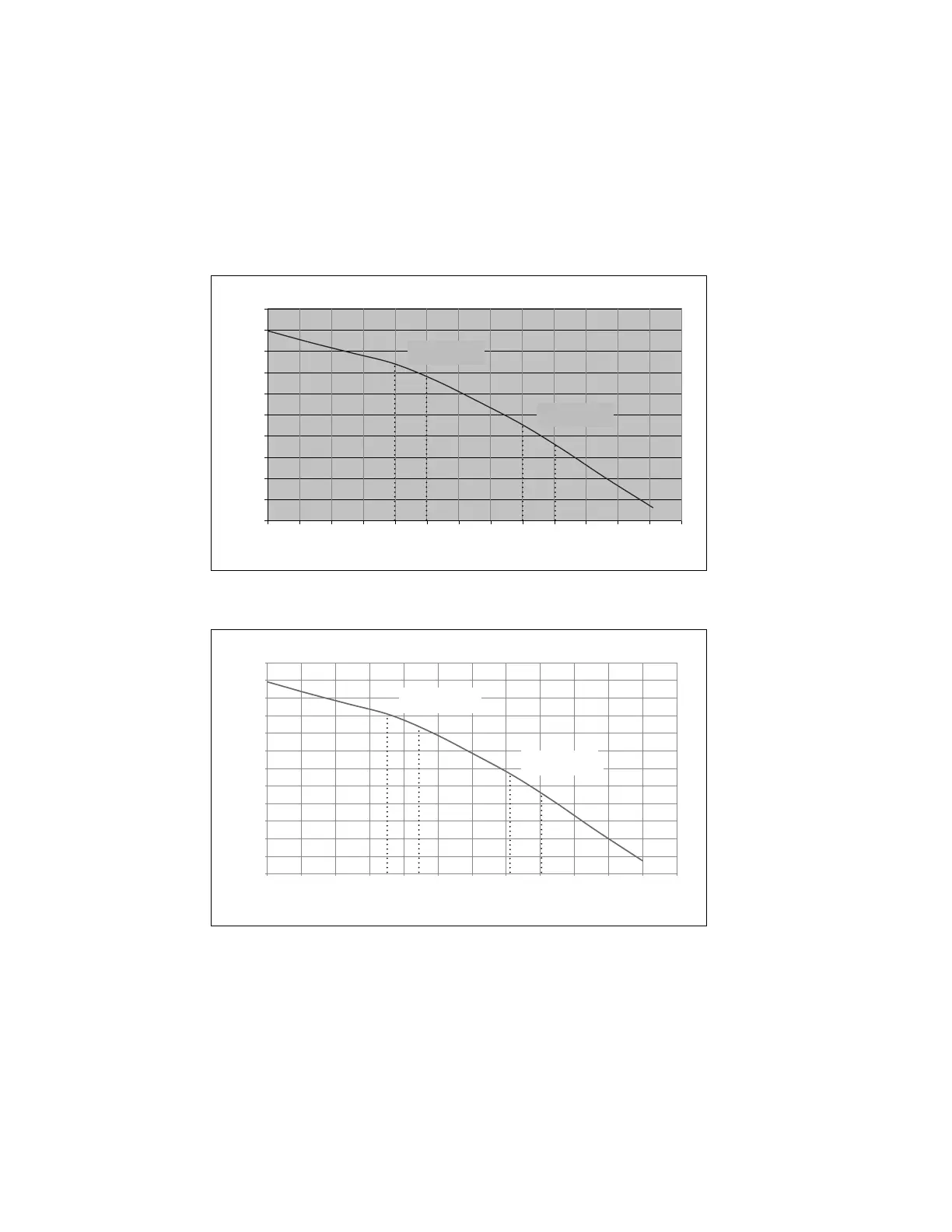

BOOST-RITE PUMP PERFORMANCE CURVE
TOTAL DYNAMIC HEAD (FEET)
Pressure Cleaners
Operating Range
Turbo
™
Cleaners
Operating Range
Boost-Rite
™
Universal Booster Pump Performance Curve
0
5
10
15
20
25
30
35
40
45
50
55
60
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
TOTAL DYNAMIC HEAD ( METERS )
VOLUMETRIC FLOWRATE ( CUBIC METERS PER HOUR )
BOOST-RITE PERFORMANCE CURVE P/N LA-MS05
60
55
50
45
40
35
30
25
20
15
10
5
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
TOTAL DYNAMIC HEAD (METERS)
VOLUMETRIC FLOW RATE (CUBIC METERS PER HOUR)
Boost-Rite
™
Booster Pump Performance Curve
Pressure Cleaners
Operating Range
Turbo
™
Cleaners
Operating Range
