Priming the Pump (continued)
10. Press ON/STOP to start the pump.
The pump will begin to prime (if enabled) and ramp up to the programmed priming speed.
11. When a steady stream of water appears from the air relief valve, close the valve.
12. Do not allow your pump to run longer than 30 minutes without successfully priming.
If the pump does not prime, check your priming settings or refer to TROUBLESHOOTING, page 19.
Pentair Home App Operation
Your IntelliFlo3 VSF or IntelliPro3 VSF pump is fully compatible with the Pentair Home app.
The Pentair Home app allows you to program and operate the pump from your smartphone. For instructions on how to
create an app account and operate your pump via the Pentair Home app, refer to the Pentair Home User's Guide (P/N
356088) provided with your pump.
Touchscreen Operation (if installed)
If you prefer to control your pump directly from the equipment pad, a touchscreen controller allows you to adjust pump
settings and program run schedules via a touchscreen mounted directly onto the pump drive. The following sections
provide instructions for using your touchscreen controller.
Some pump models do not include a touchscreen controller out-of-box, but a touchscreen can be added to any
IntelliFlo3 VSF or IntelliPro3 VSF pump. If you would like to add a touchscreen to your pump, Pentair oers a
Touchscreen Controller Kit (Almond - P/N 356159z, Black - P/N 356348z).
Pump Dashboard

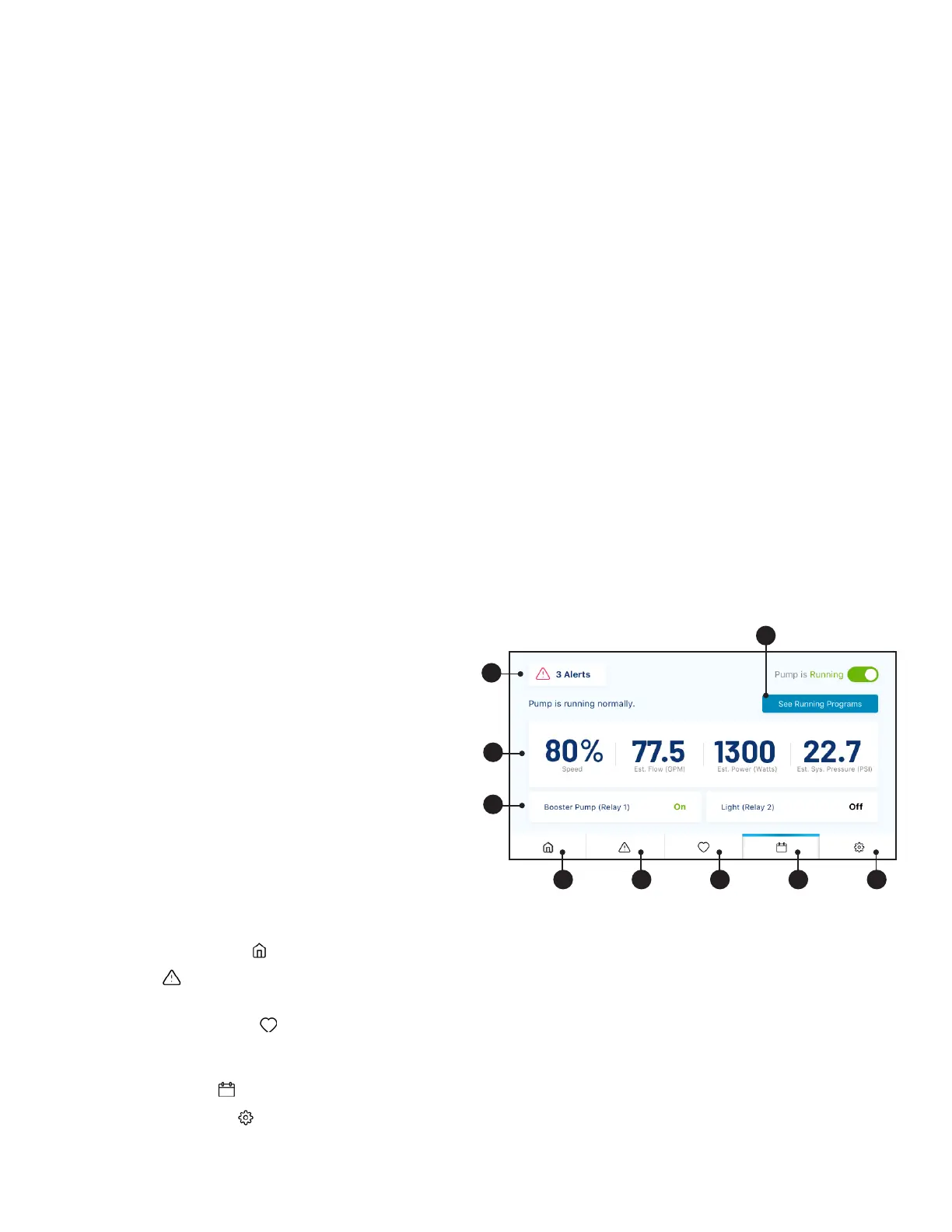

The Pump Dashboard is your pump's home screen. Basic pump info, run status and programming can be viewed from
this screen.
Pump alerts or other problems will also display on this
screen.
1− Active Alerts: Displays any active pump alerts
and/or warnings.
2− See Running Programs: View and edit your
pump's current programs. Refer to Program
Setup, page 8.
3− Current Run Data: Displays the current pump
state and program run data when the pump is
running.
4− Relay Device Status: Displays the status (ON/
OFF) of devices connected to the pump's 5A
and/or 16A relay terminals.
Note: Relay statuses will only display if the
optional Relay Control Board (P/N 356365z) is
installed.
5− Pump Dashboard ( ): Return to the Pump Dashboard (this screen) from any screen.
6− Alerts ( ): Display active pump alerts and warnings from any screen.
A dot to the right of the alert icon signies an active alert or warning.
7- Favorite Programs ( ): Display favorited programs from any screen.
A program can be favorited by tapping the Heart icon in the top right corner of a program editing screen.
Refer to Program Setup, page 8.
8- All Programs ( ): View and edit programs from any screen. Refer to Program Setup, page 8.
9- Device Settings ( ): View and edit device settings from any screen. Refer to Device Settings, page 9.
