INTELLIFLO3™ VSF / INTELLIPRO3™ VSF Variable Speed and Flow Pump Installation and Maintenance Guide
Program Setup
Pump Dashboard ˃ All Programs > Program
Setup
Programs can be individually set and edited from
the All Programs screen, accessed from the Pump
Dashboard.

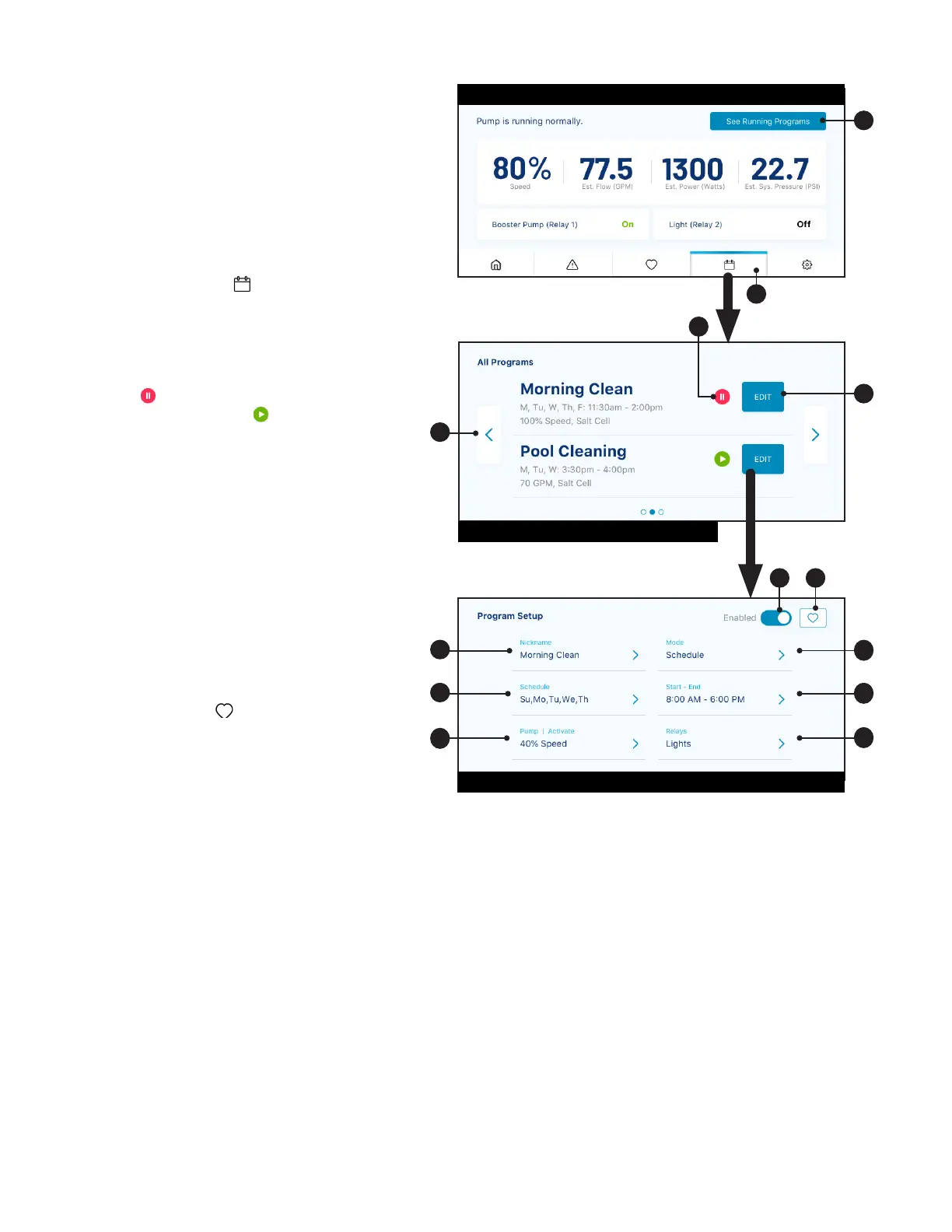

PUMP DASHBOARD SCREEN
1− See Running Programs: View and edit all
enabled pump programs.
Opens the See Running Programs screen.
2− All Programs Icon ( ): View and edit any
enabled or disabled pump program.
Opens the All Programs screen.
ALL PROGRAMS SCREEN
3− Pause/Run-Now Buttons: Tap the Pause
Button ( ) to pause a running program.
Tap the Run-Now Icon ( ) to manually start a
program.
4− Edit Program: Edit or view a particular
program.
Opens the Program Setup screen.
5− Scroll Programs: Scroll through both enabled
and disabled programs currently programmed
for the pump.
PROGRAM SETUP SCREEN
6− Enable/Disable Program: Enable or disable
the program currently being edited.
7− Favorite Program: Add/remove programs to
or from your list of favorites. The program
will show up in your list of favorited programs
accessed via the ( ) icon.
8− Nickname: Set the program nickname. This
will be the name the program displays on
the See All Programs and Pump Dashboard
screens.
9− Schedule: Set which days of the week the
program will activate the pump.
Note: This option will only appear when editing a Schedule program.
Note: If setting a Timer program, "Schedule" will be replaced by "Timer".
10− Pump | Activate: Set the speed or ow that a program will run when activated.
11− Mode: Select which type of program you wish to setup.
MANUAL and TIMER programs will not resume after they are overridden by another program or manually
stopped by the user.
• Manual: The program will only run, at the set speed or ow, when manually activated.
• Timer: The program will only run, at the set speed or ow and duration, when manually activated.
• Schedule: The program will run on the days and times, and at the speed or ow, that are programmed.
12− Start - End: Set the time of day, on the days of the week, that a Schedule program will activate and
deactivate the pump.
Note: This option will only appear when editing a Schedule program.
13−Relays: Set which relay devices will activate when the program is running.
Note: This option will only display if the optional Relay Control Board (P/N 356365z) is installed.
5
4
3
"ALL PROGRAMS" SCREEN
7
8
9
6
11
12
13
10
"PROGRAM SETUP" SCREEN
1
"PUMP DASHBOARD" SCREEN
2
